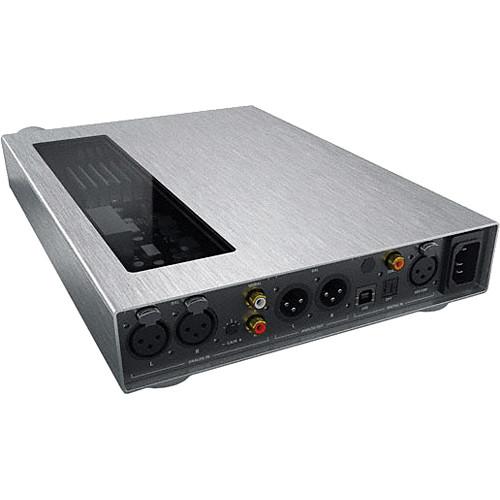

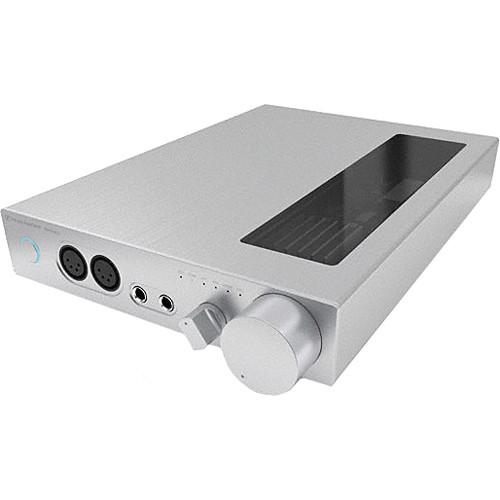

User Manual for Sennheiser HDVD 800 Headphone Amplifier with Integrated DAC Click to enlarge the picture
Contents of the user manual for the Sennheiser HDVD 800 Headphone Amplifier with
- Product category: Headphone Amplifiers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headphone Amplifiers
 |
User manual for the Sennheiser HDVD 800 Headphone Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The HDVD 800 Headphone Amplifier with Integrated DAC from Sennheiser is designed to provide accurate audio playback to your headphones from either analog or digital sources. It features an integrated Burr-Brown DAC that is capable of converting digital audio in resolutions up to 192 kHz/24-bit from its XLR AES/EBU, USB, or optical and coaxial S/PDIF digital inputs. On the analog side, the HDVD 800 has balanced XLR and unbalanced RCA inputs. It supports 4 pairs of headphones, with connections for 2 balanced pairs and 2 unbalanced pairs. - D/A conversion for all common formats up to 24 bit / 192 kHz
- D/A converter can be used for CD and DVD players
- AES/BU, S/PDIF, USB inputs
- Balanced (XLR) and unbalanced (RCA) analog inputs
- Outputs for 4 sets of headphones, 2 balanced, 2 unbalanced
UPC: 615104229716 In the Box Sennheiser HDVD 800 Headphone Amplifier with Integrated DAC Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HDVD 800 Headphone Amplifier with Integrated DAC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser HDVD800 Specs | | | Maximum Input Voltage | XLR: 14 dBV, (balanced, eff)
RCA: 20 dBV (eff) | | Input Impedance | XLR: 10 kΩ
RCA: 10 kΩ | | | | Sampling Frequency | RCA S/PDIF: 192 kHz/24-bit (AES3 compatible), maximum
TosLink S/PDIF: 192 kHz/24-bit (AES3 compatible), maximum
AES/EBU XLR3: 192 kHz/24-bit (AES3 compatible), maximum | | USB | Connector: USB 2.0/3.0
USB Audio Class: USB Audio 2.0 | | | | Frequency Response | 0.3 Hz to 100 kHz (-3 dB) | | Total Harmonic Distortion | < 0.001 % | | | | Dimensions (W x H x D) | 8.8 x 1.7 x 12" (224 x 44 306 mm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 15.276 x 10.945 x 3.15" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
