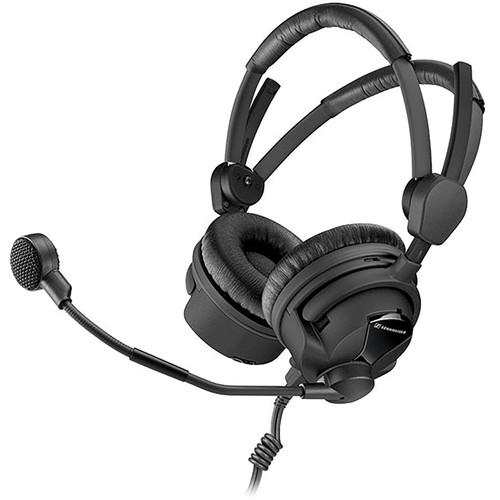

User Manual for Sennheiser HMD 26-II-100 Professional Broadcast Headset with Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser HMD 26-II-100 Professional Broadcast Headset
- Product category: Headsets Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headsets
|
User manual for the Sennheiser HMD 26-II-100 Professional Broadcast Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser HMD 26-II-100 Professional Broadcast Headset is designed for demanding broadcast applications in the studio or outdoors. The lightweight design offers extra-soft cushions and headband padding for long-lasting comfort during long production days. The closed-back supra-aural ear cups provide high SPL with solid passive noise attenuation. The HMD 26-II features an ActiveGard limiter, which provides protection for sudden volume peaks above 105 dB and can be activated or deactivated.
The integrated dynamic hypercardioid microphone features professional acoustic performance, reliable noise suppression, and a shock-mounted capsule for absorbing structure bone noise. The short, flexible part of the boom ensures the correct positioning of the microphone. The Sennheiser HMD 26-II-100 is compatible with a wide variety of optional accessories and includes a cable clip, large headband padding, and a wind/pop screen. Note: These headphones do not include a cable, which is required for operation -
- Lightweight with extra-soft cushions for excellent wearing comfort
- Accurate and linear sound reproduction for professional Radio and TV applications
- Microphone provides audio transmission in broadcast quality
- ActiveGard (on/off switch) for protected hearing
- Reliable performance over long lifetime for safe investments
- Swiveling ear cap for single sided listening
- Microphone can be worn either on right- or left-hand side
- Modular concept of different optional cables and cushions for highest flexibility
UPC: 615104246423 In the Box Sennheiser HMD 26-II-100 Professional Broadcast Headset with Dynamic Microphone (No Cable) Cable Clip Large Headband Padding Wind / Pop Screen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMD 26-II-100 Professional Broadcast Headset with Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 505771 Specs | | | Transducer Principle | Dynamic, closed | | Ear Coupling | Supra-aural | | Frequency Response | 20 Hz to 18 kHz | | Impedance | 50 Ohms mono / 100 Ohms stereo | | Characteristic SPL | ActiveGard Switched On: 105 dB SPL at 1 kHz, 1 mW
ActiveGard Switched Off: 115 dB SPL at 1 kHz, 1 V | | Maximum SPL | ActiveGard Switched On: 105 dB SPL at 1 kHz
ActiveGard Switched Off: 128 dB SPL at 1 kHz, 200 mW | | THD | < 0.5% at 1 kHz | | Contact Pressure | 3.9 N | | Ear Coupling | Supra-aural | | | | Type | BMD 424 | | Transducer Principle | Dynamic, noise-compensating, hypercardioid | | Frequency Response | 40 Hz to 16 kHz | | Output Voltage | 0.4 mV/Pa at 1 kHz | | Impedance | 300 Ohms | | | | Temperature | Operation: 5 to 131°F / -15 to 55°C
Storage: -67 to 158°F / -55 to 70°C | | Weight | 7.1 oz / 200.0 g |
