User Manual for Sennheiser HMD 26-II-600-8 Dynamic Broadcast Headset Click to enlarge the picture
Contents of the user manual for the Sennheiser HMD 26-II-600-8 Dynamic Broadcast Headset
- Product category: Headsets Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headsets
|
User manual for the Sennheiser HMD 26-II-600-8 Dynamic Broadcast Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

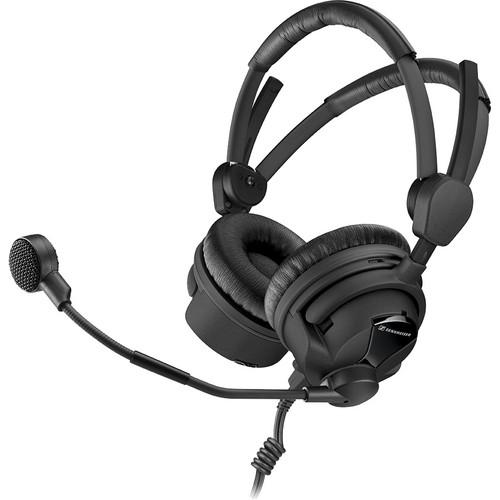

Product description Make your voice heard with the Sennheiser HMD 26-II-600-8 Dynamic Broadcast Headset. Suitable for use in the studio or the field, this lightweight headset features extra-soft ear cushions and headband padding for comfort during extended periods of use. The stereo supra-aural headphones have a closed-back design and are designed for high maximum sound-pressure level as well as passive noise attenuation. The ActiveGard limiter can be turned on or off by the user to protect their ears from sudden volume spikes above 105 dB. For single-sided listening, the microphone-free earcup can be flipped backwards.
Intended for use in loud environments, the dynamic hypercardioid-patterned microphone suppresses extraneous noise and has a shockmounted capsule to reduce structure-borne noise. A flexible section of the boom lets you adjust the positioning of the microphone, and the entire boom assembly rotates for use on the left or right side of the user's head. The ear cushions and headband padding is modular and replaceable, as is the included cable. This 4.9' steel wire cable has a coiled section to reduce noise as well as unterminated connections, which allow you to use the connector of your choosing. UPC: 615104246393 In the Box Sennheiser HMD 26-II-600-8 Dynamic Broadcast Headset Steel Wire Cable Cable Clip Wind/Pop Screen Headband Padding, Large Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMD 26-II-600-8 Dynamic Broadcast Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser HMD26-II-600-8 Specs | | | Transducer | Dynamic, closed | | Ear Coupling | Supra-aural | | Frequency Response | 20 Hz to 18 kHz | | Impedance | Mono: 300 ohms
Stereo: 600 ohms | | SPL | Characteristic: 105 dB SPL at 1 kHz, 1 mW
107 dB SPL at 1 kHz, 1 V
Maximum: ActiveGard switched on: 105 dB SPL at 1 kHz
ActiveGard switched off: 127 dB SPL at 1 kHz, 200 mW | | Total Harmonic Distortion (THD) | < 0.5% at 1 kHz) | | Contact Pressure | Approximately 3.9 N | | | | Type | BMD 424 | | Transducer | Dynamic, noise compensating, hypercardioid | | Frequency Response | 40 Hz to 16 kHz | | Output Voltage | 0.4 mV/Pa at 1 kHz | | Impedance | 300 ohms | | | | Operating Temperature | 5 to 131°F (-15 to 55°C) | | | | Dimensions | Not specified by manufacturer | | Weight | Approximately 7.05 oz (200 g) without cable | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.9 x 7.4 x 3.3" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
