User Manual for Sennheiser HMD 27 Professional Broadcast Headset Click to enlarge the picture
Contents of the user manual for the Sennheiser HMD 27 Professional Broadcast Headset
- Product category: Headsets Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headsets
 |
User manual for the Sennheiser HMD 27 Professional Broadcast Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

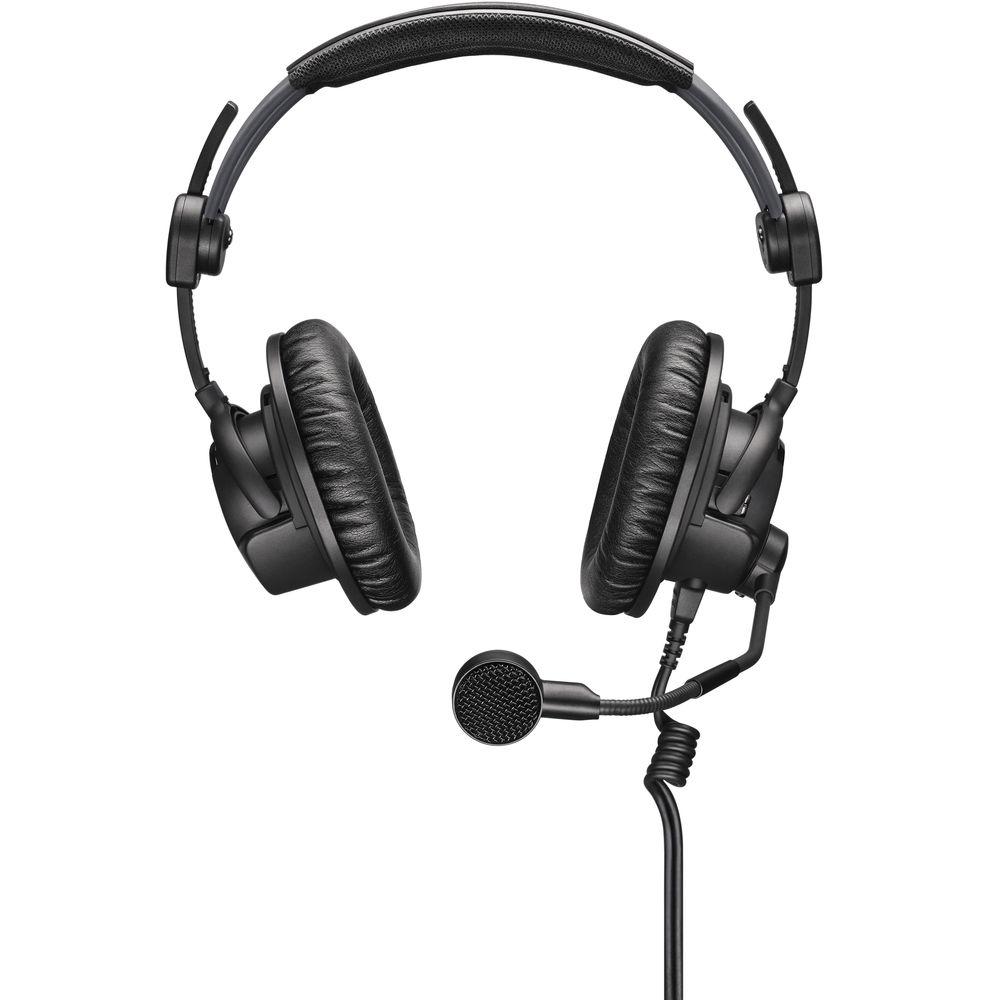

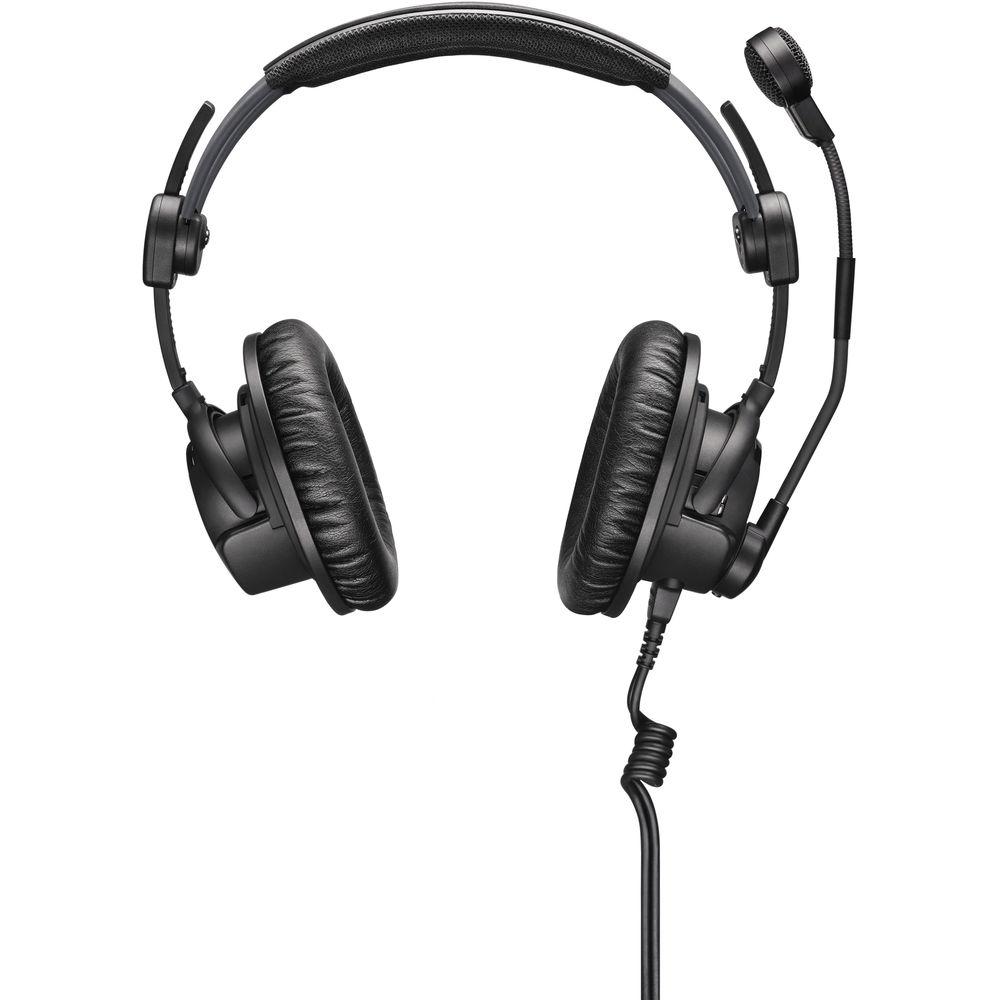

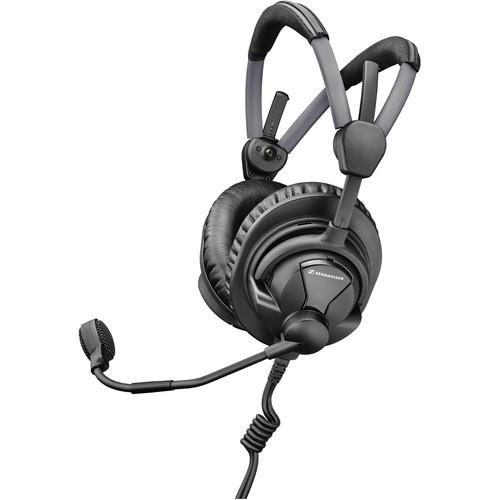

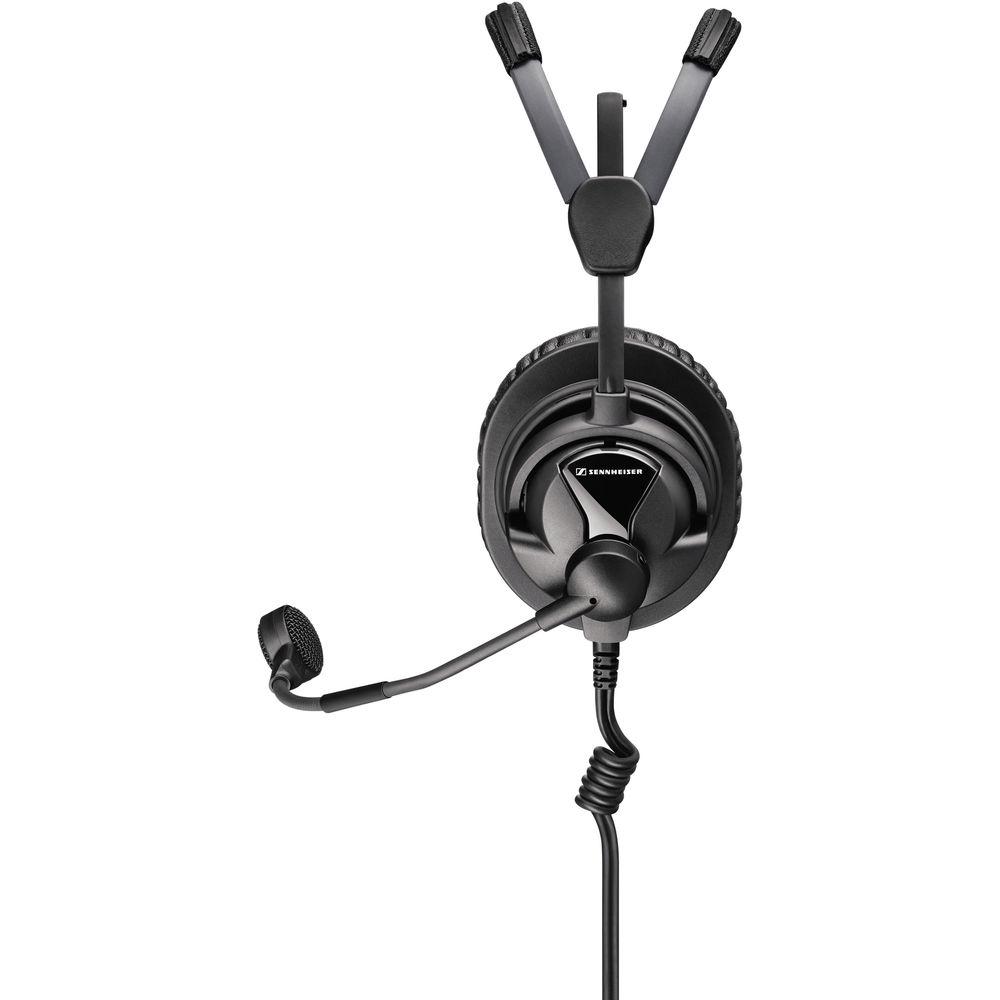

Product description The HMD 27 Professional Broadcast Headset (No Cable) from Sennheiser is a closed, circumaural ear-cup design that provides high-passive attenuation, which is lightweight and comfortable over long working hours. It can be used by broadcast commentators and audio engineers for the highest broadcast quality even in noisy environments. Featuring ActiveGard for protected hearing against noise peaks above 110 dB, the headset has soft earcups, swiveling ear caps for single-sided listening, and a dynamic microphone that can be worn on either the right or the left-hand side. It also comes with a headband padding that converts the two-piece headband to a compact single piece. In addition, a headset-connection cable is not included and must be purchased separately. - Highest wearing comfort due to the lightweight circumaural design and the splitted headband (no pressure on the sensitive fontanelle)
- Accurate and linear-sound reproduction for very demanding monitoring
- The dynamic microphone, which stands out due to a strong and powerful sound pattern for an audio transmission in the highest broadcast quality even in noisy environments
- ActiveGard (on/off switch) for protected hearing against noise peaks > 110 dB
- Modular concept of different cables and boom arms to offer highest flexibility
- Cables of the cable 26-II series are compatible
- Swiveling ear cap for single-sided listening
- Microphone can be worn either on right or left hand side
- Wide headband padding is included that converts the two-piece headband into a compact single piece
UPC: 615104272217 In the Box Sennheiser HMD 27 Professional Broadcast Headset (No Cable) Large Headband Padding Wind and Pop Screen Cable Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMD 27 Professional Broadcast Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser HMD 27 Specs | Impedance | 64 Ohms | | Frequency Response | 8 Hz to 18 kHz (headphones) | | Maximum Sound Pressure Level (SPL) | ActiveGard Limiter off: 128 dB SPL @ 1 kHz
ActiveGard Limiter on: 110 dB SPL @ 1 kHz | | Contact Pressure | Approximately 3.3N | | Ear Coupling | Circumaural | | Maximum Sound Pressure Level (SPL) | 128 dB SPL @ 1 kHz (passive) | | ActiveGard | 110 dB SPL @ 1 kHz | | Distortion | < 0.1% @ 1 kHz, 100 dB SPL | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.1 x 7.2 x 3.6" |
