User Manual for Sennheiser HMD 300 Pro Headset with Boom Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser HMD 300 Pro Headset with
- Product category: Headsets Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headsets
 |
User manual for the Sennheiser HMD 300 Pro Headset with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

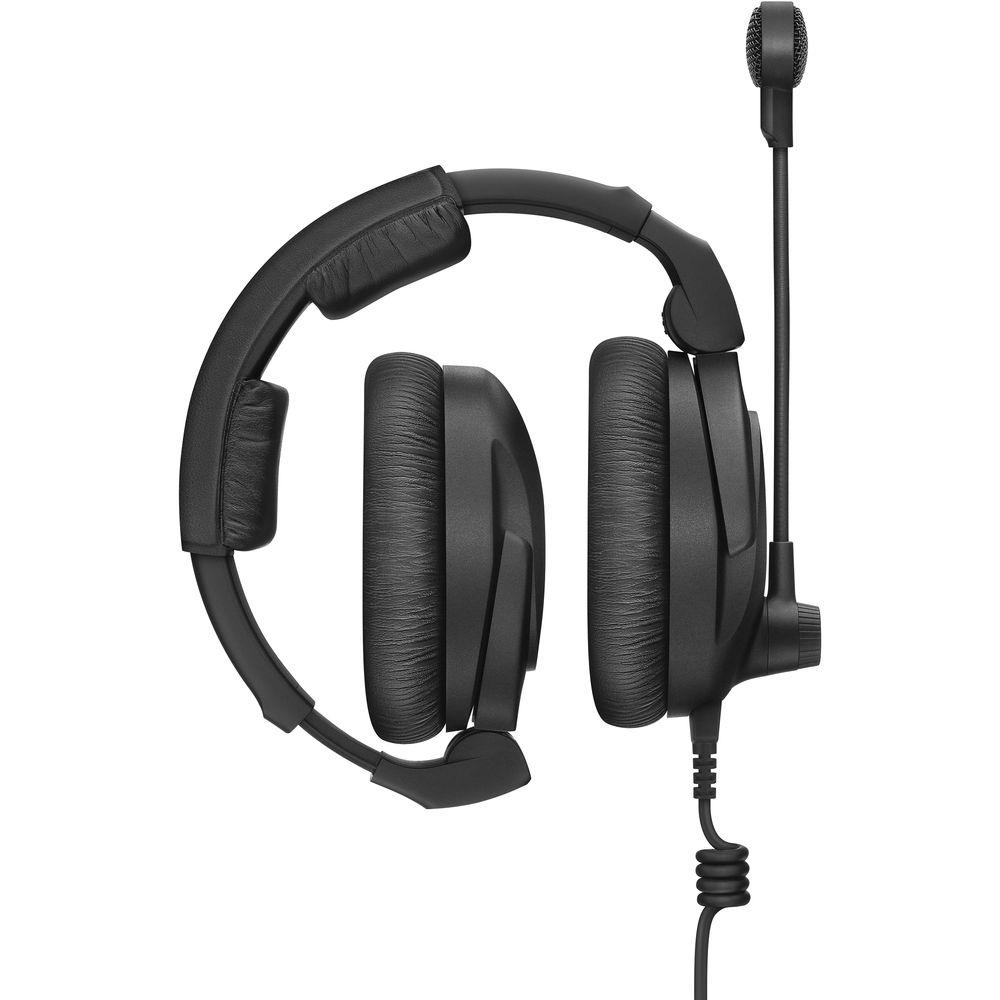

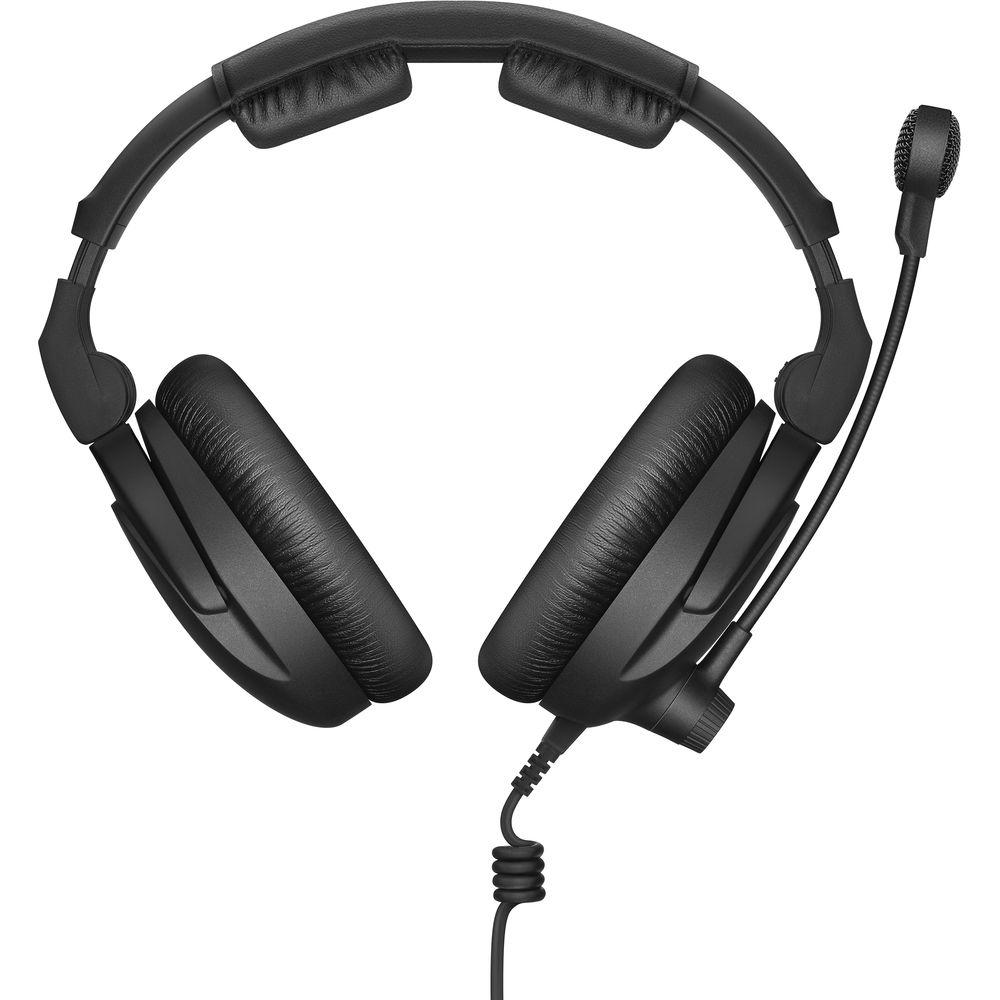

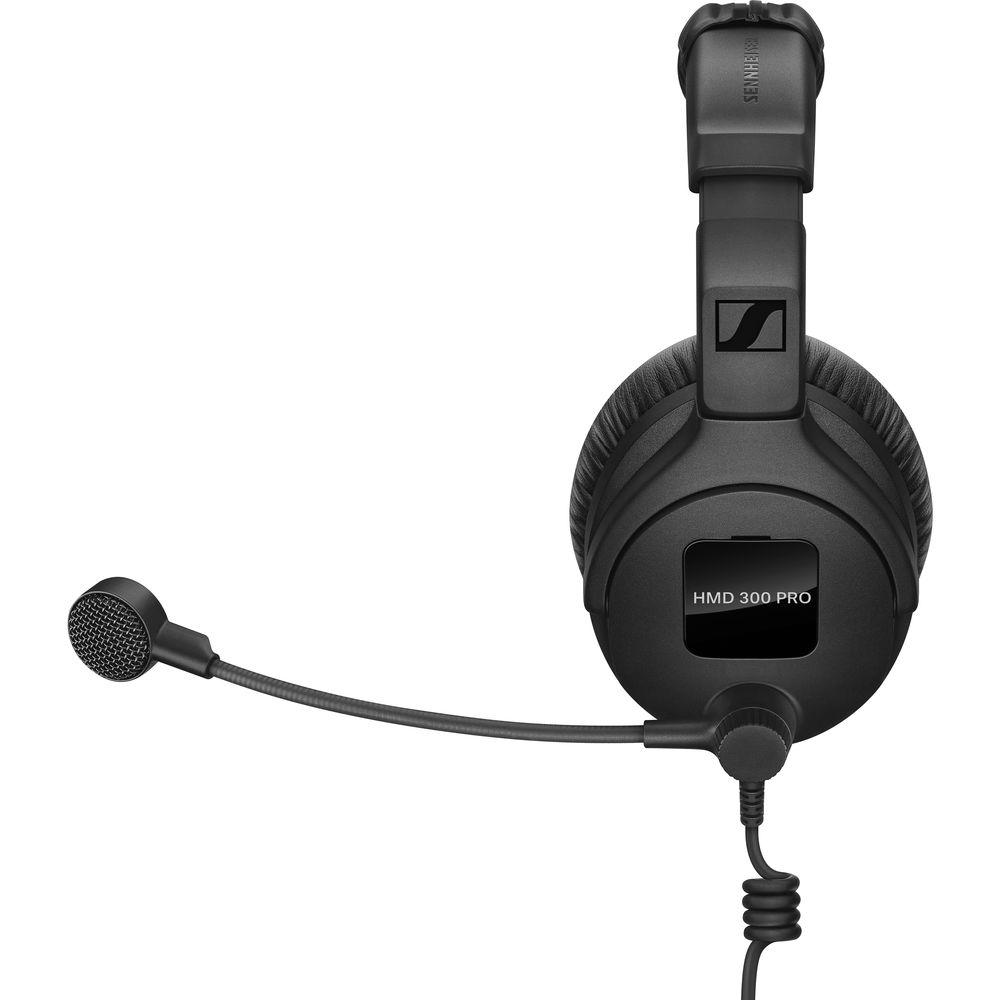

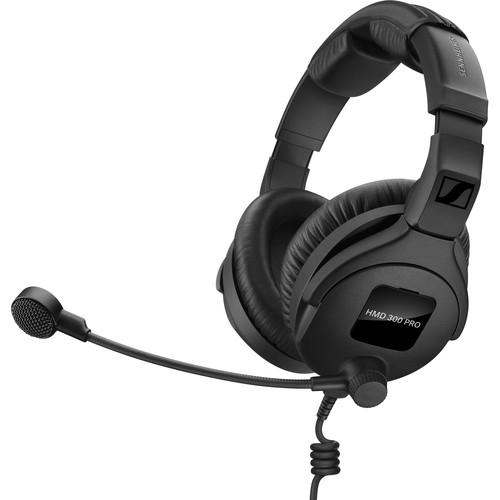

Product description The Sennheiser HMD 300 PRO is a closed-back, circumaural communications headset with a sonic design based on the HD 250 linear headphones, giving you a detailed, linear response. The headset features a comfortable construction with split-headband padding to remove pressure from sensitive areas of the head.
With a frequency response of 60 Hz to 25 kHz, the headphones provide clear reproduction of audio, doing so while offering up to 32 dB of passive noise reduction. The headset offers a dynamic boom microphone, one that delivers a hypercardioid polar pattern for focusing on vocals, and a frequency range centered around picking up the human voice in communication settings (80 Hz to 16 kHz). You can adjust the gain of the microphone in 5 dB steps over a range of 45 dB in total.
The headband supporting the unit's earcups is rugged, bendable, and twistable, and the boom can be worn on either side of the headset. To preserve your hearing, the headset features a switchable noise-protection mode called ActiveGard that protects against sudden bursts of sound without interrupting the signal.
The HMD 300 Pro sports a modular cable design to accommodate multiple pin-outs and configurations. Though no cable is included with the headset, each of the compatible cables sport a design that minimizes handling noise; this is achieved with a small series of coils on the cable approach that decouple the cable from the headset. - ActiveGard Technology
-
- This sound compression system consists of an electrical circuit incorporated into analogue headsets.
- Compression technology removes the energy from an excessive incoming signal transmitted through the communication system, leaving the signal free of distortion.
- The ActiveGard circuit can be compared to an automatic and fast-working “intelligent” volume control. If an incoming signal rises to a level that is harmful to your hearing, it is instantly “turned down” to a lower, more comfortable level.
- When the incoming signal returns to safe levels, ActiveGard reverts to its stand-by surveillance mode and volume is restored to its original level.
- Key Features at a Glance
-
- Switchable ActiveGard mode for hearing protection
- Linear sound reproduction optimized for speech intelligibility
- Microphone can be worn either on right or left side
- Comfortable padding design allows for extended use in long wearing sessions
- Passive ambient noise attenuation due to closed earcup construction
- Foldable earcup design
UPC: 615104272194 In the Box Sennheiser HMD 300 Pro Headset with Boom Microphone (Without Cable) Wind and Pop Screen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMD 300 Pro Headset with Boom Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser HMD 300 Pro Specs | | | Driver Type | Dynamic | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 60 Hz to 25 kHz | | Sensitivity | 108 dB at 1 kHz | | Impedance | 64 Ohms | | Maximum Sound Pressure Level (SPL) | 123 dB at 1 kHz 110 SPL with ActiveGard on | | Maximum Power Handling | 500 mW | | Active Noise Cancellation | No | | Noise Attenuation | Up to 32 dB | | Foldable | Yes | | Contact Pressure | 6.0 N | | | | Type | Dynamic | | Pickup Pattern | Cardioid Hypercardioid | | Frequency Response | 80 Hz to 16 kHz | | Impedance | 300 Ohms | | Design | Single-Sided | | Color | Black | | Detachable | Yes | | In-Line Remote/Microphone | No Boom headset microphone | | | | Weight | 0.70 lb / 319 g without Cable | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.6 x 7.5 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
