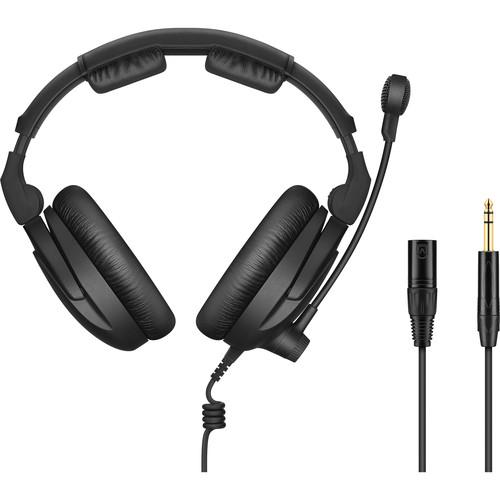

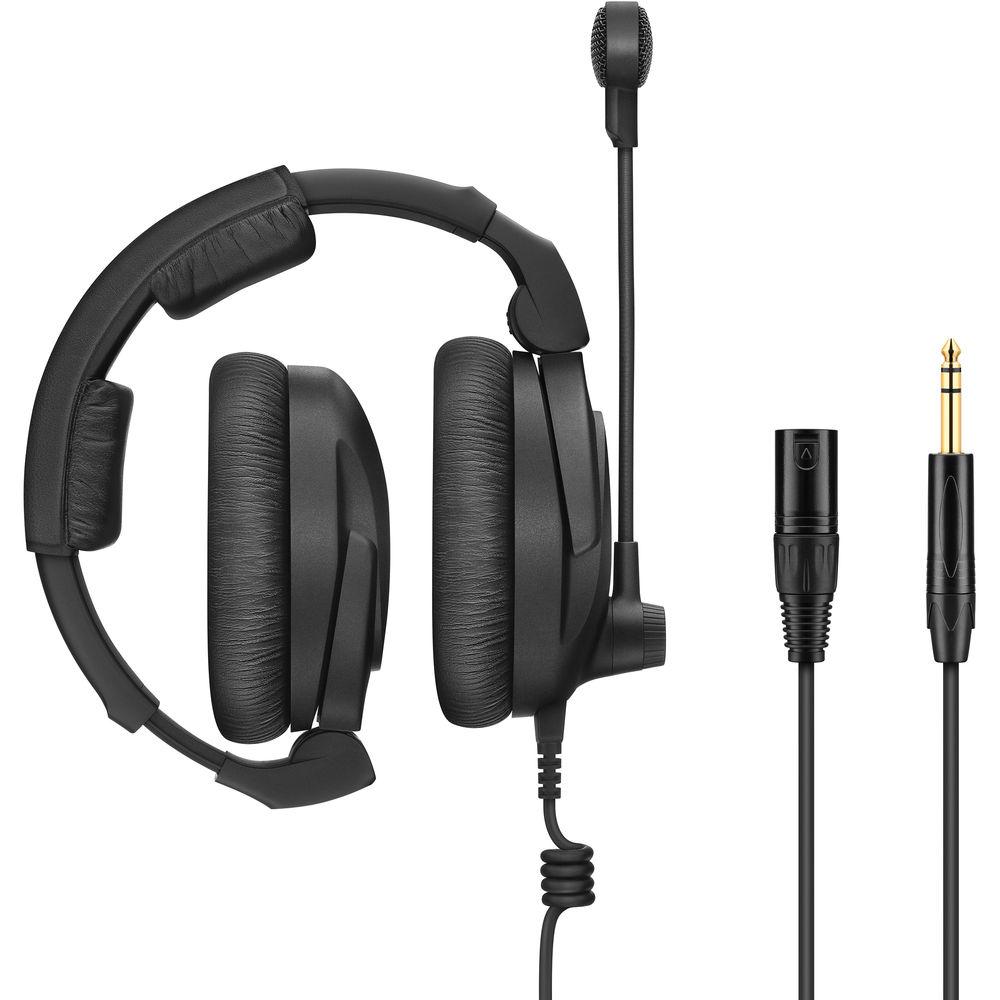

Product description The Sennheiser HMD 300 XQ-2 is comprised of the HMD 300 Pro communications headset and the Cable-II-X3K1-Gold headset cable. The headset's closed-back, over-ear design provides up to 32 dB of passive noise attenuation while the padded headband and earcups ensure comfortable wearing. The detachable 6.6' straight cable features a coiled section to mitigate handling noise. It utilizes copper wiring and is terminated with gold-plated XLR 3-pin and 1/4" jacks. - HMD 300 Pro Headset with Boom Microphone (Without Cable) The Sennheiser HMD 300 PRO is a closed-back, circumaural communications headset with a sonic design based on the HD 250 linear headphones, giving you a detailed, linear response. The headset features a comfortable construction with split-headband padding to remove pressure from sensitive areas of the head.
With a frequency response of 60 Hz to 25 kHz, the headphones provide clear reproduction of audio, doing so while offering up to 32 dB of passive noise reduction. The headset offers a dynamic boom microphone, one that delivers a hypercardioid polar pattern for focusing on vocals, and a frequency range centered around picking up the human voice in communication settings (80 Hz to 16 kHz). You can adjust the gain of the microphone in 5 dB steps over a range of 45 dB in total.
The headband supporting the unit's earcups is rugged, bendable, and twistable, and the boom can be worn on either side of the headset. To preserve your hearing, the headset features a switchable noise-protection mode called ActiveGard that protects against sudden bursts of sound without interrupting the signal.
The HMD 300 Pro sports a modular cable design to accommodate multiple pin-outs and configurations. Though no cable is included with the headset, each of the compatible cables sport a design that minimizes handling noise; this is achieved with a small series of coils on the cable approach that decouple the cable from the headset. - ActiveGard Technology
-
- This sound compression system consists of an electrical circuit incorporated into analogue headsets.
- Compression technology removes the energy from an excessive incoming signal transmitted through the communication system, leaving the signal free of distortion.
- The ActiveGard circuit can be compared to an automatic and fast-working “intelligent” volume control. If an incoming signal rises to a level that is harmful to your hearing, it is instantly “turned down” to a lower, more comfortable level.
- When the incoming signal returns to safe levels, ActiveGard reverts to its stand-by surveillance mode and volume is restored to its original level.
- Key Features at a Glance
-
- Switchable ActiveGard mode for hearing protection
- Linear sound reproduction optimized for speech intelligibility
- Microphone can be worn either on right or left side
- Comfortable padding design allows for extended use in long wearing sessions
- Passive ambient noise attenuation due to closed earcup construction
- Foldable earcup design

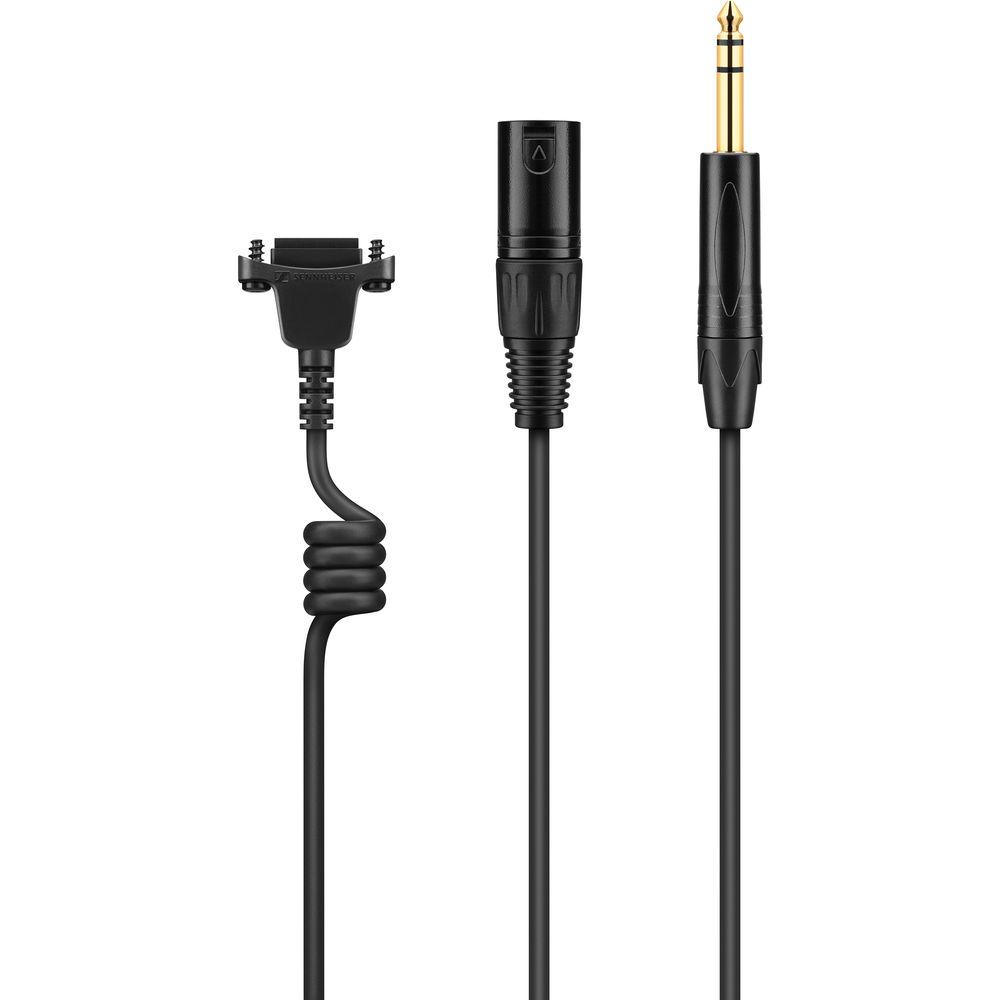

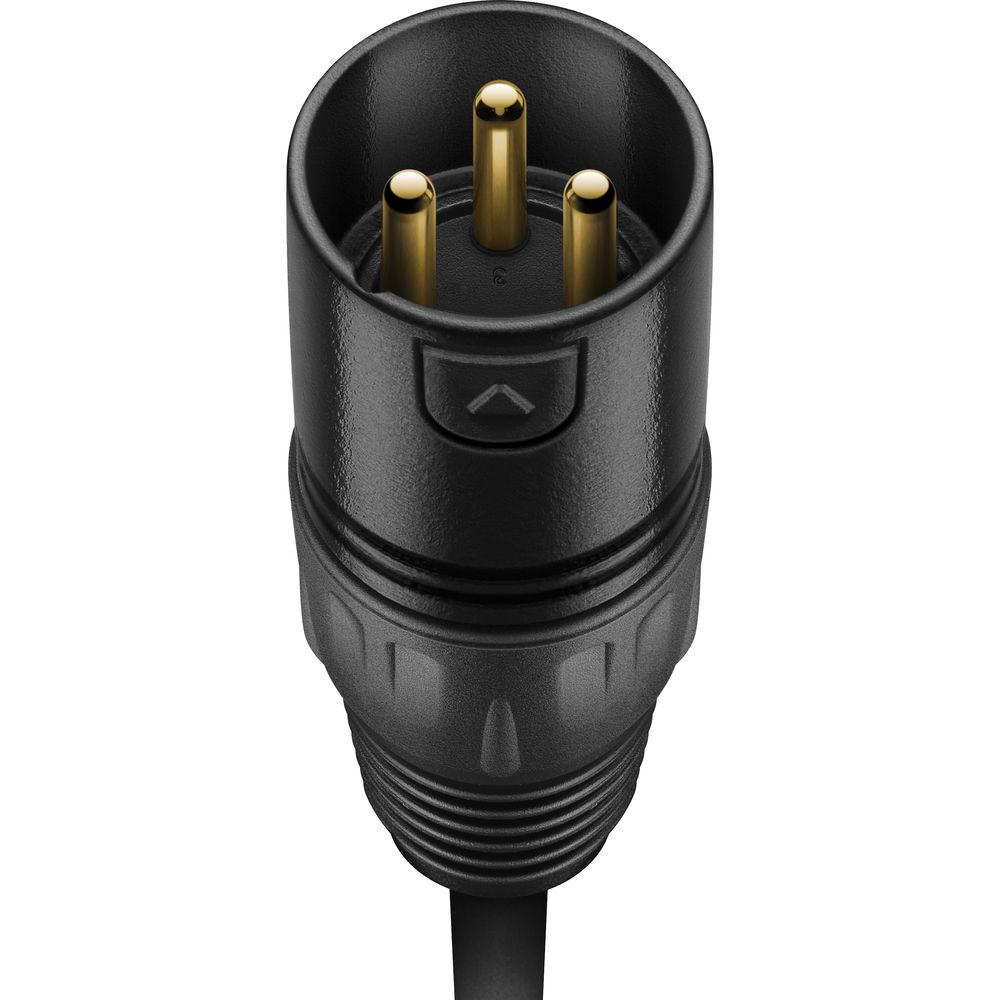

UPC: 615104272194 - Cable-II-X3K1-Gold Straight Cable with XLR & 1/4" Connectors for HMD Headsets (6.6') The 6.6' Sennheiser Cable-II-X3K1-Gold is a straight copper cable with XLR and 1/4" connectors designed for use with select Sennheiser HMD and HME headsets in broadcast and communications applications. With a proprietary connector at the headset end and XLR 3-pin and 1/4" jacks at the other, it is compatible with HMD 300/301 Pro, HMD/HME 26-II, and HMD/HME 27 Pro headsets.It utilizes copper wire and gold-plated contacts to enhance conductivity while maintaining a flexible shield. A coiled section reduces handling noise and the aramid reinforcement delivers increased durability.
- Compatible with HMD 300 Pro, HMD 301 Pro, HMD 26-II, HME 26-II, HMD 27 Pro, and HME 27 Pro headsets
- Straight copper cable with coiled segment to eliminate structure-born noise
- Reinforced with aramid for improved durability
- Softer shield enhances flexibility
UPC: 615104321717 In the Box Bundle Items HMD 300 Pro Headset with Boom Microphone (Without Cable) swsrqztsccsdwfdxtqsateezswtbbq Cable-II-X3K1-Gold Straight Cable with XLR & 1/4" Connectors for HMD Headsets (6.6') Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMD 300 XQ-2 Headset with Boom Microphone & Cable with XLR and 1 4" Jacks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HMD 300 Pro Headset with Boom Microphone (Without Cable)
| | | Driver Type | Dynamic | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 60 Hz to 25 kHz | | Sensitivity | 108 dB at 1 kHz | | Impedance | 64 Ohms | | Maximum Sound Pressure Level (SPL) | 123 dB at 1 kHz 110 SPL with ActiveGard on | | Maximum Power Handling | 500 mW | | Active Noise Cancellation | No | | Noise Attenuation | Up to 32 dB | | Foldable | Yes | | Contact Pressure | 6.0 N | | | | Type | Dynamic | | Pickup Pattern | Cardioid Hypercardioid | | Frequency Response | 80 Hz to 16 kHz | | Impedance | 300 Ohms | | Design | Single-Sided | | Color | Black | | Detachable | Yes | | In-Line Remote/Microphone | No Boom headset microphone | | | | Weight | 0.70 lb / 319 g without Cable | | | | Box Dimensions (LxWxH) | 9.6 x 7.5 x 3.4" | - Cable-II-X3K1-Gold Straight Cable with XLR & 1/4" Connectors for HMD Headsets (6.6')
| Compatible Headsets | HMD 300/301 Pro
HMD/HME 26-II
HMD/HME 27 Pro | | Construction Material | Copper cable
Aramid reinforcement
Gold-plated contacts | | Connector 1 | Proprietary connector with attachment screws | | Connector 2 | XLR 3-pin male | | Connector 3 | 1/4" TRS male | | Cable Length | 6.6' / 2 m | | Weight | 3.7 oz / 106 g | | | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 0.5" |
