User Manual for Sennheiser HMDC 27 Professional Broadcast Headset and Cable with NoiseGard Click to enlarge the picture
Contents of the user manual for the Sennheiser HMDC 27 Professional Broadcast Headset
- Product category: Headsets Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headsets
 |
User manual for the Sennheiser HMDC 27 Professional Broadcast Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

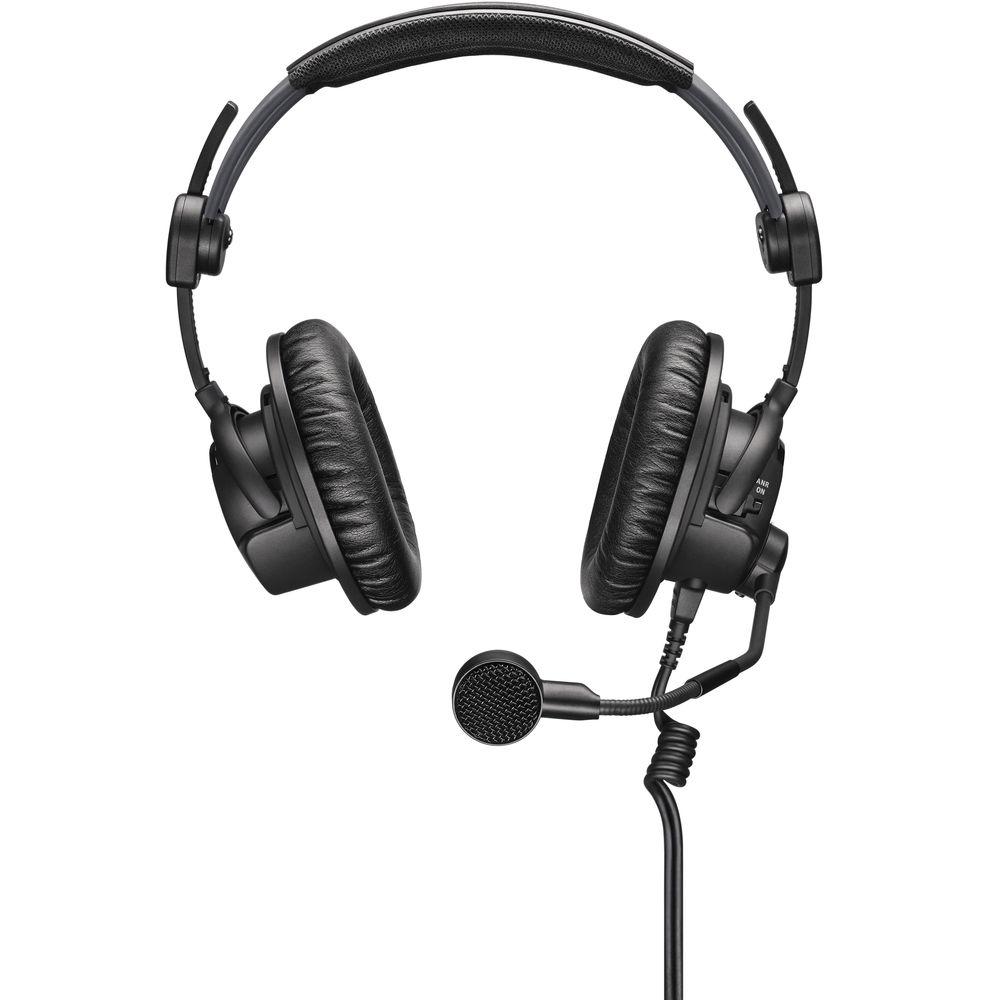

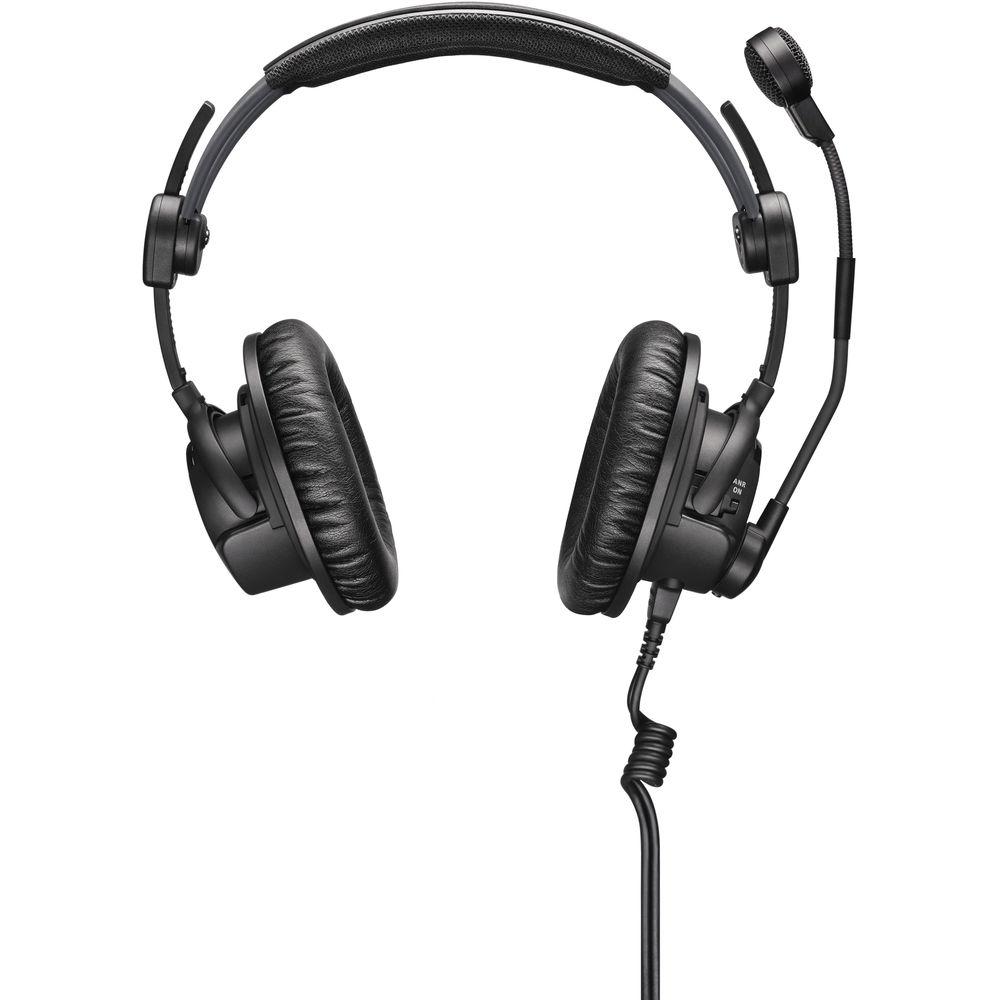

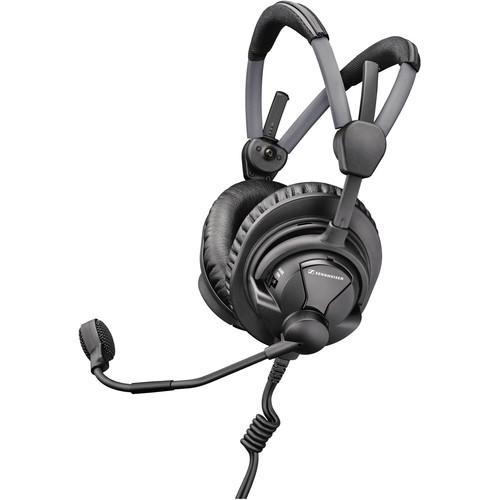

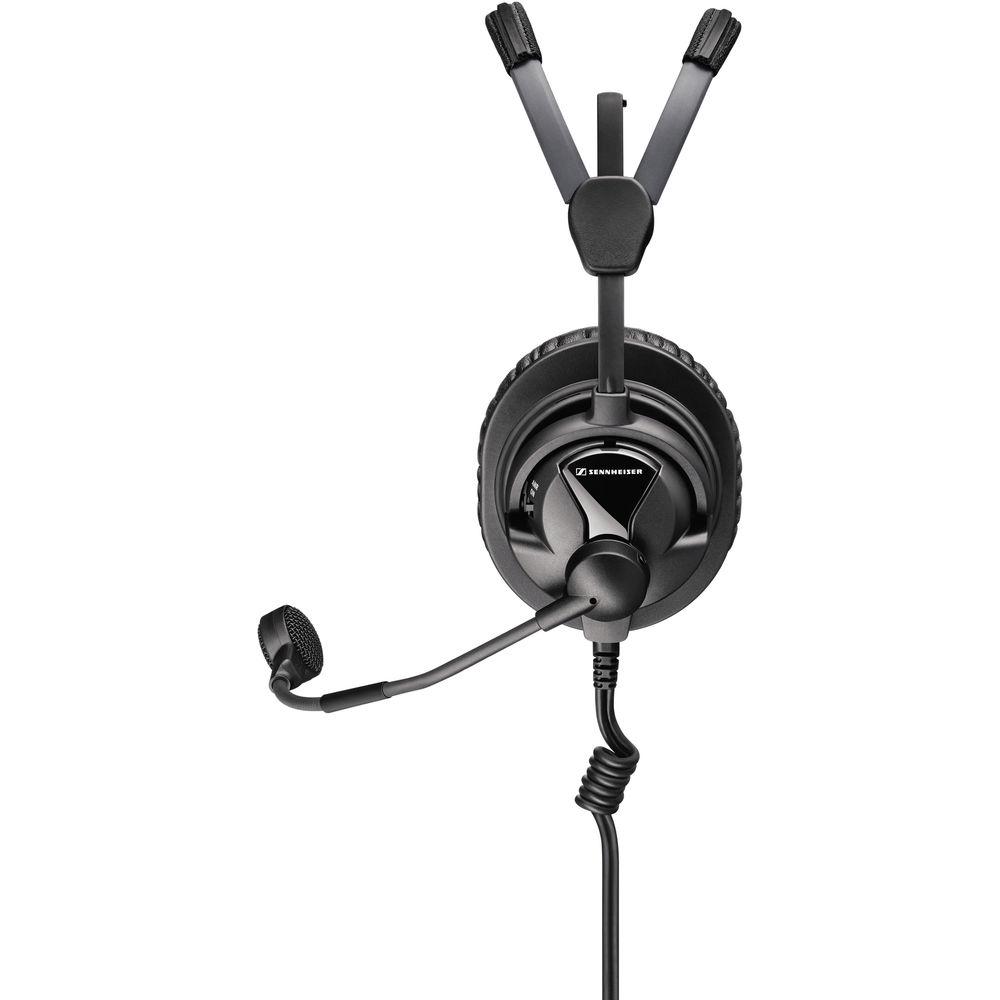

Product description The HMDC 27 Professional Broadcast Headset and Cable with NoiseGard from Sennheiser is a closed, circumaural ear-cup design that features active-noise reduction to perform well in very loud environments. It can be used by broadcast commentators and audio engineers to reduce the noise level by 15 dB and increase intelligibility, while at the same time protecting the user's hearing and avoiding stress and fatigue due to noise. The headset does not run on batteries but is powered via the microphone's power supply (P48 phantom power) from the broadcast desk or intercom system. It is equipped with a two-piece headband that has no pressure on the sensitive fontanelle, and a wide headband padding is included that converts the two-piece headband into a compact single piece. In addition, an XLR and 1/4" cable is included. - Active noise compensation (NoiseGard) additionally reduces noise by up to 15 dB. No batteries required: Power supply via microphone bias voltage from the commentator's unit
- The headset has a lightweight circumaural design with a split headband and provides no pressure on the sensitive fontanelle
- Accurate and linear sound reproduction for very demanding monitoring
- The dynamic microphone stands out due to a strong and powerful sound pattern. It delivers the audio transmission with a high-broadcast quality even in noisy environments
- ActiveGard (on/off switch) for protected hearing against noise peaks greater than 110 dB
- Modular concept of different cables and boom arms that offer the highest flexibility
- Cables of the 26-II series headphones are compatible
- Swiveling ear cap for single-sided listening
- Microphone can be worn either on right or left hand side
- Wide headband padding is included that converts the two-piece headband into a compact single piece
UPC: 615104277977 In the Box Sennheiser HMDC 27 Professional Broadcast Headset and Cable with NoiseGard 6.6' XLR 3-Pin Connector and 1/4" Jack Cable with P48 Large Headband Padding Wind and Pop Screen Cable Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMDC 27 Professional Broadcast Headset and Cable with NoiseGard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser HMDC 27 Specs | Impedance | 64 Ohms | | Frequency Response | 40 Hz to 18 kHz (microphone)
8 Hz to 18 kHz (headphones) | | Transducer Principle | Dynamic (microphone)
Dynamic, closed (headphones) | | Microphone | BMD 434 | | Maximum Sound Pressure Level (SPL) | ActiveGard Limiter off: 128 dB SPL @ 1 kHz
ActiveGard Limiter on: 110 dB SPL @ 1 kHz | | Contact Pressure | Approximately 3.3 N | | Ear Coupling | Circumaural | | Pick-up Pattern | Hyper-cardioid | | Microphone Sensitivity | 0.5 mV/Pa @ 1 kHz | | Maximum Sound Pressure Level (SPL) | 128 dB SPL @ 1 kHz (passive) | | ActiveGard | 110 dB SPL @ 1 kHz | | Distortion | < 0.1% @ 1 kHz, 100 dB SPL | | Dimensions | Not specified by manufacturer | | Weight | 8.5 oz (240 g) without cable | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.1 x 7.3 x 3.6" |
