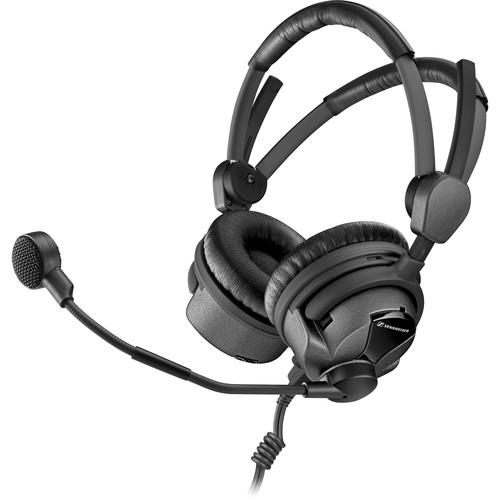

User Manual for Sennheiser HMDC26-II-600-B7 Double-Sided Broadcast Headset with Hypercardioid Mic and Steel Wire, Battery-Powered Control Unit Click to enlarge the picture
Contents of the user manual for the Sennheiser HMDC26-II-600-B7 Double-Sided Broadcast Headset with
- Product category: Headsets Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Headsets
|
User manual for the Sennheiser HMDC26-II-600-B7 Double-Sided Broadcast Headset with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The HMDC26-II-600-B7 from Sennheiser is a dynamic closed back professional broadcast headset with a noise-compensating microphone. It can be used to provide speech transmission in noisy outdoor environments for applications such as broadcast TV, outdoor sports, radio stations, and more. The HMDC26-II-600-B7 is built with a hyper-cardioid microphone. It is suitable for either outdoor or studio use. This series offers several improvements over the previous version, which include a better fit, and more comfort with a lengthened two-piece headband for those long production days. Structure-born noise is minimized by mechanical construction of the headset and cables. - Comfortable to wear even for extended listening
- ActiveGard (switchable) safeguards you from volume peaks above 105 dB
- Flip-away headphone allows single-sided listening
- Linear sound reproduction for demanding applications
- Flexible microphone boom can be worn on either left or right-hand side
- Noise-compensating dynamic microphone ensures professional speech transmission
- Single-sided cable is easy to replace
- The cables have been reinforced with DuPont Kevlar. For single-sided listening, the angle through which the ear cup can be swiveled backwards has been limited to 45°, offering a more secure fit. The stiffer and partially flexible gooseneck provides stay-put positioning of the mic capsule
UPC: 615104246362 In the Box Sennheiser HMDC26-II-600-B7 Double-Sided Broadcast Headset with Hypercardioid Mic and Steel Wire, Battery-Powered Control Unit 502470 Unterminated Steel Headset Cable with Battery Control (6.6') Cable Clip Wind and Pop Screen Headband Padding, Large Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser HMDC26-II-600-B7 Double-Sided Broadcast Headset with Hypercardioid Mic and Steel Wire, Battery-Powered Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser HMDC26-II-600-B7 Specs | | | Transducer | Dynamic, closed | | Ear Coupling | Supra-aural | | Frequency Response | 20 Hz to 18 kHz | | Impedance | 600 ohms mono/1200 ohms stereo | | Characteristic SPL | 108 dB at 1 kHz, 1 mW
110 dB at 1 kHz, 1 V | | Maximum SPL | 120 dB at 1 kHz | | THD | <0.5% at 1 kHz | | Contact Pressure | Approximately 3.9 N | | | | Type | BMD 424 | | Transducer Principle | Dynamic, noise-compensating, hypercardioid | | Frequency Response | 40 Hz to 16 kHz | | Output Voltage | 0.4 mV/PA at 1 kHz | | Maximum SPL | 150 dB at 1 kHz, 0.5% THD | | Impedance | 300 ohms | | | | Power Supply | For NoiseGard: 2x 1.5 V AA alkaline batteries or 2x 1.2 V AA rechargeable batteries (IEC LR6)
Operating Time: Approximately 60 hours | | Temperature Range | Operation: 5 to 131°F (-15 to 55°C)
Storage: -67 to 158°F (-55 to 70°C) | | Weight | Approximately 7.4 oz (210 g) (without cable) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.7 x 7.4 x 3.2" |
