User Manual for Sennheiser IE 40 PRO In-Ear Monitoring Headphones Click to enlarge the picture
Contents of the user manual for the Sennheiser IE 40 PRO In-Ear Monitoring
- Product category: Earphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Earphones
 |
User manual for the Sennheiser IE 40 PRO In-Ear Monitoring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

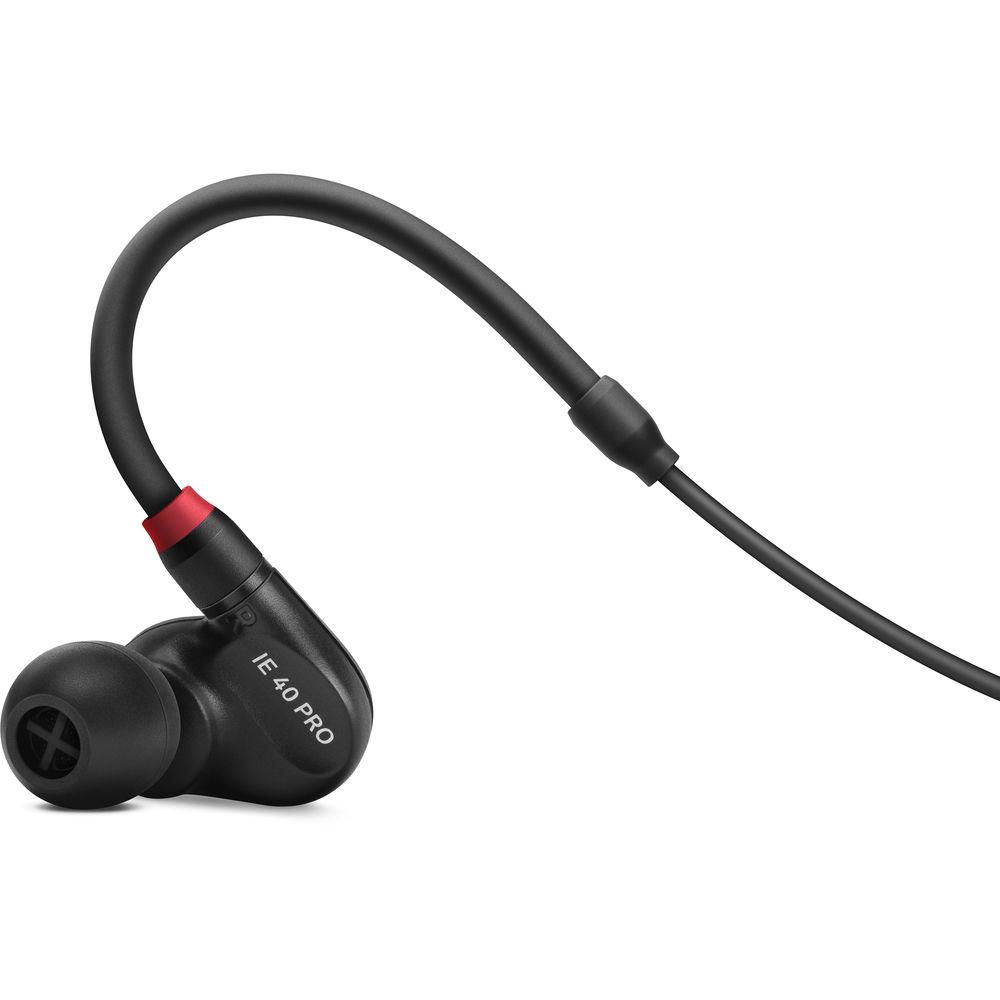

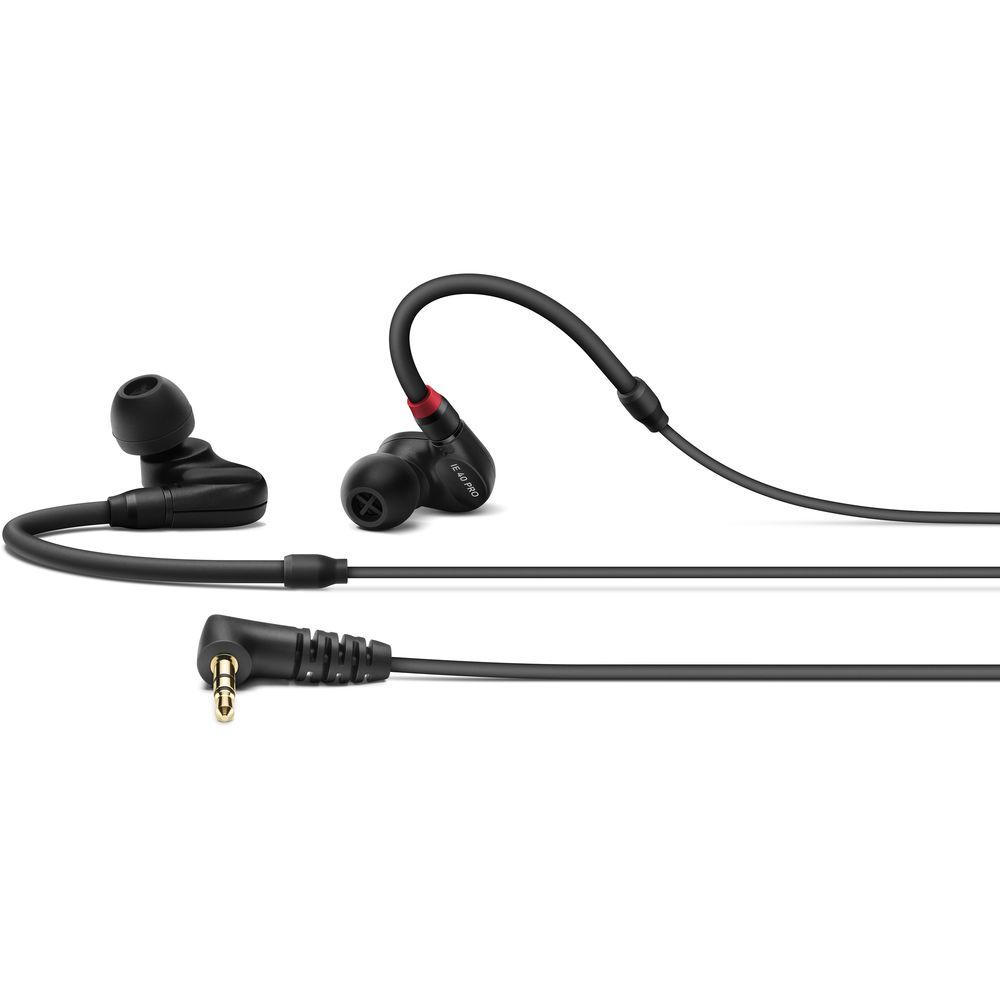

Product description The black Sennheiser IE 40 PRO are in-ear monitoring headphones offering high output and broadband frequency reproduction for musicians, vocalists, and audio engineers in clubs, concert venues, and houses of worship. They feature 10mm dynamic drivers, which produce a 20 Hz to 18 kHz frequency response and a maximum SPL of 115 dB while maintaining phase coherency and low distortion. The compact housings are designed to be light and comfortable. With up to 26 dB of passive noise attenuation, they keep extraneous sounds out and allow you to focus on the mix. Swappable foam and silicone eartips are included for achieving a secure, personalized fit. The detachable 4.3' headphone cable is terminated with a 3.5mm TRS connector to ensure compatibility with a variety of mobile devices, mixers, and headphone amplifiers. The IE 40 PRO in-ear monitoring headphones are supplied with a cleaning tool and a soft protective pouch. - One 10mm SYS 10 dynamic broadband driver per earpiece yields a wide frequency response of 20 Hz to 18 kHz with a strong bass foundation
- Produces up to 115 dB maximum SPL for clear monitoring even on loud stages
- Up to 26 dB of passive noise attenuation
- Sennheiser's TrueResponse technology enables a single driver to cover the entire frequency range without crossover effects or phase differences
- Reduces acoustic stress through precise, dissonance-free reproduction even at maximum sound levels
- Ergonomic design and flat profile deliver a secure fit and comfortable wearing
- Replaceable cable utilizes internal cable ducts and reinforced earhooks

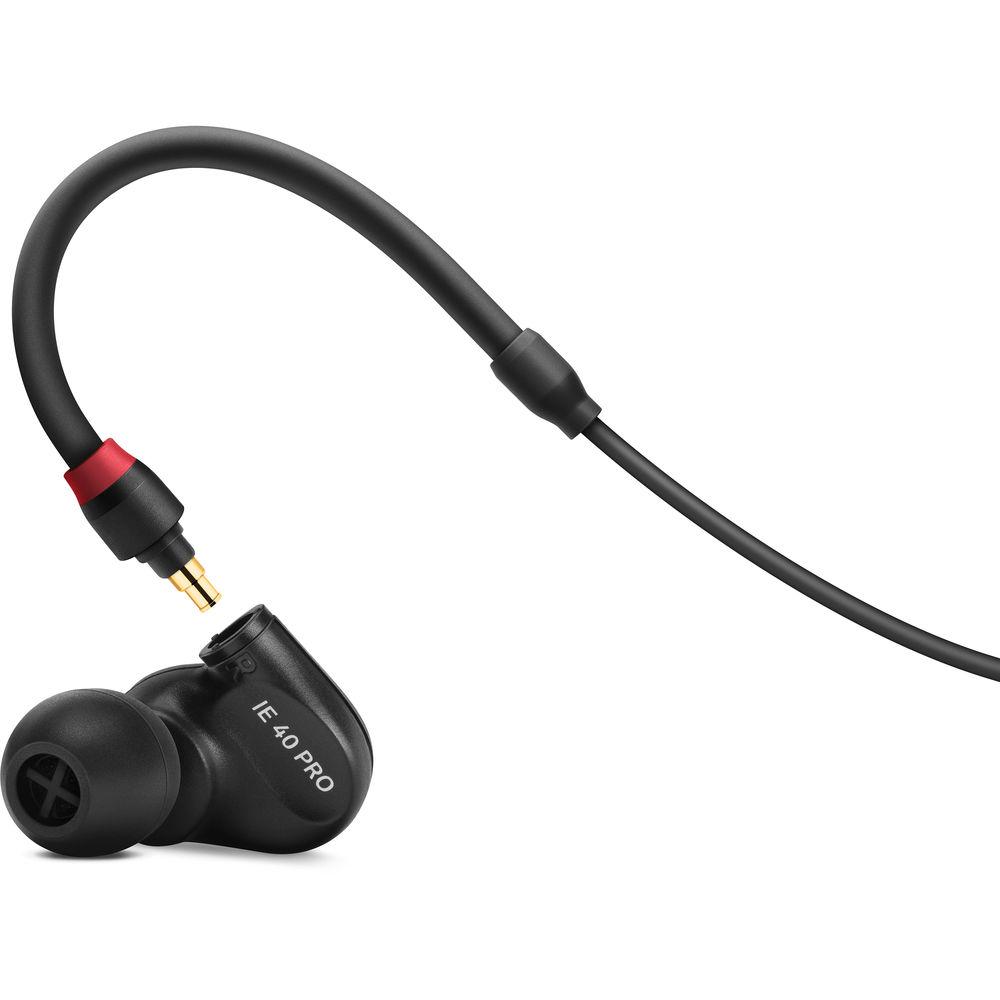

- MMCX connectors at headphones offer a reliable connection and easy cable swapping
- Included eartips allow a personalized, secure fit

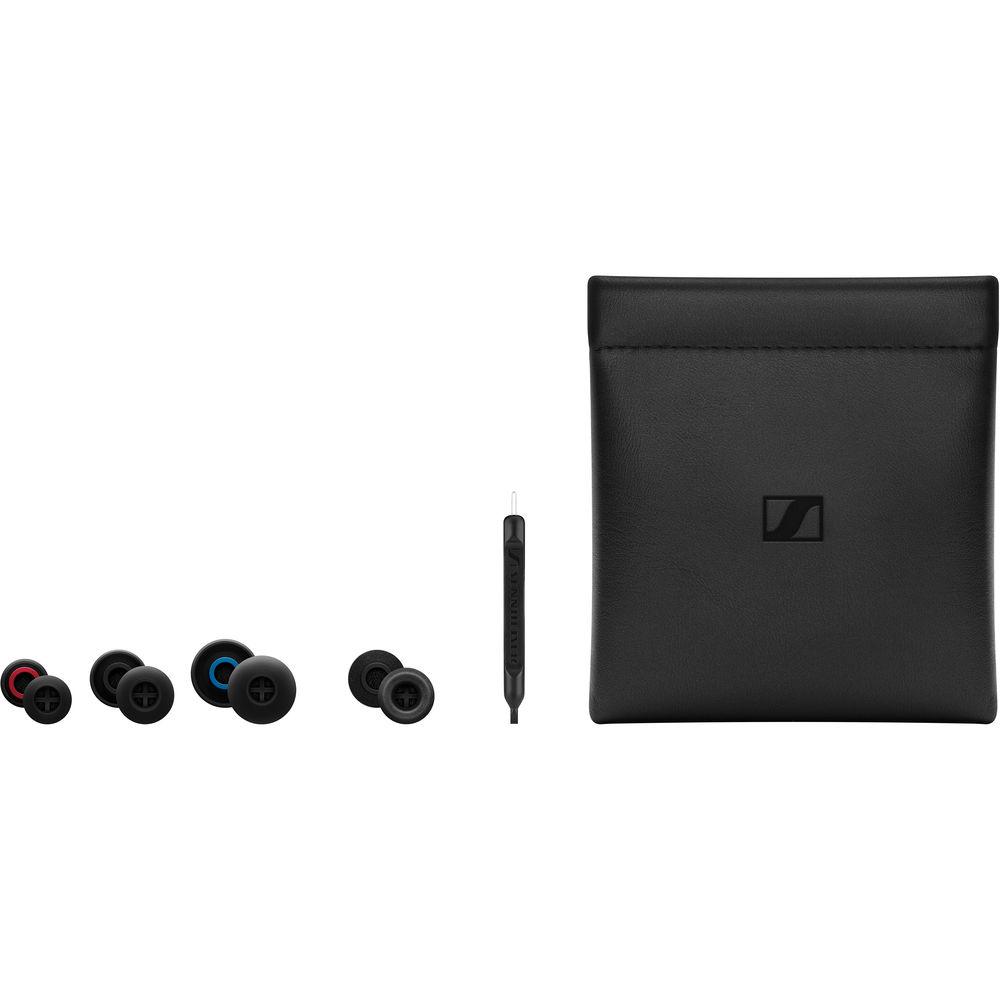

UPC: 615104304574 In the Box Sennheiser IE 40 PRO In-Ear Monitoring Headphones (Black) Silicone Eartips (Small, Medium, Large) Foam Eartips (Medium) Cleaning Tool Soft Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser IE 40 PRO In-Ear Monitoring Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser IE 40 PRO BLACK Specs | | | Design | In-Ear (Intra-Aural) | | Driver Size | 0.39" / 10 mm | | Driver Type | Dynamic | | Number of Drivers | 1, per earpiece | | Active Noise Cancellation | No | | Noise Attenuation | 26 dBA | | | | Frequency Response | 20 Hz to 18 kHz | | Maximum Sound Pressure Level (SPL) | 115 dB at 1 kHz / 1 Vrms | | Total Harmonic Distortion (THD) | 0.1% | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Adapter (Included) | None | | Connector to Earpiece | 2 x MMCX | | | | Design | Y-Type | | Detachable | Yes | | In-Line Remote/Microphone | No | | Cable Length | 4.3' / 1.31 m | | | | IP Rating | None | | Weight | 0.63 oz / 18 g with Cable | | | | Package Weight | 0.31 lb | | Box Dimensions (LxWxH) | 9.05 x 5.1 x 2.2" |
