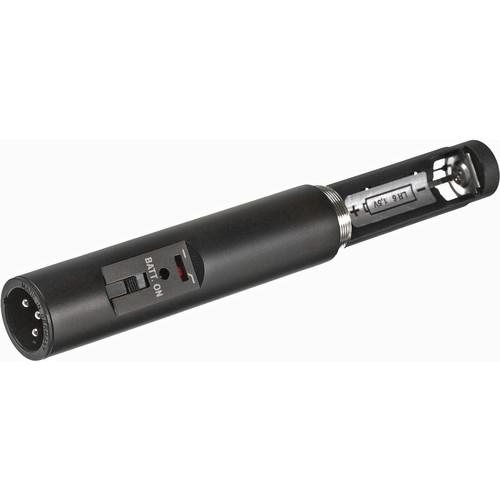

User Manual for Sennheiser K6RD Battery Phantom Power Module for all K6 Series Microphone Capsules Click to enlarge the picture
Contents of the user manual for the Sennheiser K6RD Battery Phantom Power Module
- Product category: Modular Microphone Components Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Modular Microphone Components
|
User manual for the Sennheiser K6RD Battery Phantom Power Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser K6RD is the reduced sensitivity version of the microphone handgrip and power supply capable of battery, or phantom powering all microphone capsules in the "K6" series. One "AA" battery supplies power for approximately 150 hours or phantom power (12-48 volts).
The K6 system is a versatile professional condenser microphone system. Available with a wide variety of modular capsules and accessories. - Power supply with on/off switch and LED indicator for battery condition.
- Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
- Reduced sensitivity model
- Transformerless balanced output on XLR-3M connector
In the Box Sennheiser K6RD Battery/Phantom Power Module (Low Sensitivity) for all K6 Series Microphone Capsules 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser K6RD Battery Phantom Power Module for all K6 Series Microphone Capsules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser K6 RD Specs Frequency Response | 30 Hz - 20 kHz | Power Requirements | Battery 1.5v, (AA Size, Type IEC LR 06) (150 Hour Battery Life)
Phantom Power: 12 - 48v | Output Impedance | 200 Ohms | Output Connectors | XLR-3M Type | Low Frequency Roll-Off | Yes, -11dB/Octave, (@ 100 Hz) | Applications | Powering Compatible Microphones for all Recording and Sound Reinforcement Work such as: Film, Videography, Broadcast, Live Performance, etc. | Dimensions | 6.1 x 00.866" (155 x 022mm) LxDiameter | Weight | 1.61 oz. (45 g) (without Battery) | | Package Weight | 0.2 lb | Box Dimensions (LxWxH) | 7.1 x 1.8 x 1.7" |
