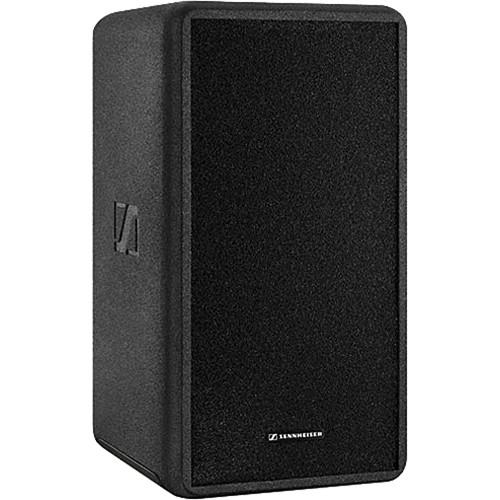

User Manual for Sennheiser LSP 500 Pro Self-Powered Wireless PA System Click to enlarge the picture
Contents of the user manual for the Sennheiser LSP 500 Pro Self-Powered Wireless
- Product category: Portable PA Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Portable PA Systems
|
User manual for the Sennheiser LSP 500 Pro Self-Powered Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More ecdwcsdaafudvbeeuyzxcca The LSP 500 Pro Self-Powered Wireless PA System from Sennheiser is a rechargeable battery powered wireless PA system capable of up to 120-watts of peak output and 55-watts of continuous output. It is scalable to up to 20 units and designed to be controlled by the LSP 500 iPad app via its integrated WLAN connection and an optional wireless router. The unit has 3 rear-panel slots that allow you to integrate up to 3 wireless receivers into the speaker. In addition to the wireless slots, the LSP 500 is Bluetooth enabled and can playback audio from any Bluetooth compatible device. The rear-panel USB 2.0 port provides another input for your digital audio, allowing playback from tracks stored on a flash drive. You can also record the audio routed through the LSP 500 system to a flash drive via USB. The unit also features XLR in and output links for integrating a subwoofer into the system, or connecting multiple units if you do not have access to a wireless router. - Designed for Fast Setups
- LSP 500 PRO has no cords for a quick setup. Sound presets and EQ help aide in quick audio set-up, input mixing and output recording.
- iPad Control
- Once the LSP 500 PRO is in service, you control the complete system with the swipe of a finger. Input sources, sound mixing, playlist management and live recording are all done via iPad. You can freely move around the venue at any time while keeping the performance under control
- Scalable
- LSP 500 PRO is completely scalable even to sizable audiences and large events, whether your job needs 2 or 20 speakers
- Hot-Swappable Battery Power
- The LSP 500 PRO is dual battery powered. In case battery power runs low, you will be alarmed via iPad. Battery replacement is convenient and done by hot-swapping, even during live operation
UPC: 615104239104 In the Box Sennheiser LSP 500 Pro Self-Powered Wireless PA System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser LSP 500 Pro Self-Powered Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser LSP 500 PRO Specs | | | Wireless | Slot 1:
1/2 19" (482 mm) 1 U for wireless receiver
DC Connector: hollow jack plug
Input Connector: 1/4" (6.35 mm) jack plug
Input Level: 12 dBu, maximum
Input Impedance: 10 kΩ
Output Connector: 1x XLR-3M
Output Level: 16 dBu maximum, nominal 4 dBu
Data Connector: RJ 45
Sensitivity: Adjustable
Sound Presets: Speech, Vocal, Flat
Slot 2:
1/2 19" (482 mm) 1 U for wireless receiver
Sensitivity: Adjustable
Sound Presets: Speech, Vocal, Flat
Slot 3:
1/2 19" (482 mm) 1 U for wireless receiver
Sensitivity: Adjustable
Sound Presets: Speech, Vocal, Flat | | Analog Inputs | Combo XLR/TRS Auxiliary Input:
Input Voltage Range XLR: -22 dBu, -2 dBu
Input Voltage Range XLR with 20 dB Switch: -34 dBu nominal, -14 dBu
Input Voltage Range TRS: 4 dBu maximum, -7.5 dBu nominal
Stereo RCA Auxiliary Input:
Input Voltage: 14 dBu maximum, 2 dBu nominal
XLR-3F Link In:
Input Voltage Range: 16 dBu maximum, 4 dBu nominal | | Analog Output | XLR-3M Link Output:
Output Voltage Level: 16 dBu maximum, 4 dBu nominal | | Bluetooth | A2DP with ATPX for audio streaming | | USB | 1x USB 2.0 port
Supports MP3, WAV, AAC, FLAC files
Media Recorder: WAV | | | | WLAN | WLAN connectivity to WLAN access point
Remote Control App for iPad controls up to 20 LSP 500 PRO
IEEE 802.11b/g | | | | Design | 2-way, closed box | | Drivers | 1x 8" (203 mm) woofer
1x 0.75" (19 mm) compression driver, passive crossover | | SPL | 110 dB SPL (10 % THD, full space) | | Frequency Response | 65 Hz to 18 kHz (-10 dB) | | Dispersion | H x V: 80° x 60° (-6 dB) | | | | Mains | 90 to 240 V AC, 50-60 Hz | | Battery | 2x Lithium Ion 14.4 V / 4.4 Ah | | Operating Time | 8 hours, approximate | | Charging Time | 2.5 hours per battery, approximate | | Operating Temperature | 32 to 122°F (0 to 50°C) | | | | Output Power | Class D Amplifier, 55 W continuous, 120 W peak | | | | Housing | Coated plywood | | Stand Type | 1.42" (36 mm) diameter receptacle | | Dimensions (W x D x H) | 11.42 x 21.65 x 12.60" (290 x 550 x 320 mm) | | Weight | 30 lb (13.6 kg), approximate (without wireless receivers) | | | | Package Weight | 39.65 lb | | Box Dimensions (LxWxH) | 26.5 x 14.0 x 14.0" |
