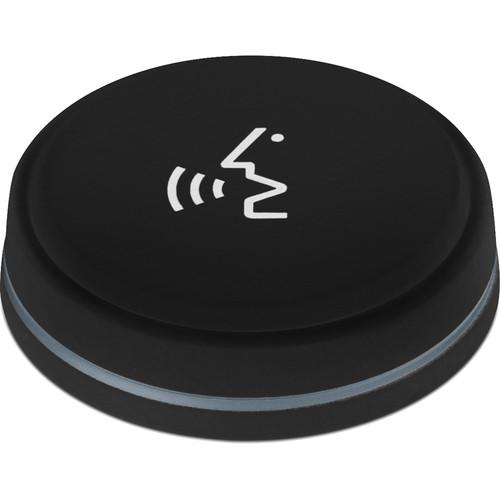

User Manual for Sennheiser MAS 1 Microphone Activation Button Click to enlarge the picture
Contents of the user manual for the Sennheiser MAS 1 Microphone Activation Button
- Product category: In-Line Mic Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser In-Line Mic Accessories
|
User manual for the Sennheiser MAS 1 Microphone Activation Button contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The black MAS 1 Microphone Activation Button by Sennheiser when paired with the MAS 133 inline switch box is for control of a microphone. The MAS 1 is used to activate programmable modes that include On, On/Off, PTT, and PTM. It features a bi-color LED for status indication of each mode. The mounting hardware is included. UPC: 615104230446 In the Box Sennheiser MAS 1 Microphone Activation Button (Black) 2 x Rubber Rings Hex Nut Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MAS 1 Microphone Activation Button in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MAS 1 B Specs | Connector | XLR-5M Out Pin assignment: 1 = ground, 2 = switch, 3 = LED red, 4 = LED green, 5 = LEDs +12 V | | Phantom Power | 12 V (1.5 mA max.) | | Operating Temperature | 14 to 122 °F (10 to 50 °C) | | Current Consumption | LED ring: 3 mA | | LED Indicators | Light Ring: Red/green | | Thread | M 20 | | Dimensions | Height: 3.19" (8.10 cm)(0.31" (0.79 cm) above surface)
Diameter: 1.12" (2.84 cm) | | Weight | 2.11 oz (59.82 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.4 x 3.3 x 1.7" |
