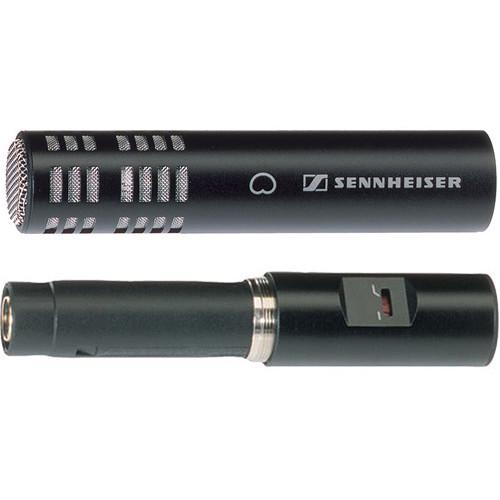

User Manual for Sennheiser ME 64 Cardioid Mic Capsule with K6P Power Module Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser ME 64 Cardioid Mic Capsule
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser ME 64 Cardioid Mic Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The ME 64 is a cardioid shotgun microphone capsule designed for use with the K6 and K6P powering modules. It has a very wide range of applications including reporting, interviews, dubbing, live-sound reinforcement and recording applications. It has a matte-black, anodised, scratch-resistant finish.
This kit includes the K6P powering module, the heart of Sennheiser's professional modular condenser microphone system. It is similar to the K6 powering module but is powered by 12 - 48V phantom power only, for use where battery power is not required (e.g. permanent installations). The K6P can be combined with various microphone heads to produce microphones with a variety of pickup patterns. It has a matte-black, anodised, scratch-resistant finish. - Sennheiser ME 64 Cardioid Mic Capsule The ME 64 is a cardioid shotgun-microphone capsule designed for use with the K6 and K6P powering modules, and can be used in a very wide range of applications including reporting, interviews, dubbing, live sound reinforcement, and recording applications. It has a matte-black, anodized, scratch-resistant finish.
- Excellent directivity across whole frequency range
- Very good feedback rejection
- Effective rejection of incidental rear noise
- High maximum sound-pressure level
UPC: 615104032828 - Sennheiser K6P Powering Module (Phantom Only) The Sennheiser K6P is the mic body and power supply for Sennheiser's professional condenser modular microphone system. You can assemble a complete microphone, with your choice of pick-up pattern, by combining the K6P with one of five different K6-series microphone heads (not included).
The K6P features a black, anodized, scratch-resistant finish. It's designed for use in situations where phantom power is present. Users who need a battery-powered mic can purchase Sennheiser's K6, instead. The K6P features a switchable bass roll-off filter to help reduce low end rumble, handling noise, wind noise, and pops. It also features an On/Off switch, and a transformerless balanced output on a 3-pin XLR connector. - Transformerless balanced output on 3-pin XLR connector
- Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
UPC: 615104185722 In the Box - ME 64 Cardioid Condenser Microphone Capsule for K6/K6P utzwvfebeuabbeyycfzrvqwartyscutstxbu
- Limited 2-Year Warranty
- K6P Powering Module (Phantom Only) utzwvfebeuabbeyycfzrvqwartyscutstxbu
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME 64 Cardioid Mic Capsule with K6P Power Module Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME 64 Cardioid Mic Capsule
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz - 20 kHz, (+/-2.5 dB) | | Maximum Input Sound Level | 130 dB (THD = 1%) | | Power Requirements | Supplied by K6 or K6P Power Modules (sold separately) | | Output Impedance | 200 Ohms | | Output Connectors | Connects (Screws On) to K6 or K6P Only | | Dimensions (L x D) | 4.17 x 0.885" / 106 x 22.5 mm | | Weight | 1.3 oz / 34.9 g | | | | Box Dimensions (LxWxH) | 2.0 x 1.6 x 1.0" | - Sennheiser K6P Powering Module (Phantom Only)
| Transducer Type | Pre-polarized condenser microphone | | Frequency Response | 30 to 20,000 Hz (+/- 1 dB) | | Impedance | Nominal: 200 Ohms
Min. Terminating: 1 kOhm | | Gain | 0 dB | | Power | Phantom Power: 12 - 48 VDC
Current Consumption: 2.2 mA
Output Voltage: 2 V (1 kHz) | | Diameter | 0.9 x 2" / 22 x 52 mm | | Weight | Approx 1.1 oz / 30 g | | | | Box Dimensions (LxWxH) | 7.3 x 1.7 x 1.7" |
