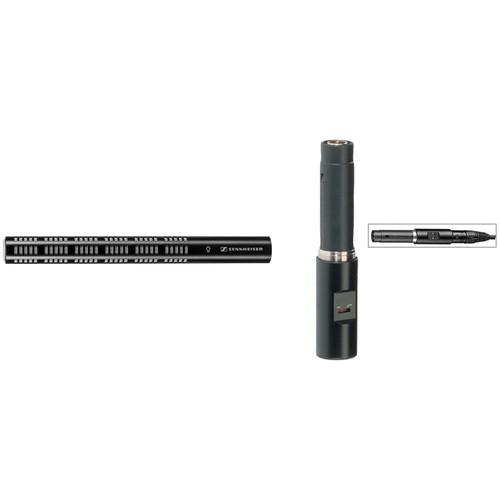

User Manual for Sennheiser ME 66 K6P - Supercardioid Microphone Capsule with K6P Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser ME 66 K6P - Supercardioid
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser ME 66 K6P - Supercardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser ME 66/K6P - Supercardioid Mic Capsule with K6P Kit includes an ME66 supercardioid shotgun microphone capsule and a K6P power module. The ME 66 features a highly directional supercardioid/lobar polar pattern, allowing for high off-axis rejection and focused pick up. It can handle up to 125 dB SPL, and has a frequency response of 40 Hz to 20 kHz. The ME 66 is powered by the included K6P power module, which supplies not only power, but features a switchable bass roll-off switch and on/off switch. - Sennheiser ME 66 Supercardioid Shotgun Microphone Head The Sennheiser ME 66 is a supercardioid shotgun condenser microphone designed to provide focused sound pickup for boom operators, sound engineers, and videographers in ENG, EFP, video and television production, broadcast, and interviews. Its supercardioid/lobar polar pattern delivers a tight, focused pickup area with effective rejection of sounds from the sides and rear of the mic. A wide 40 Hz to 20 kHz frequency response ensures accurate signal capture across the frequency spectrum, making it welcome for recording dialog, Foley, sound effects, and ambient noise.With high sensitivity and maximum SPL ratings, it works well with a variety of preamps and can handle both hushed and loud sound sources. Its low self-noise yields an improved signal-to-noise ratio appropriate for typical digital recording systems.The ME 66 easily attaches to a K6 or K6P powering module (required and available separately) for simple integration with standard microphone preamps. Its compact body allows camera and boompole mounting while remaining out of the shot.
- Effective Noise Rejection
- Highly directional supercardioid/lobar polar pattern yields enhanced attenuation at the sides of the microphone and maximum pickup at the front
- Wide Frequency Response
- 40 Hz to 20 kHz frequency response for detailed, accurate signal reproduction
- High Maximum SPL
- High 125 dB maximum SPL provides distortion-free recording of loud sources
- Compact Design
- Compact enclosure enables lightweight use on video cameras and boompoles
- Powering Options
- Easily attaches to K6 or K6P powering modules (available separately) for stable power
- Protective Finish
- Matte black, anodized, scratch-resistant finish
- Sennheiser K6P Powering Module (Phantom Only) The Sennheiser K6P is the mic body and power supply for Sennheiser's professional condenser modular microphone system. You can assemble a complete microphone, with your choice of pick-up pattern, by combining the K6P with one of five different K6-series microphone heads (not included).
The K6P features a black, anodized, scratch-resistant finish. It's designed for use in situations where phantom power is present. Users who need a battery-powered mic can purchase Sennheiser's K6, instead. The K6P features a switchable bass roll-off filter to help reduce low end rumble, handling noise, wind noise, and pops. It also features an On/Off switch, and a transformerless balanced output on a 3-pin XLR connector. - Transformerless balanced output on 3-pin XLR connector
- Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
In the Box - ME 66 Supercardioid Shotgun Microphone Head zxywtvsudstyfxaauzx
- Limited 2-Year Warranty
- K6P Powering Module (Phantom Only)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME 66 K6P - Supercardioid Microphone Capsule with K6P Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME 66 Supercardioid Shotgun Microphone Head
| Transducer | Condenser | | Polar Pattern | Supercardioid/lobar | | Frequency Response | 40 Hz to 20 kHz (
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
