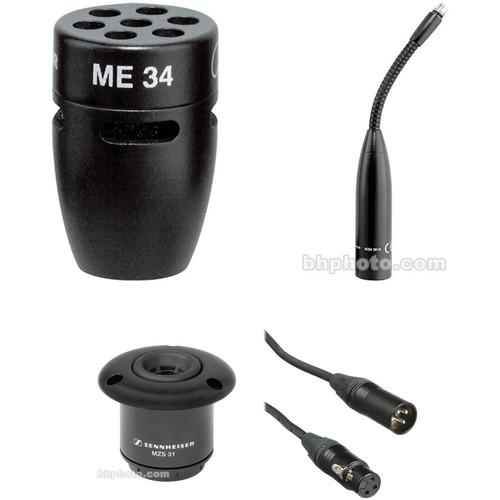

User Manual for Sennheiser ME34 MZH Series 5.9" Cardioid Gooseneck Microphone Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser ME34 MZH Series 5.9" Cardioid
- Product category: Gooseneck Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Gooseneck Microphones
|
User manual for the Sennheiser ME34 MZH Series 5.9" Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description This Kit includes the black Sennheiser ME34 MZH Series Condenser Microphone Capsule, a 5.9" metal gooseneck, a vibration-reducing shockmount, and a balanced XLR 3-pin microphone cable. The microphone's cardioid polar pattern, wide frequency response, low noise, and RF shielding make it well suited for accurate voice reproduction in acoustically untreated spaces such as meeting rooms, lecture halls, and houses of worship. Phantom powering and a standard XLR 3-pin output connector allow compatibility with most mixers, dedicated preamps, and installed PA systems. - Sennheiser ME34 MZH Cardioid Microphone Capsule (Black) The Sennheiser MZH series capsules are modular and designed for mounting to the MZH series goosenecks and other available accessories.The ME34 is a miniature capsule with a cardioid pattern and wide frequency response. The ME34 is designed for basic sound reinforcement applications where minimal suppression of off-axis audio is desired. The result is a higher signal-to-noise ratio and feedback suppression than that of an omnidirectional microphone. The ME34's wide frequency response results in transparent, detailed audio reproduction at full range.
- Cardioid Polar Pattern
- The ME34 features a cardioid pick up pattern. The pattern improves off-axis rejection over an omnidirectional microphone.
- Based on KE10 Capsule
- Element and circuitry are modeled after the renowned KE10 capsule used in Sennheiser's celebrated MKE 40 lavalier and MKE44P stereo microphones.
- Pristine Signal Reproduction
- Overall the ME34 provides a rich, detailed signal response and wide, natural frequency response.
UPC: 615104050600 - Sennheiser MZH3015 Short Gooseneck Mount The Sennheiser MZH3015 is a short gooseneck mount that provides flexible, accurate microphone placement for the ME34, ME35 and ME36 Microphone Capsules. The gooseneck measures approximately 5.9" (15cm) in length. The mount is terminated with a standard 3-pin XLR male type connection that will connect directly to microphone inputs and mounting flanges. UPC: 615104050747
- Sennheiser MZS-31 Shockmount The Sennheiser MZS-31 is a shockmount for the MZH-3015, MZH-3040 and MZH-3042 gooseneck microphones. The shockmount eliminates noise due to surface vibration and abrupt shock. UPC: 615104050877
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558281 In the Box - ME34 MZH Cardioid Microphone Capsule (Black) vyexverduudwrbreaa
- Windscreen
- 1 Year Warranty
- MZH3015 Short Gooseneck Mount for ME34, ME35 and ME36 Microphone Capsules (5.9") (15cm)
- MZS-31 Shockmount for MZH Series Gooseneck Microphones
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME34 MZH Series 5.9" Cardioid Gooseneck Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME34 MZH Cardioid Microphone Capsule (Black)
| Transducer | Pressure Gradient | | Polar Pattern | Cardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 26dB (A) | | Maximum Input Sound Level | not specified by manufacturer | | Power Requirements | 12 - 48V Phantom Power | | Output Impedance | 50 ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | .70 x .47" (18 x 12mm) (Length x Diameter) | | Weight | .29 oz (8.5 g) | | | | Box Dimensions (LxWxH) | 6.1 x 4.6 x 1.4" | - Sennheiser MZH3015 Short Gooseneck Mount
| | | Box Dimensions (LxWxH) | 7.3 x 1.7 x 1.7" | - Sennheiser MZS-31 Shockmount
| | | Box Dimensions (LxWxH) | 3.25 x 3.25 x 2.75" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 15' / 4.6 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 5.8 x 2.9 x 1.3" |
