User Manual for Sennheiser ME62 Omnidirectional Microphone Capsule and K6 Powering Module Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser ME62 Omnidirectional Microphone Capsule and
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser ME62 Omnidirectional Microphone Capsule and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

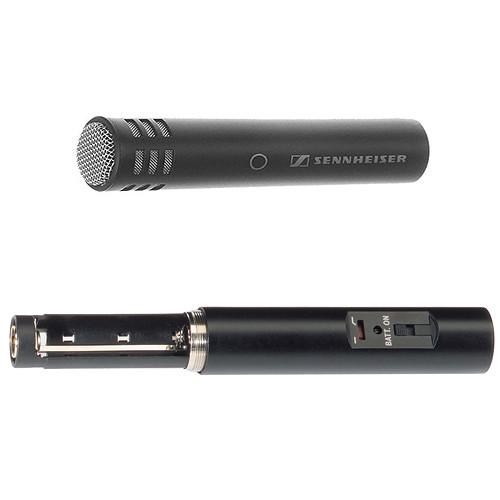

Product description The Sennheiser ME62 Omnidirectional Microphone Capsule and K6 Powering Module Kit from includes the ME62 omnidirectional mic capsule and the K6 battery or phantom-powered powering module. This kit can be used to capture audio in numerous applications including reporting, interviews, dialog for video, and more. - Sennheiser ME62 - Omni Mic Capsule The ME 62 is an omnidirectional microphone capsule suitable for use with the K6, or K6P powering modules. This microphone can be used for reporting, discussions and interviews. The ME 62 is particularly suitable for good reproduction of "room" ambience and "spaced omni" stereo recording. Matte black, anodized, scratch-resistant finish.
- Omnidirectional pick-up pattern
- Minimal inherent self-noise
- Excellent rejection of rumble, wind and handling noise
- High maximum sound pressure
UPC: 615104032811 - Sennheiser K6 Microphone System Powering Module (Phantom/Battery) The K6 Microphone System Powering Module by Sennheiser is the compatible base for many modular capsules. It features high output levels with low noise, a switchable bass roll-off, and transformerless balanced output.
The K6 can operate on a single AA battery (not included) or phantom power. Its on/off switch also has a battery test position, so you can be sure you have enough juice. The K6's anodized, matte-black finish will resist abrasions to maintain a professional appearance, even under rigorous usage. - K6 Microphone System Powering Module
-
- High output, low noise operation
- Switchable bass roll-off filter @ 100Hz
- Transformerless balanced output
- On/Off switch with battery test position
- Battery or phantom powered
- Anodized scratch-resistant finish
UPC: 615104185715 In the Box - ME62 - Omni-Directional Condenser Microphone Capsule for K6/K6P rcyzfxauyrczfqcfbfuwe
- 1 Year Warranty
- K6 Microphone System Powering Module (Phantom/Battery) rcyzfxauyrczfqcfbfuwe
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME62 Omnidirectional Microphone Capsule and K6 Powering Module Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME62 - Omni Mic Capsule
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz - 20 kHz | | Maximum Input Sound Level | 130 dB, (THD = 1 %) | | Power Requirements | Supplied by K6 or K6P Power Modules (Optional) | | Output Impedance | 200 Ohms | | Output Connectors | Attaches (Screws-On) to the K6, or K6P Powering Module | | Dimensions | 3.76 x 0.9" (94 x 22.5mm) LxDiameter | | Weight | 1.05 oz. (29.8g) | | | | Box Dimensions (LxWxH) | 1.9 x 1.7 x 1.0" | - Sennheiser K6 Microphone System Powering Module (Phantom/Battery)
| Gain | 0 dB | | Impedance | Minimum Terminating: 1 kOhm
Nominal: 200 Ohms | | Frequency Response | 30 to 20,000 Hz (-1 dB) | | Low Frequency Roll-Off | On/off switchable
-10 dB @ 100 Hz / -20 dB @ 50 Hz | | Output Voltage | 2 V | | Phantom Power Requirements | 12 to 48 V (± 4 V) | | Current Consumption | 2.2 mA | | Battery Requirements | 1 x AA battery | | Battery Life | 150 hours maximum | | Dimensions (Diam. x L) | 0.9 x 3.7" / 22 x 94 mm | | Weight | 1.6 oz / 45 g | | | | Box Dimensions (LxWxH) | 7.65 x 3.55 x 1.8" |
