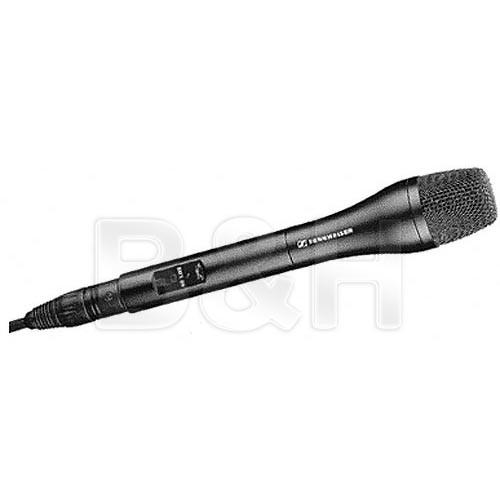

User Manual for Sennheiser ME65 K6 - Super-Cardioid Handheld Condenser Microphone Capsule with K6 Power Supply Click to enlarge the picture
Contents of the user manual for the Sennheiser ME65 K6 - Super-Cardioid Handheld
- Product category: Handheld Performance Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Handheld Performance Microphones
|
User manual for the Sennheiser ME65 K6 - Super-Cardioid Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The ME 65 is a super-cardioid microphone capsule designed for use with the K6 and K6P powering modules. It is especially suited to vocal and speech applications. Matte black, anodized, scratch-resistant finish.
The K6 power module is a microphone handgrip and power supply capable of battery/phantom powering all microphone capsules in this series. One "AA" battery supplies power for approximately 150 hours or phantom power (12 - 48 v). The power supply has an integrated bass roll-off switch and an on/off switch with an LED indicator for battery condition. - Sennheiser ME65 - Super-Cardioid Mic Capsule The ME 65 is a supercardioid microphone capsule designed for use with the K6 and K6P powering modules. It is especially suited to vocal and speech applications. Matte black, anodized, scratch-resistant finish.
- Supercardioid pick-up pattern
- Excellent directivity across whole frequency range
- Frequency independent, supercardioid pick-up pattern ensures excellent feedback rejection
- Extremely high maximum sound pressure level
UPC: 615104032835 - Sennheiser K6 Microphone System Powering Module (Phantom/Battery) The K6 Microphone System Powering Module by Sennheiser is the compatible base for many modular capsules. It features high output levels with low noise, a switchable bass roll-off, and transformerless balanced output.
The K6 can operate on a single AA battery (not included) or phantom power. Its on/off switch also has a battery test position, so you can be sure you have enough juice. The K6's anodized, matte-black finish will resist abrasions to maintain a professional appearance, even under rigorous usage. - K6 Microphone System Powering Module
-
- High output, low noise operation
- Switchable bass roll-off filter @ 100Hz
- Transformerless balanced output
- On/Off switch with battery test position
- Battery or phantom powered
- Anodized scratch-resistant finish
UPC: 615104185715 In the Box - ME65 - Super-Cardioid Handheld Condenser Microphone Capsule for K6/K6P rcyzfxauyrczfqcfbfuwe
- 1 Year Waranty
- K6 Microphone System Powering Module (Phantom/Battery)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME65 K6 - Super-Cardioid Handheld Condenser Microphone Capsule with K6 Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME65 - Super-Cardioid Mic Capsule
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40 Hz - 20 kHz, (+/-2.5 dB) | | Maximum Input Sound Level | 142 dB, (@ 1 kHz) | | Power Requirements | Supplied by K6 or K6P Power Modules (Optional) | | Output Impedance | 200 Ohms | | Output Connectors | Attaches (Screws-On) to the K6, or K6P Powering Module | | Dimensions | 5.16 x 1.73" (131 x 44mm) LxDiameter | | Weight | 2.86 oz. (80 g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.3 x 2.2" | - Sennheiser K6 Microphone System Powering Module (Phantom/Battery)
| Gain | 0 dB | | Impedance | Minimum Terminating: 1 kOhm
Nominal: 200 Ohms | | Frequency Response | 30 to 20,000 Hz (-1 dB) | | Low Frequency Roll-Off | On/off switchable
-10 dB @ 100 Hz / -20 dB @ 50 Hz | | Output Voltage | 2 V | | Phantom Power Requirements | 12 to 48 V (± 4 V) | | Current Consumption | 2.2 mA | | Battery Requirements | 1 x AA battery | | Battery Life | 150 hours maximum | | Dimensions (Diam. x L) | 0.9 x 3.7" / 22 x 94 mm | | Weight | 1.6 oz / 45 g | | | | Box Dimensions (LxWxH) | 7.65 x 3.55 x 1.8" |
