User Manual for Sennheiser ME65 K6P - Super-Cardioid Handheld Condenser Microphone Capsule with K6P Power Supply Click to enlarge the picture
Contents of the user manual for the Sennheiser ME65 K6P - Super-Cardioid Handheld
- Product category: Handheld Performance Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Handheld Performance Microphones
|
User manual for the Sennheiser ME65 K6P - Super-Cardioid Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

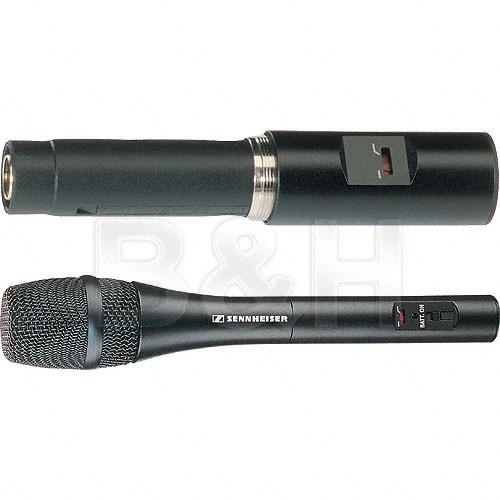

Product description The ME 65 is a supercardioid microphone capsule designed for use with the K6 and K6P powering modules. It is especially suited to vocal and speech applications. Matte black, anodized, scratch-resistant finish.
The K6P modular system is a versatile professional condenser microphone system of exceptionally high quality. Available with a wide variety of ME Series modules for different powering arrangements, polar patterns, and capsule sizes, the K6P system provides a flexible tool for all recording and sound reinforcement work.
All modular ME Series capsules demonstrate "state-of-the-art" design and performance characteristics, from mini-lavalier to shotgun configurations. And with their exceptionally high sensitivity, these microphones allow much greater "reach" characteristics and extremely high signal-to-noise ratios. The K6P System's extreme flexibility, high quality, and compact, lightweight modular construction make it an invaluable tool for many applications.
The K6P powering module is at the heart of Sennheiser's professional modular condenser microphone system. It is similar to the K6 powering module but is powered by 12 - 48v phantom power only, for use where battery power is not required (e.g. permanent installations). The K6P can be combined with various microphone heads to produce microphones with a variety of pick-up patterns. Matt black, anodised, scratch-resistant finish. - Sennheiser ME65 - Super-Cardioid Mic Capsule The ME 65 is a supercardioid microphone capsule designed for use with the K6 and K6P powering modules. It is especially suited to vocal and speech applications. Matte black, anodized, scratch-resistant finish.
- Supercardioid pick-up pattern
- Excellent directivity across whole frequency range
- Frequency independent, supercardioid pick-up pattern ensures excellent feedback rejection
- Extremely high maximum sound pressure level
UPC: 615104032835 - Sennheiser K6P Powering Module (Phantom Only) The Sennheiser K6P is the mic body and power supply for Sennheiser's professional condenser modular microphone system. You can assemble a complete microphone, with your choice of pick-up pattern, by combining the K6P with one of five different K6-series microphone heads (not included).
The K6P features a black, anodized, scratch-resistant finish. It's designed for use in situations where phantom power is present. Users who need a battery-powered mic can purchase Sennheiser's K6, instead. The K6P features a switchable bass roll-off filter to help reduce low end rumble, handling noise, wind noise, and pops. It also features an On/Off switch, and a transformerless balanced output on a 3-pin XLR connector. - Transformerless balanced output on 3-pin XLR connector
- Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
UPC: 615104185722 In the Box - ME65 - Super-Cardioid Handheld Condenser Microphone Capsule for K6/K6P fazdauxzuxueyusfec
- 1 Year Waranty
- K6P Powering Module (Phantom Only)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME65 K6P - Super-Cardioid Handheld Condenser Microphone Capsule with K6P Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME65 - Super-Cardioid Mic Capsule
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40 Hz - 20 kHz, (+/-2.5 dB) | | Maximum Input Sound Level | 142 dB, (@ 1 kHz) | | Power Requirements | Supplied by K6 or K6P Power Modules (Optional) | | Output Impedance | 200 Ohms | | Output Connectors | Attaches (Screws-On) to the K6, or K6P Powering Module | | Dimensions | 5.16 x 1.73" (131 x 44mm) LxDiameter | | Weight | 2.86 oz. (80 g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.3 x 2.2" | - Sennheiser K6P Powering Module (Phantom Only)
| Transducer Type | Pre-polarized condenser microphone | | Frequency Response | 30 to 20,000 Hz (+/- 1 dB) | | Impedance | Nominal: 200 Ohms
Min. Terminating: 1 kOhm | | Gain | 0 dB | | Power | Phantom Power: 12 - 48 VDC
Current Consumption: 2.2 mA
Output Voltage: 2 V (1 kHz) | | Diameter | 0.9 x 2" / 22 x 52 mm | | Weight | Approx 1.1 oz / 30 g | | | | Box Dimensions (LxWxH) | 7.3 x 1.7 x 1.7" |
