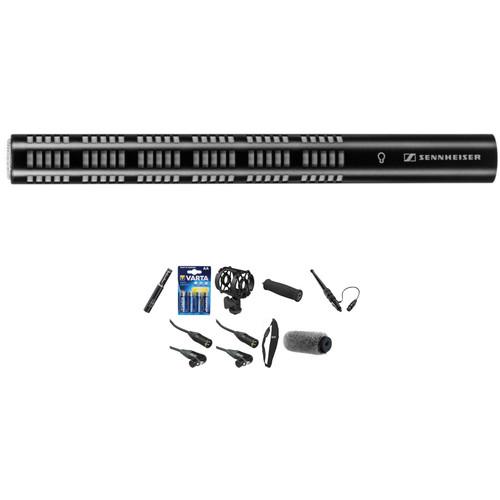

Sennheiser ME66 K6 Condenser Shotgun Microphone

User Manual for Sennheiser ME66 K6 Condenser Shotgun Microphone Basic Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser ME 66 Supercardioid Shotgun Microphone Head The Sennheiser ME 66 is a supercardioid shotgun condenser microphone designed to provide focused sound pickup for boom operators, sound engineers, and videographers in ENG, EFP, video and television production, broadcast, and interviews. Its supercardioid/lobar polar pattern delivers a tight, focused pickup area with effective rejection of sounds from the sides and rear of the mic. A wide 40 Hz to 20 kHz frequency response ensures accurate signal capture across the frequency spectrum, making it welcome for recording dialog, Foley, sound effects, and ambient noise.With high sensitivity and maximum SPL ratings, it works well with a variety of preamps and can handle both hushed and loud sound sources. Its low self-noise yields an improved signal-to-noise ratio appropriate for typical digital recording systems.The ME 66 easily attaches to a K6 or K6P powering module (required and available separately) for simple integration with standard microphone preamps. Its compact body allows camera and boompole mounting while remaining out of the shot.
  Effective Noise Rejection
  • Highly directional supercardioid/lobar polar pattern yields enhanced attenuation at the sides of the microphone and maximum pickup at the front
  Wide Frequency Response
  • 40 Hz to 20 kHz frequency response for detailed, accurate signal reproduction
  High Maximum SPL
  • High 125 dB maximum SPL provides distortion-free recording of loud sources
  Compact Design
  • Compact enclosure enables lightweight use on video cameras and boompoles
  Powering Options
  • Easily attaches to K6 or K6P powering modules (available separately) for stable power
  Protective Finish
  • Matte black, anodized, scratch-resistant finish
• Sennheiser K6 Microphone System Powering Module (Phantom/Battery) The K6 Microphone System Powering Module by Sennheiser is the compatible base for many modular capsules. It features high output levels with low noise, a switchable bass roll-off, and transformerless balanced output.

  The K6 can operate on a single AA battery (not included) or phantom power. Its on/off switch also has a battery test position, so you can be sure you have enough juice. The K6's anodized, matte-black finish will resist abrasions to maintain a professional appearance, even under rigorous usage.
  K6 Microphone System Powering Module
  • • High output, low noise operation
    • Switchable bass roll-off filter @ 100Hz
    • Transformerless balanced output
    • On/Off switch with battery test position
    • Battery or phantom powered
    • Anodized scratch-resistant finish
• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack) Power any device that accepts AA cells with this 4-pack of standard, all-purpose High-Energy 1.5V AA LR6 Alkaline Batteries from Varta. These German-made cells are non-rechargeable and feature an output of 1.5V. Additionally, they offer up to 80% more power in digital cameras than Varta Simply Alkaline batteries. The "Single Press Out" type packaging enables easy opening, allowing you to extract one at a time and providing storage for unused cells.
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738
• Auray ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable (7') The ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable from Auray is designed to accommodate Electronic News Gathering (ENG), Electronic Field Production (EFP), documentary, and other field recording applications. Adjustable from about 2 to 7', it allows you to place a microphone in close proximity to the subject, while remaining at a distance and out of the frame.

  Auray ABP poles are manufactured with sturdy lightweight aluminum ensuring portability and reliability. Ergonomic twist locks along with anti-twist alignment make length adjustment effortless, and smooth telescoping is assured even in the most challenging conditions in the field.

  The high-quality coiled cable features an XLR connector and an XLR insert connector that provide secure connections and excellent signal transfer. This cable also features a unique strain relief system that absorbs tension, secures the cable, and protects the cable from damage at the edge of the tip exit. To see a complete list of Auray's selection of boom poles, please click hereyrcbbsqx.
  Coiled XLR Cable
  • The integrated coiled XLR cable smoothly extends and retracts with the telescoping tubes
  Rean XLR Connector
  • Rean XLR connector manufactured by Rean, a trademark of Neutrik
  Versatile
  • The ABP boom poles are Ideal for distance microphone placement during ENG and EFP recording projects
  Sturdy and Lightweight
  • Each boom pole is manufactured with sturdy lightweight aluminum for portability and reliability
  Smooth Telescoping
  • The ABP boom pole allows for smooth telescoping for easy expansion and length adjustment even in extreme conditions during road use
  Twist Locks
  • The ergonomic twist locks are comfortable to grip and facilitate fast and effortless length adjustment
  Removable Tip
  • Custom removable tip and drop-through design for replacing the coiled XLR cable fast and easy, without the need of any special tools
  UPC: 847628571242
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2018 Professional Windshield has an inside depth of 18cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2018 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Rode, Sennheiser, Sanken, Sony and others.

  The WSS-2018 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • AKG C 568 EB, CK 68 ULS C460B Red
  • Azden SG(M)-1X
  • BeyerDynamic MC 716, 726, 736, 836, MCE 86 II, 87vs
  • ClockAudio C850E
  • DPA 4017
  • JVC DY-70U
  • Røde NTG-3
  • Sanken CS 3
  • Sennheiser ME 66 K6, ME 80 K3U, MKH 416, 418
  • Sony ECM 670, 678, 680S
  UPC: 847628552685

• ME 66 Supercardioid Shotgun Microphone Head yrcbbsqx
• Limited 2-Year Warranty

• K6 Microphone System Powering Module (Phantom/Battery)

• Varta - High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack) yrcbbsqx

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Auray - Universal Microphone Pistol Grip

• Auray - ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable (7')

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Auray - WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser ME 66 Supercardioid Shotgun Microphone Head

  Transducer	Condenser
  Polar Pattern	Supercardioid/lobar
  Frequency Response	40 Hz to 20 kHz ( Rating 100% users recommend this product to others. And what about you? This product has already been rated by 35 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
