Sennheiser ME67 K6 - Shotgun Microphone

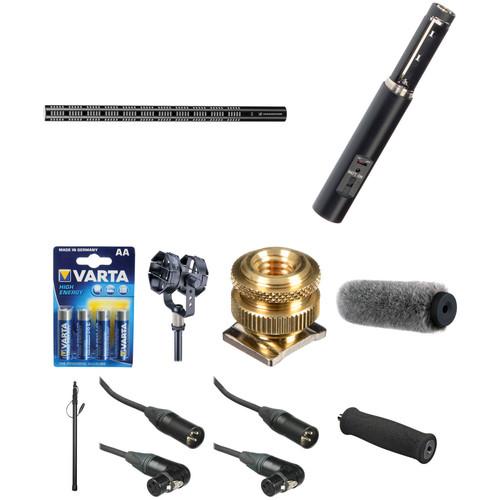

User Manual for Sennheiser ME67 K6 - Shotgun Microphone Basic Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser ME67 Supercardioid Spot Shotgun Mic Capsule The ME 67 is a long gun microphone capsule designed for use with the K6 and K6P powering modules. A highly directional microphone, it can be used where the microphone must be placed at a distance from the sound source. The mic features a matt-black, anodized, and scratch-resistant finish.
  • Lobar pick-up pattern
  • Highly directional
  • Low inherent self-noise
  • High sensitivity factor
  • Wide frequency response
  UPC: 615104032859
• Sennheiser K6 Microphone System Powering Module (Phantom/Battery) The K6 Microphone System Powering Module by Sennheiser is the compatible base for many modular capsules. It features high output levels with low noise, a switchable bass roll-off, and transformerless balanced output.

  The K6 can operate on a single AA battery (not included) or phantom power. Its on/off switch also has a battery test position, so you can be sure you have enough juice. The K6's anodized, matte-black finish will resist abrasions to maintain a professional appearance, even under rigorous usage.
  K6 Microphone System Powering Module
  • • High output, low noise operation
    • Switchable bass roll-off filter @ 100Hz
    • Transformerless balanced output
    • On/Off switch with battery test position
    • Battery or phantom powered
    • Anodized scratch-resistant finish
  UPC: 615104185715
• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack) Power any device that accepts AA cells with this 4-pack of standard, all-purpose High-Energy 1.5V AA LR6 Alkaline Batteries from Varta. These German-made cells are non-rechargeable and feature an output of 1.5V. Additionally, they offer up to 80% more power in digital cameras than Varta Simply Alkaline batteries. The "Single Press Out" type packaging enables easy opening, allowing you to extract one at a time and providing storage for unused cells.
• Audio-Technica AT8415 Universal Shockmount The lightweight, low-profile Audio-Technica AT8415 Universal Shockmount is designed for boompoles or mic stands, providing a rubber membrane suspension for isolation from motion and cable noise. Height and angle adjustment knobs are also provided.
  • Lightweight, low-profile design is ideal for boompole use
  • Reduces vibration noise transmitted through boompoles and mic stands
  • Provides a constant-tension clutch and 360° rotation
  • Compatible with 3/8"-16 and 5/8"-27 threaded stands; removable interior thread adapter
  • Replaceable rubber suspenders
  UPC: 042005309917
• Audio-Technica AT8469 Camera Shoe Mount to 5/8-27" Threaded Base Adapter This Camera Shoe Mount Adapter from Audio-Technica converts a standard shoe mount into a 5/8"-27 (outside) and 3/8"-16 (inside) threaded base so you can screw on a standard clamps and mounts for microphones or lighting accessories. UPC: 042005138913
• Auray WSS-2029 Professional Windshield for Shotgun Microphones - (29cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2029 Professional Windshield has an inside depth of 29cm and is designed for use with long shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a long shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2029 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Sennheiser, Neumann, Audio-Technica and others.

  The WSS-2029 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • Audio-Technica BP4071, BP4027 (AT 815ST)
  • Neumann KMR 82
  • Sennheiser ME 67 + K6 Capsule
  UPC: 847628552661
• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable The K-Tek KE-89CC Avalon Series Aluminum Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy aluminum design is tough enough to endure the rigors of road use, while remaining lightweight and travel-worthy. This pole features an internal coiled cable and an XLR connection at the base of the pole. A total of four aluminum sections telescope between 2' 5" to 7' 6" and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
  • Internal coiled XLR cable and connection at the base
  • The KE-89CC features a bottom-mounted three-pin XLR connection
  • Designed to fit in any standard equipment case, for ENG, EFP, and DV location production work
  • Jam-resistant collar coupling
  • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
  UPC: 791090332033
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738

• ME67 Supercardioid Spot Shotgun Mic Capsule xcuesazbxtycfzzfswzrea
• 1 Year Warranty

• K6 Microphone System Powering Module (Phantom/Battery)

• Varta - High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)

• Audio-Technica - AT8415 Low Profile Universal Shock Mount

• Audio-Technica - AT8469 Camera Shoe Mount to 5/8"-27 and 3/8"-16 Threaded Base Adapter

• Auray - WSS-2029 Professional Windshield for Shotgun Microphones - (29cm) xcuesazbxtycfzzfswzrea

• K-Tek - KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Universal Microphone Pistol Grip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser ME67 Supercardioid Spot Shotgun Mic Capsule

  Transducer	Condenser
  Polar Pattern	Supercardioid
  Frequency Response	40 Hz - 20 kHz (+/-2.5dB)
  Dynamic Range (Typical)	Not Specified by Manufacturer
  Signal-to-Noise Ratio	Not Specified by Manufacturer
  Maximum Input Sound Level	125 dB @ 1 kHz (THD = 1%)
  Power Requirements	Supplied by K6 or K6 P Power Modules
  Output Impedance	200 Ohms
  Output Connectors	Connects to K-6, or K-6P Power Supplies Only
  Case	None
  Pad	None
  Low Frequency Roll-Off	Found on K-6 and K-6P Power Supplies
  Applications	Stage, Field Recording, Interviews, Film, Video and Broadcast Production
  Dimensions	13.5 x .885" / 343 x 22.5mm
  Weight	3.57 oz / 100 g

  Box Dimensions (LxWxH)	15.3 x 1.8 x 1.7"

• Sennheiser K6 Microphone System Powering Module (Phantom/Battery)

  Gain	0 dB
  Impedance	Minimum Terminating: 1 kOhm Nominal: 200 Ohms
  Frequency Response	30 to 20,000 Hz (-1 dB)
  Low Frequency Roll-Off	On/off switchable -10 dB @ 100 Hz / -20 dB @ 50 Hz
  Output Voltage	2 V
  Phantom Power Requirements	12 to 48 V (± 4 V)
  Current Consumption	2.2 mA
  Battery Requirements	1 x AA battery
  Battery Life	150 hours maximum
  Dimensions (Diam. x L)	0.9 x 3.7" / 22 x 94 mm
  Weight	1.6 oz / 45 g

  Box Dimensions (LxWxH)	7.65 x 3.55 x 1.8"

• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)

  Battery Type	4 x AA
  Battery Chemistry	Alkaline
  Battery Voltage	1.5 V

  Box Dimensions (LxWxH)	4.75 x 3.1 x 0.65"

• Audio-Technica AT8415 Universal Shockmount

  Microphone Diameters	Minimum: 0.50" / 1.27 cm Maximum: 2.13" / 5.4 cm
  Mount Compatibility	3/8"-16 and 5/8"-27 threaded stands
  Dimensions	Height: 4.25" / 10.8 cm Depth: 2.75" / 7.0 cm Ring Diameter: 2.32" / 5.9 cm
  Weight	3.0 oz / 85.0 g

  Box Dimensions (LxWxH)	7.8 x 5.9 x 3.05"

• Audio-Technica AT8469 Camera Shoe Mount to 5/8-27" Threaded Base Adapter

  Box Dimensions (LxWxH)	6.8 x 3.6 x 0.5"

• Auray WSS-2029 Professional Windshield for Shotgun Microphones - (29cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	11.4" / 29 cm
  Maximum Noise Attenuation	40 dB in 25 mph / 40 km/h Wind

  Box Dimensions (LxWxH)	14.2 x 4.7 x 4.6"

• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

  Material	Aluminum
  Sections	4
  Load Capacity	Not specified by manufacturer
  Length	2' 5" to 7' 6" (0.7 to 2.3 m)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	33.0 x 3.0 x 2.8"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"
