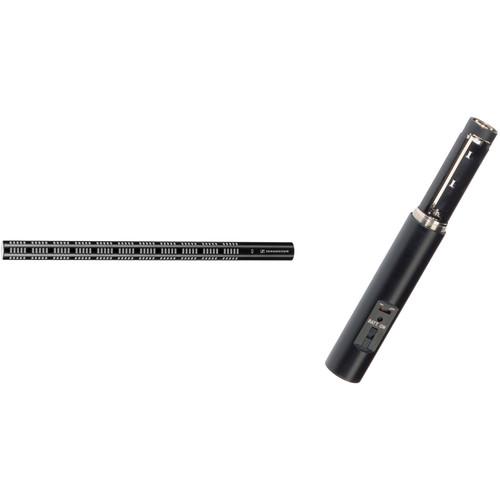

User Manual for Sennheiser ME67 K6 - Super-Cardioid Spot Shotgun Condenser Microphone Capsule with K6 Power Supply Click to enlarge the picture
Contents of the user manual for the Sennheiser ME67 K6 - Super-Cardioid Spot
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser ME67 K6 - Super-Cardioid Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The ME 67 is a long gun microphone capsule designed for use with the K6 and K6P powering modules. A highly directional microphone, it can be used where the microphone must be placed at a distance from the sound source. Matt black, anodised, scratch resistant finish. - Sennheiser ME67 - Super-Cardioid Spot Shotgun Mic Capsule The ME 67 is a long gun microphone capsule designed for use with the K6 and K6P powering modules. A highly directional microphone, it can be used where the microphone must be placed at a distance from the sound source. Matt black, anodized, scratch resistant finish. UPC: 615104032859
- Sennheiser K6 Microphone System Powering Module (Phantom/Battery) The K6 Microphone System Powering Module by Sennheiser is the compatible base for many modular capsules. It features high output levels with low noise, a switchable bass roll-off, and transformerless balanced output.
The K6 can operate on a single AA battery (not included) or phantom power. Its on/off switch also has a battery test position, so you can be sure you have enough juice. The K6's anodized, matte-black finish will resist abrasions to maintain a professional appearance, even under rigorous usage. - K6 Microphone System Powering Module
-
- High output, low noise operation
- Switchable bass roll-off filter @ 100Hz
- Transformerless balanced output
- On/Off switch with battery test position
- Battery or phantom powered
- Anodized scratch-resistant finish
UPC: 615104185715 In the Box - ME67 - Super-Cardioid Spot Shotgun Mic Capsule utzwvfebeuabbeyycfzrvqwartyscutstxbu
- 1 Year Warranty
- K6 Microphone System Powering Module (Phantom/Battery)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ME67 K6 - Super-Cardioid Spot Shotgun Condenser Microphone Capsule with K6 Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ME67 - Super-Cardioid Spot Shotgun Mic Capsule
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40 Hz - 20 kHz (+/-2.5dB) | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | Maximum Input Sound Level | 125 dB @ 1 kHz (THD = 1%) | | Power Requirements | Supplied by K6 or K6 P Power Modules | | Output Impedance | 200 Ohms | | Output Connectors | Connects to K-6, or K-6P Power Supplies Only | | Case | None | | Pad | None | | Low Frequency Roll-Off | Found on K-6 and K-6P Power Supplies | | Applications | Stage, Field Recording, Interviews, Film, Video and Broadcast Production | | Dimensions | 13.5 x .885" (343 x 22.5mm) | | Weight | 3.57 oz. (100 g) | | | | Box Dimensions (LxWxH) | 15.3 x 1.8 x 1.7" | - Sennheiser K6 Microphone System Powering Module (Phantom/Battery)
| Gain | 0 dB | | Impedance | Minimum Terminating: 1 kOhm
Nominal: 200 Ohms | | Frequency Response | 30 to 20,000 Hz (-1 dB) | | Low Frequency Roll-Off | On/off switchable
-10 dB @ 100 Hz / -20 dB @ 50 Hz | | Output Voltage | 2 V | | Phantom Power Requirements | 12 to 48 V (± 4 V) | | Current Consumption | 2.2 mA | | Battery Requirements | 1 x AA battery | | Battery Life | 150 hours maximum | | Dimensions (Diam. x L) | 0.9 x 3.7" / 22 x 94 mm | | Weight | 1.6 oz / 45 g | | | | Box Dimensions (LxWxH) | 7.65 x 3.55 x 1.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
