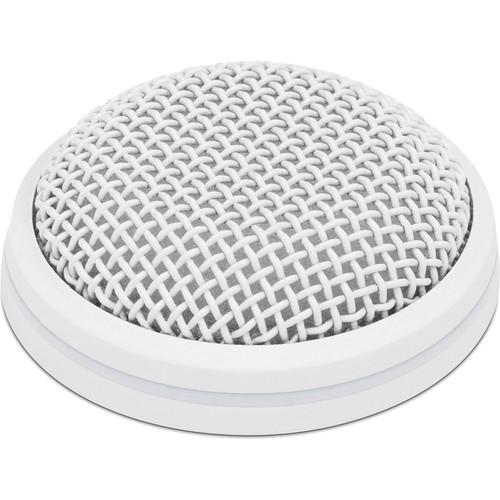

User Manual for Sennheiser MEB 102 Omnidirectional Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MEB 102 Omnidirectional Boundary Microphone
- Product category: Boundary Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Boundary Microphones
|
User manual for the Sennheiser MEB 102 Omnidirectional Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The white MEB 102 Omnidirectional Boundary Microphone from Sennheiser is for capturing audio. It is used in various environments in audio applications for permanent installations such as in conference rooms, boardrooms, lecture halls, school auditoriums and more. It features an omnidirectional polar pattern and has a frequency response of 40 Hz to 20 kHz. The MEB 102 boundary microphone allows easy surface installation in tables or ceiling tiles. It is powered by 24 to 48V phantom power. This capsule provides excellent speech intelligibility. The MEB 102 terminates in an XLR-3M connector. Also included are hex-nut and rubber ring for mounting. UPC: 615104230149 In the Box Sennheiser MEB 102 Omnidirectional Boundary Microphone (White) 2 x Rubber Rings for Mounting Hex Nut for Mounting Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MEB 102 Omnidirectional Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MEB 102 Specs | | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 21 dB A-Weighted
31 dB CCIR | | Maximum SPL | 125 dB SPL | | Impedance | 200 Ohms | | Sensitivity | 16 mV/Pa | | Dynamic Range | 104 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 24 V
48 V | | Operating Temperature | 32 to 104°F / .00 to 40.00°C | | Diameter | 1.12" / 28.5 mm | | Weight | 2.05 oz / 58 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.5 x 3.4 x 1.6" |
