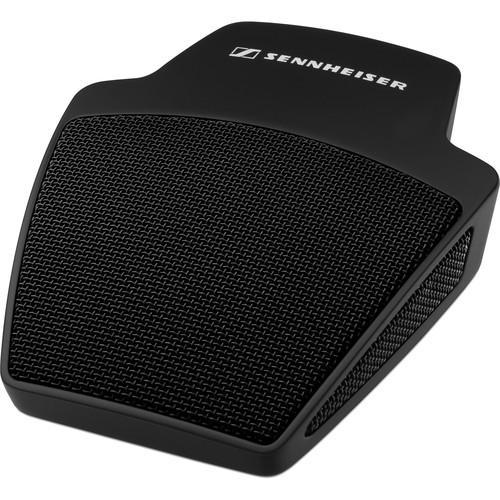

User Manual for Sennheiser MEB 114 Cardioid Table Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MEB 114 Cardioid Table Boundary
- Product category: Boundary Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Boundary Microphones
|
User manual for the Sennheiser MEB 114 Cardioid Table Boundary contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The black Sennheiser MEB 114 is a cardioid boundary microphone designed to provide accurate and intelligible speech reproduction for meetings, conferences, and presentations. It can be placed temporarily on a table or permanently mounted if desired.Its cardioid polar pattern rejects sound from behind the capsule, giving a more focused pickup zone. Its wide frequency range of 40 Hz to 20 kHz and high maximum SPL of 140 dB deliver clear audio free of distortion. The MEB 114 terminates to a mini-XLR jack. A 9.8' mini-XLR to XLR 3-pin cable is included for connection to a mixer or microphone preamp. The mic operates on 24 to 48V phantom power and requires no batteries. - The cardioid polar pattern has a wide directional characteristic, which rejects sound hitting the rear of the microphone
- Unobtrusive boundary microphone allows for surface installation in tables or ceiling tiles
- Can be installed permanently or used as a portable mobile microphone
- Wide frequency response and high maximum SPL ensure accurate and distortion-free sound
- Includes mini-XLR to XLR 3-pin for compatibility with standard microphone preamps
UPC: 615104230330 In the Box Sennheiser MEB 114 Cardioid Table Boundary Microphone (Black) 9.8' Mini XLR to 3-Pin XLR Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MEB 114 Cardioid Table Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MEB 114 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 29 dB A-Weighted
39 dB CCIR | | Maximum SPL | 140 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Sensitivity | 10 mV/Pa | | Dynamic Range | 111 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 9.84' / 3 m | | Operating Current Consumption | 1.5 mA | | Operating Voltage | 24 to 48 V | | Operating Temperature | 14.00 to 122.00°F / -10 to 50°C | | Dimensions (W x H x D) | 3.3 x 1.0 x 3.9" / 85.0 x 25.0 x 100.0 mm | | Weight | 10.26 oz / 291 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.1 x 7.0 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
