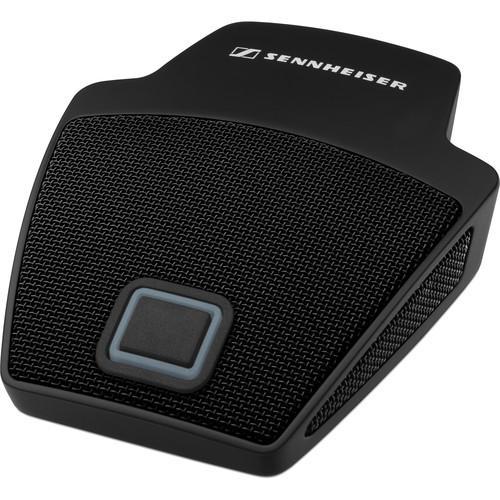

User Manual for Sennheiser MEB 114-S Cardioid Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MEB 114-S Cardioid Boundary Microphone
- Product category: Boundary Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Boundary Microphones
|
User manual for the Sennheiser MEB 114-S Cardioid Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The black MEB 114-S Cardioid Boundary Microphone from Sennheiser is for capturing audio in applications such as conferences, teleconferences, presentations in boardrooms, lecture halls, school auditoriums and more. It features a cardioid polar pattern and has a frequency response of 40 Hz to 20 kHz. It also features programmable modes for On, On/Off, PTT, and PTM modes and TTL Logic out for media/camera control systems. It is built with a bi-color LED status indicator.The MEB 114-S boundary microphone allows easy surface installation on tables or ceiling tiles. It is powered by 48V phantom power. This mic provides excellent speech intelligibility and features a low frequency roll off switch on the underside of the unit. The MEB 114 terminates in a mini XLR-3 pin connector. A 9.8' output cable is included to connect to a mixer-amplifier. - A cardioid pattern has a wide directional characteristic. Sound hitting the rear of the microphone is filtered out completely
- Programmable modes for On, On/Off, PTT, PTM modes
- TTL logic out for media/camera control systems
- Unobtrusive boundary microphone allows for surface installation on tables or ceiling tiles
- Exceptional immunity from RF interference
UPC: 615104230392 In the Box Sennheiser MEB 114-S Cardioid Boundary Microphone (Black) 9.8' Mini XLR to 3-Pin XLR Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MEB 114-S Cardioid Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MEB 114-S Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 29 dB A-Weighted
39 dB CCIR | | Maximum SPL | 140 dB SPL | | Impedance | 200 Ohms | | Sensitivity | 10 mV/Pa | | Dynamic Range | 111 dB A-Weighted | | | | Output Connectors | 1 x 5-Pin XLR | | Operating Current Consumption | 5.3 mA | | Operating Voltage | 48 V | | Operating Temperature | 14.00 to 122.00°F / -10 to 50°C | | Length | 3.94" / 100 mm | | Diameter | 0.98" / 25 mm | | Weight | 10.26 oz / 291 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.1 x 6.8 x 2.4" |
