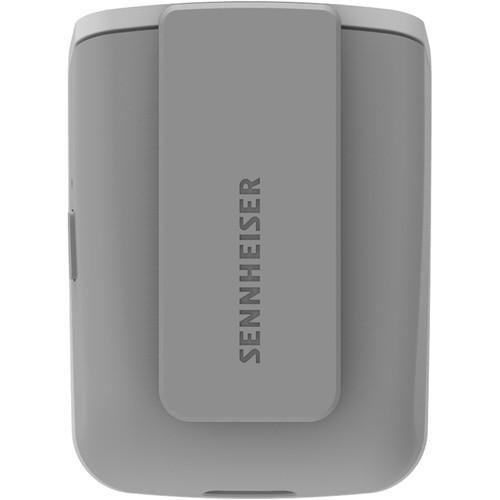

User Manual for Sennheiser Memory Mic Wearable Wireless Smartphone Mic Click to enlarge the picture
Contents of the user manual for the Sennheiser Memory Mic Wearable Wireless Smartphone
- Product category: Mobile Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Mobile Microphones
 |
User manual for the Sennheiser Memory Mic Wearable Wireless Smartphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser Memory Mic: Unforgettable Sound for your Smartphone Read More - The Sennheiser Memory Mic: High Quality + Versatile! - Hands-On Review
- Sennheiser MemoryMic Music
- Sennheiser MemoryMic Vlogger

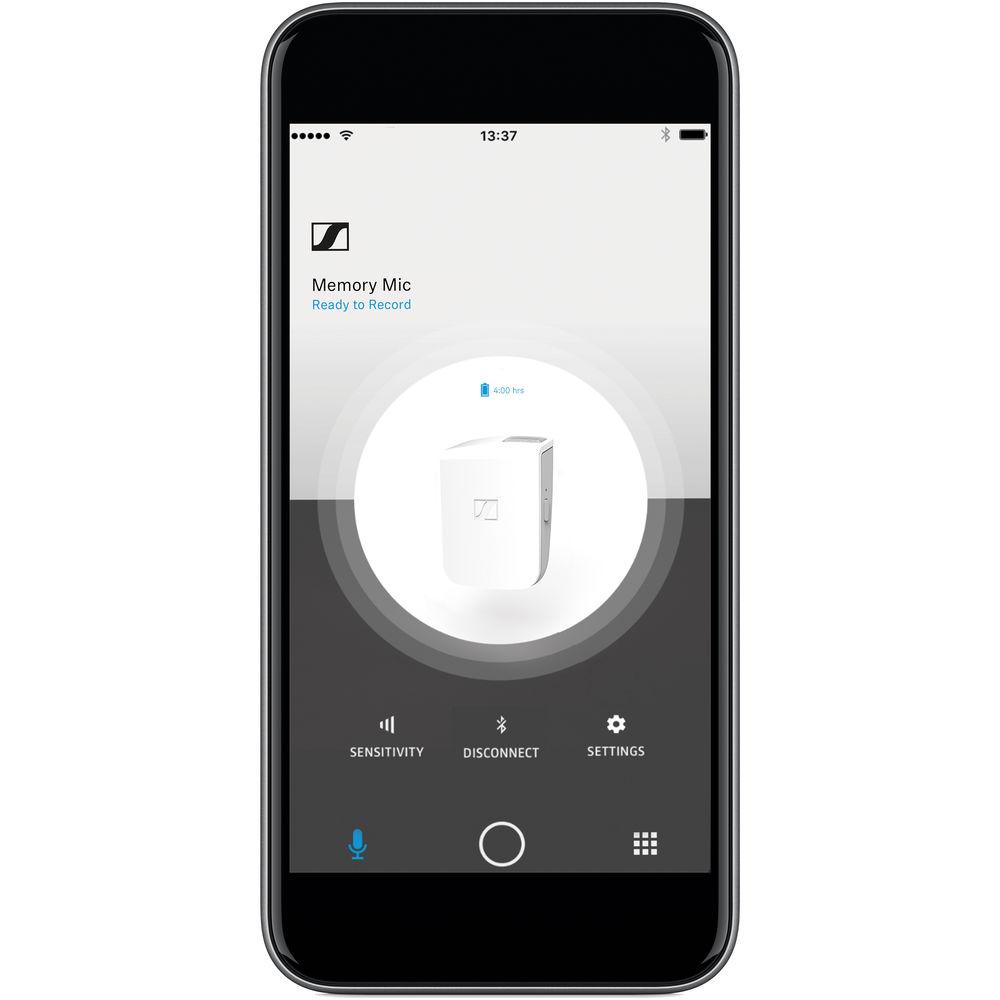

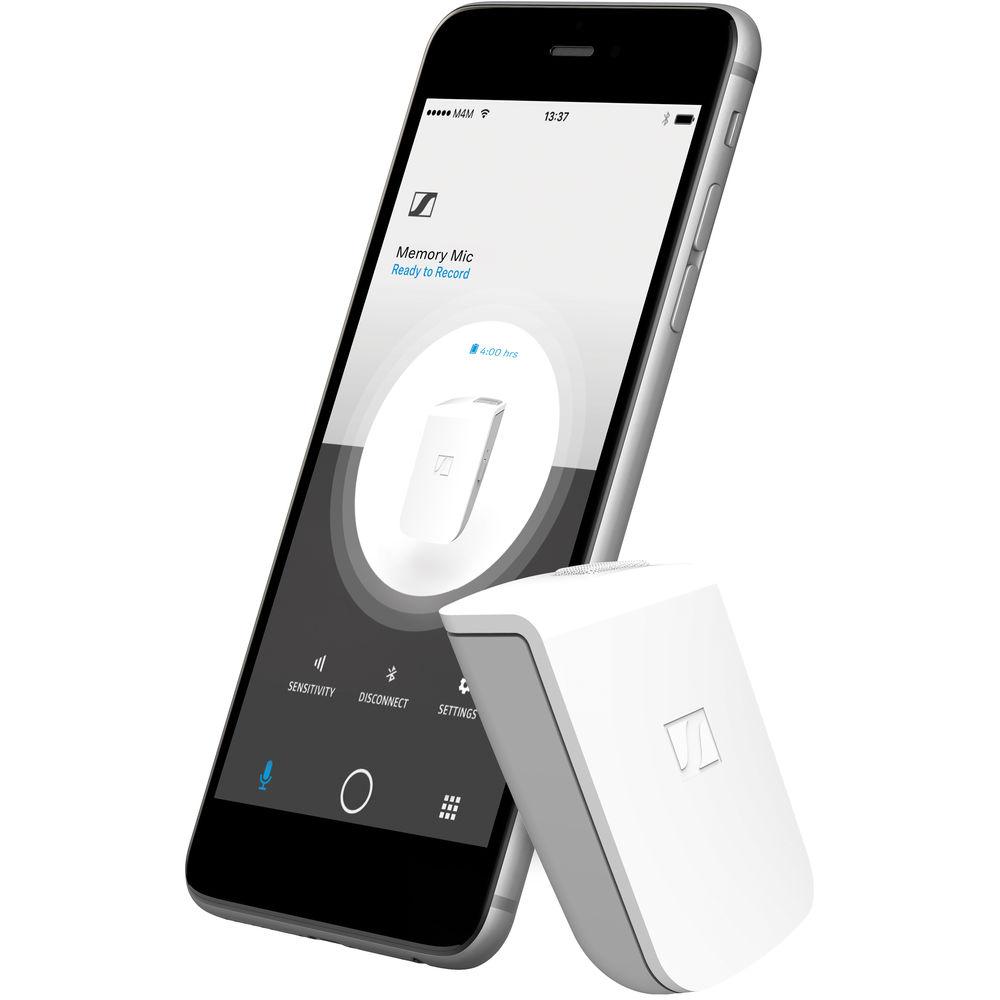

The white Sennheiser Memory Mic is a wireless and wearable omnidirectional condenser microphone designed to deliver reliable, high-quality audio capture and easy integration with mobile devices for journalists, vloggers, presenters, and more. It records and stores up to four hours of 16-bit/48 kHz audio to its internal storage while the built-in, USB-rechargeable battery keeps it running without an external power source.After connecting the Memory Mic to your smartphone via Bluetooth, you can take advantage of convenient recording, transferring, and one-touch audio/video synchronization through the downloadable Sennheiser app. Once you've used the app to start recording video on your smart phone and audio on the Memory Mic, you don't need to maintain the Bluetooth connection between the mic and the phone; this allows you to position the mic as close to your subject as necessary for optimum audio results, even if that's beyond the range of your Bluetooth connection. After recording, use the app to sync the audio and video via Bluetooth. The lightweight, compact, and rugged housing is easily attachable to clothing with the Memory Mic's magnetic clip. Safely contained in the body is the omnidirectional condenser element, which offers high SPL handling and a frequency response of 100 Hz to 20 kHz. The Memory Mic includes a USB cable for simple and fast charging. - Versatile Use
- Ideal for mobile journalists, vloggers, presenters, social media content creators, interviewers, and parents
- Easy Operation
- Record, store, and sync audio in four easy steps:
- Download and launch the Sennheiser Memory Mic application

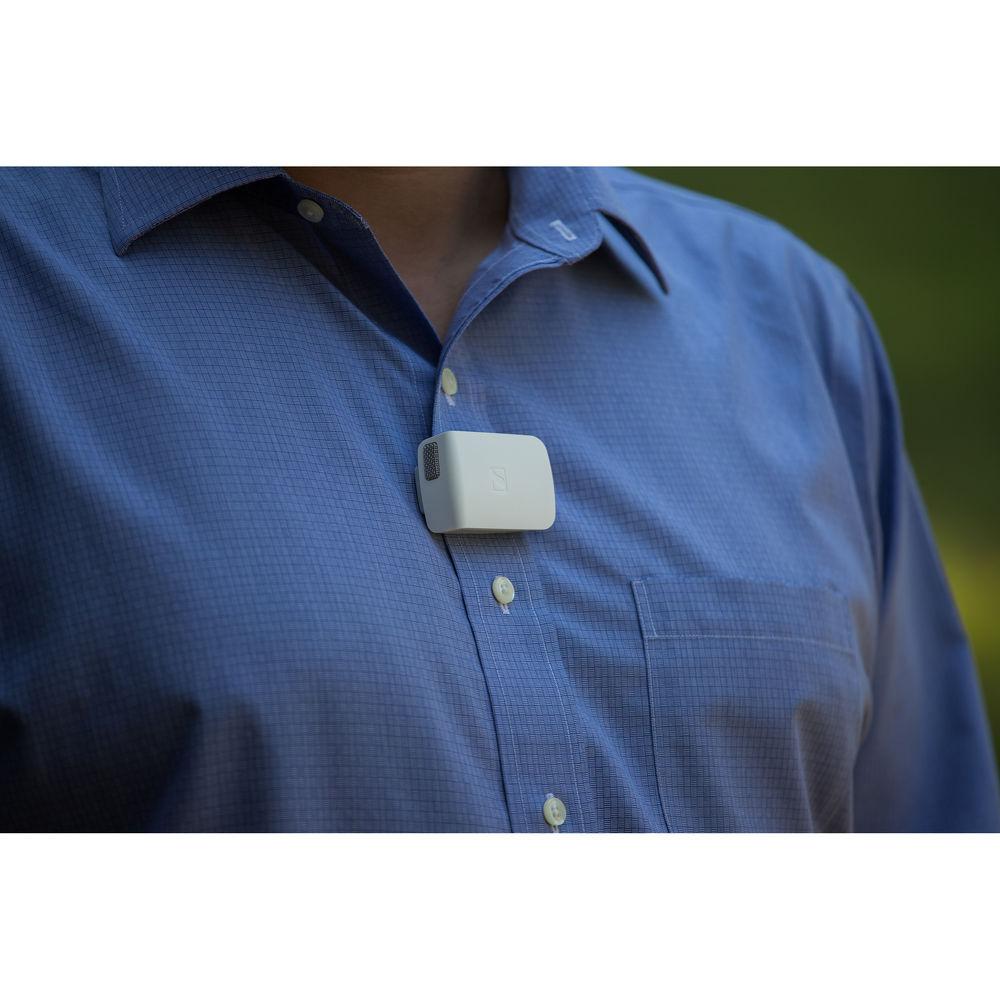

- Sync the Memory Mic to your device using Bluetooth & clip it to your shirt
- When you're ready to record, start recording the video using the Sennheiser app
- Sync the audio recorded on the Memory Mic to your video using the Sennheiser app
- Wireless Connectivity
- The Memory Mic connects via Bluetooth to your smartphone for initial setup and then wirelessly records audio free of drop-outs, at any distance from the phone. It records up to four hours of audio at 16-bit/48 kHz resolution to the internal storage while the built-in rechargeable battery provides untethered operation.
- One-Touch Audio/Video Synchronization
- After recording, use the Sennheiser app to transfer the audio to your smartphone and synchronize it with the video. No worries about audio/video offsets!
UPC: 615104313651 In the Box Sennheiser Memory Mic Wearable Wireless Smartphone Mic (White) USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Memory Mic Wearable Wireless Smartphone Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser Memory Mic Specs | Bluetooth Frequency | 2.4 to 2.4835 GHz | | Transmission Protocol | Bluetooth 4.1 and higher
WLAN IEEE 802.11 b/g/n | | RF Output Power | 10 mW | | Equivalent Noise Level | 28 dBA SPL | | Maximum SPL | 119 dB (1 kHz) | | Microphone Type | Pre-polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 100 Hz to 20 kHz | | Digital Resolution | 16-bit/48 kHz | | Battery Life | Up to 4 hours | | Charging Time | Approximately 1 hour for 70% charge
Approximately 2 hours for 100% charge | | Battery | Built-in LiPo rechargeable battery
3.7 VDC, 360 mAh | | Charging | USB, 5 V, 500 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Dimensions (H x W x D) | 2.0 x 1.5 x 0.6" / 51 x 37 x 16 mm (approximately) | | Weight | 1.1 oz / 30 g (approximately) | | | | Package Weight | 0.33 lb | | Box Dimensions (LxWxH) | 8.15 x 5.2 x 1.45" |
