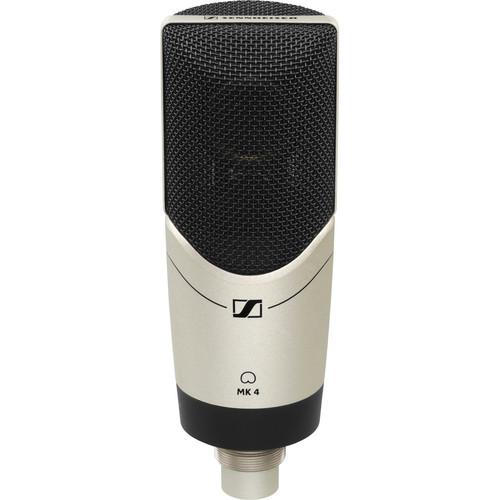

User Manual for Sennheiser MK 4 Large-Diaphragm Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MK 4 Large-Diaphragm Studio Condenser
- Product category: Large Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Large Diaphragm Condenser
|
User manual for the Sennheiser MK 4 Large-Diaphragm Studio Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The MK 4 Large-Diaphragm Studio Condenser Microphone from Sennheiser is a condenser microphone with fine resolution and sound quality. It can be used for home studio engineers, production studios, and sound reinforcement applications.The MK 4 features a 1" large-diaphragm transducer for a full sound, a wide-frequency response, and low noise. The mic element is shockmounted to eliminate structure-borne noise and vibration. Its sensitivity and frequency response make it well suited for general vocal recording, instruments, amplifier cabinets, and more. - Large-diaphragm capsule (1")
- 24K gold-plated diaphragm
- Capsule shockmounted internally to minimize structure-borne noise
- Designed for project studios and stage use
- Low inherent self-noise and high maximum SPL
UPC: 615104186057 In the Box Sennheiser MK 4 Large-Diaphragm Studio Condenser Microphone MZQ 4 Microphone Clamp Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MK 4 Large-Diaphragm Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MK-4 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 10 dB A-Weighted
20 dB CCIR | | Maximum SPL | 140 dB SPL | | Impedance | 50 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | 25 mV/Pa | | Dynamic Range | 130 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.1 mA | | Operating Voltage | 48 V | | Operating Temperature | 32 to 104.00°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Length | 6.30" / 160 mm | | Diameter | 2.24" / 57 mm | | Weight | 1.07 lb / 485 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.1 x 4.7 x 3.2" |
