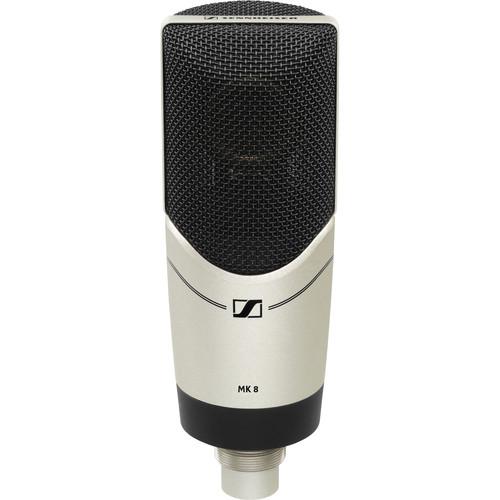

User Manual for Sennheiser MK 8 Multiple-Pattern Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MK 8 Multiple-Pattern Large-Diaphragm Condenser
- Product category: Large Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Large Diaphragm Condenser
|
User manual for the Sennheiser MK 8 Multiple-Pattern Large-Diaphragm Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Designed to bring multiple polar pattern flexibility to home and project studios, the MK 8 Multiple-Pattern Large-Diaphragm Condenser Microphone from Sennheiser features dual 24K gold-plated 1" diaphragms, allowing for a selection between omnidirectional, wide cardioid, cardioid, supercardioid, and figure-8 polar patterns. A 3-position pad switch lets you select between 0, 10, and 20 dB of attenuation, allowing the MK 8 to be used on a variety of sources. The controls on the mic are rounded out by a selectable low-cut filter at 60 and 100 Hz.
To reduce handling noise and internal vibration, the MK 8's capsule is internally shockmounted within its metal housing. A microphone clamp and storage pouch are included. - Dual-diaphragm true condenser microphone
- Five switchable polar patterns
- 3-position switchable low-cut/roll-off filter
- Two 24-carat gold-plated 1" diaphragms
- Safely sheltered electronics
- Designed and made in Germany
UPC: 615104254152 In the Box Sennheiser MK 8 Multiple-Pattern Large-Diaphragm Condenser Microphone MZQ 4 Microphone Clamp Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MK 8 Multiple-Pattern Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MK 8 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional, Supercardioid, Wide-Angle Cardioid | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 10 dB A-Weighted | | Maximum SPL | 142 dB SPL | | Pad | -10 dB
-20 dB | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 14.1 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 60 Hz
6 dB/Octave @ 100 Hz | | Dynamic Range | 132 dB | | | | Operating Current Consumption | 4.1 µA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | 32 to 104.00°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Length | 6.30" / 160 mm | | Diameter | 2.24" / 57 mm | | Weight | 1.07 lb / 485 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 10.3 x 4.8 x 3.2" |
