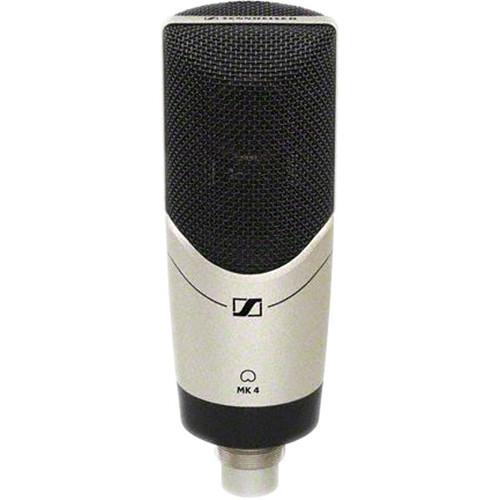

User Manual for Sennheiser MK4 Digital Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MK4 Digital Cardioid Condenser Microphone
- Product category: USB Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser USB Microphones
|
User manual for the Sennheiser MK4 Digital Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Designed for use directly with computers and iOS devices, the MK 4 Digital from Sennheiser is a large-diaphragm condenser microphone operating in a cardioid polar pattern. Its analog components are modeled on the Sennheiser MK 4, so it features the same 24-carat gold-plated diaphragm, rugged metal housing, 20 Hz to 20 kHz frequency response, and a high SPL, making it suitable for guitars, vocals, amplifiers, percussion, and more.
Where this microphone differs is on the digital side: Sennheiser has teamed up with Apogee to build a PureDigital converter directly into the microphone. This converter captures audio at high resolutions and sample rates—up to 24-bit/94 kHz—and ports audio directly into computers and iOS devices, utilizing a digital preamp to ensure a quality signal. To provide connecting options, a lightning cable and a USB cable are included, as are a swivel mount and a pouch for transporting the mic.
This mic's digital specs and analog heft make it quite suitable for podcasters and journalists, giving such practitioners the warmth and detail of a condenser microphone. The mic itself was constructed in Germany, which should inspire confidence in the meticulous precision of its design. So if you're in the business of creating content from your project studio—be it musical, journalistic, or anywhere in between—the sturdy design, richly clear sound, and high-quality conversion of this microphone is something which might distinguish you from the pack. - Computer & iOS Compatibility
- The microphone can be used with common media-production programs such as Logic Pro X, Final Cut Pro, Adobe Premiere, Pro Tools or Ableton Live. It can also interface with iOS recording apps such as GarageBand and Apogee MetaRecorder. The microphone works with Music Memos and any Core Audio Apps on iOS and Mac. On Windows computers it works with ASIO (with freeware driver Asio4all), MME/Direct Sound, and WASAPI-based audio applications.
- Key Features at a Glance
-
- Built-in Apogee PureDigital A/D Converter
- Digitally controlled mic preamp
- Up to 24-bit/96 kHz A/D conversion
- Includes lightning cable and USB cable
- 1" Large-diaphragm capsule
- True condenser design
- 24-carat gold-plated diaphragm
- Full metal housing
- Capsule shockmounted internally to minimize structure-borne noise
- Designed for project studios and stage use
- Low inherent self-noise
- High maximum SPL
- Made in Germany
- Suitable Areas of Application
-
- Speech / vocals
- Acoustic guitars
- Guitar amplifiers
- Grand piano
- Strings
- Wind instruments
- Drums and percussion
UPC: 615104276956 In the Box Sennheiser MK4 Digital Cardioid Condenser Microphone Swivel Mount USB Cable Lightning Cable Mic Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MK4 Digital Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MK4 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | Cardioid: 10 dB A-Weighted
Cardioid: 20 dB CCIR | | Maximum SPL | Cardioid: 140 dB SPL Peak | | Impedance | Cardioid: 50 Ohms | | Sensitivity | Cardioid: 25 mV/Pa | | Dynamic Range | Cardioid: 130 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Operating Temperature | 32.00 to 104.00°F / 0 to 40°C | | Storage Temperature | -4 to 158.00°F / -20 to 70°C | | Length | 6.30" / 160 mm | | Diameter | 2.24" / 57 mm | | Weight | 1.07 lb / 485 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.2 x 4.8 x 3.2" |
