Sennheiser MKE 600 Shotgun Mic with

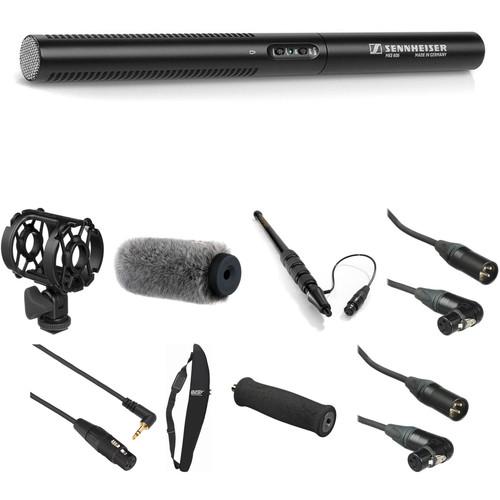

User Manual for Sennheiser MKE 600 Shotgun Mic with Boompole, Bag & Shockmount Complete HDSLR Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser MKE 600 Shotgun Microphone The MKE 600 from Sennheiser is a shotgun microphone designed for use with a camcorder or video DSLR. Building on the company's extensive expertise in designing shotgun microphones, it is able to take on even the toughest video sound challenges, while still being compact and short relative to previous models. With its high level of directivity, the microphone focuses on the sounds in front of the camera, while attenuating unwanted sound coming from the sides and rear.

  An included foam windshield reduces the effect of wind noise, while a switchable low-cut filter adds additional wind and handling noise attenuation. The MKE 600 can be phantom powered or operated on an AA battery for about 150 hours. An integrated camera shoe and shock mount provides convenient on camera mounting. The rugged and all metal housing means the microphone will function perfectly in outdoor recording situations.
  • Flexible use on any camera due to compact form
  • Exceptional directivity
  • Maximum rejection of side noise
  • Switchable low-cut filter
  • Phantom or battery powering
  • Battery switch with "Low Batt" indicator
  • All-metal housing
  • Very good suppression of structure-borne noise
  • Minimizes wind and handling noise
  • Supplied with foam windshield and shock mount
  • Effective wind noise suppression with optional blimp
  UPC: 615104223493
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Auray WSS-2014 Professional Windshield for Shotgun Microphones - (14cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2014 Professional Windshield has an inside depth of 14cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2014 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio-Technica, Neumann, Røde, Sanken, Sennheiser and others.

  The WSS-2014 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • Audio-Technica AT 835ST (BP4029), AT 897
  • Neumann KMR 81i
  • Panasonic WM-L30
  • Røde NTG-1, NTG-2, VideoMic
  • Sanken CS 1, CS 2
  • Sennheiser MKH-60
  • Sony DXC-637, DXC-D30P
  UPC: 847628552692
• Auray ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable (9') The ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable from Auray is designed to accommodate Electronic News Gathering (ENG), Electronic Field Production (EFP), documentary, and other field recording applications. Adjustable from about 2 to 9', it allows you to place a microphone in close proximity to the subject, while remaining at a distance and out of the frame.

  Auray ABP poles are manufactured with sturdy lightweight aluminum ensuring portability and reliability. Ergonomic twist locks along with anti-twist alignment make length adjustment effortless, and smooth telescoping is assured even in the most challenging conditions in the field.

  The high-quality coiled cable features an XLR connector and an XLR insert connector that provide secure connections and excellent signal transfer. This cable also features a unique strain relief system that absorbs tension, secures the cable, and protects the cable from damage at the edge of the tip exit. To see a complete list of Auray's selection of boom poles, please click hereusvvrcvffxdbsutx.
  Coiled XLR Cable
  • The integrated coiled XLR cable smoothly extends and retracts with the telescoping tubes
  Rean XLR Connector
  • Rean XLR connector manufactured by Rean, a trademark of Neutrik
  Versatile
  • The ABP boom poles are Ideal for distance microphone placement during ENG and EFP recording projects
  Sturdy and Lightweight
  • Each boom pole is manufactured with sturdy lightweight aluminum for portability and reliability
  Smooth Telescoping
  • The ABP boom pole allows for smooth telescoping for easy expansion and length adjustment even in extreme conditions during road use
  Twist Locks
  • The ergonomic twist locks are comfortable to grip and facilitate fast and effortless length adjustment
  Removable Tip
  • Custom removable tip and drop-through design for replacing the coiled XLR cable fast and easy, without the need of any special tools
  UPC: 847628571174
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable (1.5') The 1.5' XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug from Kopul is a studio-quality cable that can be used for converting a mono-microphone or a line-level signal to a 3.5mm stereo signal for devices such as camcorders, DSLR cameras, recorders, and more. It can be utilized with dynamic mics and self-powered XLR condenser microphones.The XRSM cable is engineered to provide protection against EMI, RFI, and static noise, offering a gold-plated 3.5mm (1/8") right-angle stereo mini-plug connector with molded strain relief, as well as a 3-pin XLR-F connector with a chuck-style strain relief by REAN. The XRSM cable is built with 24-gauge OFC (oxygen-free copper) conductors, spiral shielding, and has PE insulation, which produces a quiet cable with good conductivity ensuring a clean transfer of the audio signals.
  XLR to Mini-Plug Connection
  • XLR female to stereo male mini-plug cable is ideal for connecting professional-quality microphones to the stereo mini-plug inputs on DSLR cameras, camcorders, or audio recorders
  Shielding
  • The copper spiral shielding provides more than 90% coverage and offers superb rejection of radio frequency (RF) and electromagnetic (EM) interference
  Conductivity
  • 24-gauge oxygen-free copper (OFC) conductors and polyethylene insulation offer excellent conductivity for a good transfer of audio signal
  Connectors
  • Studio-quality gold-plated 1/8" (3.5mm) right-angle stereo mini-plug connector and a female XLR connector provide clear signal transfer
  Strain Relief
  • The REAN XLR connector with chuck-style strain relief and the molded strain relief of the mini-plug connector create a durable cable
  UPC: 847628596665
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229

• MKE 600 Shotgun Microphone usvvrcvffxdbsutx
• Shock Mount for Camera Light-Shoe
• Foam Windshield
• Carry Pouch
• Limited 1-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Auray - WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)

• Auray - ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable (9')

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable (1.5')

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Auray - Universal Microphone Pistol Grip

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKE 600 Shotgun Microphone

  Polar Pattern	Super-cardioid/Lobar
  Frequency Response	40 Hz to 20 kHz
  Sensitivity	-21 mV/Pa with 48 V powering -19 mV/Pa with battery powering
  Maximum Sound Pressure Level (SPL)	132 dB with 48 V powering 126 dB with battery powering
  EIN	15 dB(A) with 48 V powering 16 dB(A) with battery powering
  Low Frequency Roll-Off	Yes
  Power Requirements	48 V +/-4 V (P48, IEC 61938) via XLR-3 or AA size battery/rechargeable battery (1.5/1.2 V)
  Current Consumption	4.4 mA with P48 powering
  Battery Operation Times	Approximately 150 hours "Low Batt" Indicator: <1.05 V with approximately 8 hours of remaining operating time after initial display
  Output Connectors	1 x XLR
  Operating Temperature	-14 to 140°F / -10 to 60°C
  Dimensions	Diameter: 0.8" / 20 mm Length: 10.1" / 256 mm
  Weight	4.5 oz / 128 g (without battery)

  Box Dimensions (LxWxH)	13.0 x 5.4 x 3.4"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Auray WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	5.5" / 14 cm
  Material	Foam

  Box Dimensions (LxWxH)	11.4 x 4.1 x 3.2"

• Auray ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable (9')

  Sections	5
  Minimum Length	2.4' (0.73 m)
  Maximum Length	9.3' (2.8 m)
  Weight	1.9 lb (0.86 kg)

  Box Dimensions (LxWxH)	33.0 x 3.0 x 1.0"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable (1.5')

  Cable Type	XLR-F to 1/8" / 3.5 mm stereo right-angle mini male
  Cable Gauge	24 AWG
  Connector 1	3-pin XLR female
  Connector 2	1/8" / 3.5 mm right-angle stereo mini-plug
  Shielding	Copper spiral shielding with > 90% coverage
  Conductor	Oxygen-free copper
  Temperature Rating	176° F / 80° C
  Voltage	30 V
  Dielectric (Insulation)	FPE (foam polyethylene) 0.035" / 0.9 mm OD
  Outer Diameter	0.2" / 4.3 mm
  Length	1.5' / 0.5 m

  Box Dimensions (LxWxH)	9.0 x 6.5 x 1.0"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"
