User Manual for Sennheiser MKE 600 Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKE 600 Shotgun Microphone
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
 |
User manual for the Sennheiser MKE 600 Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

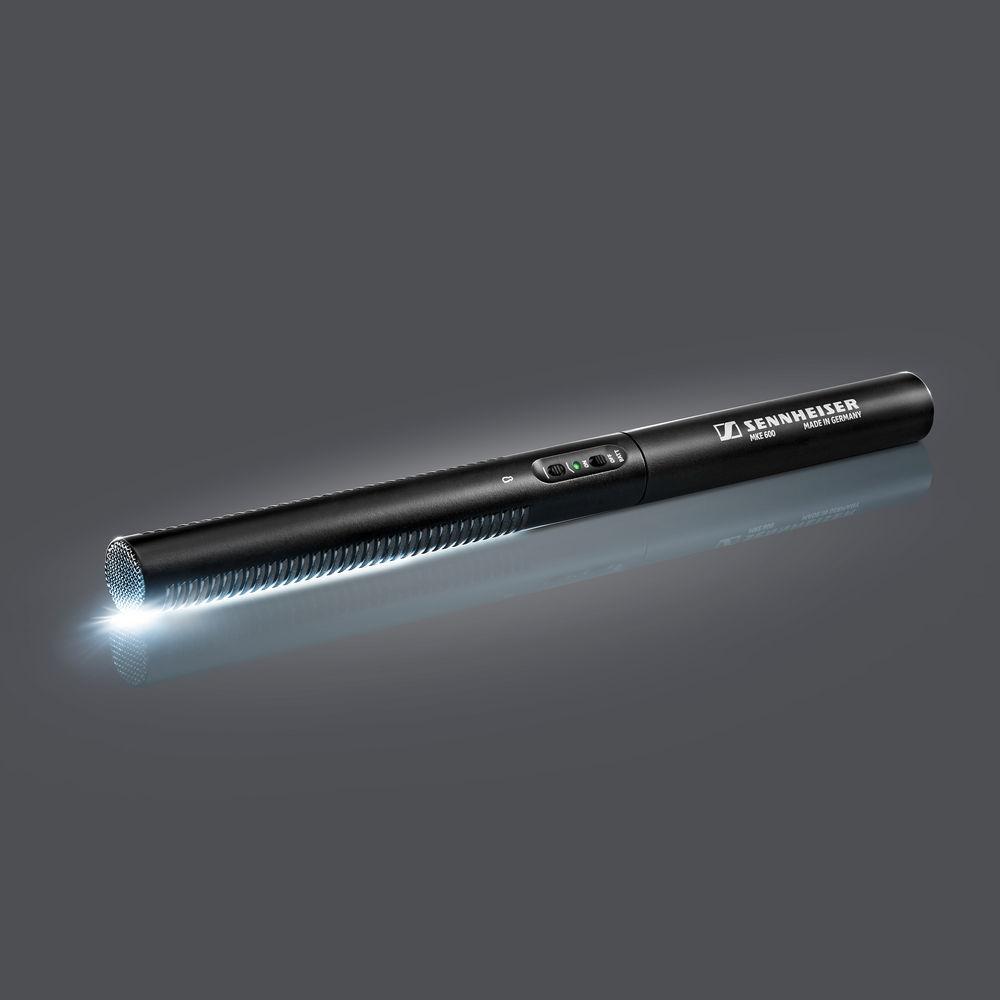

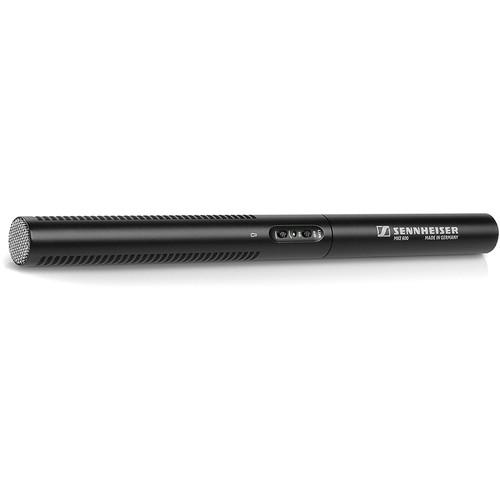

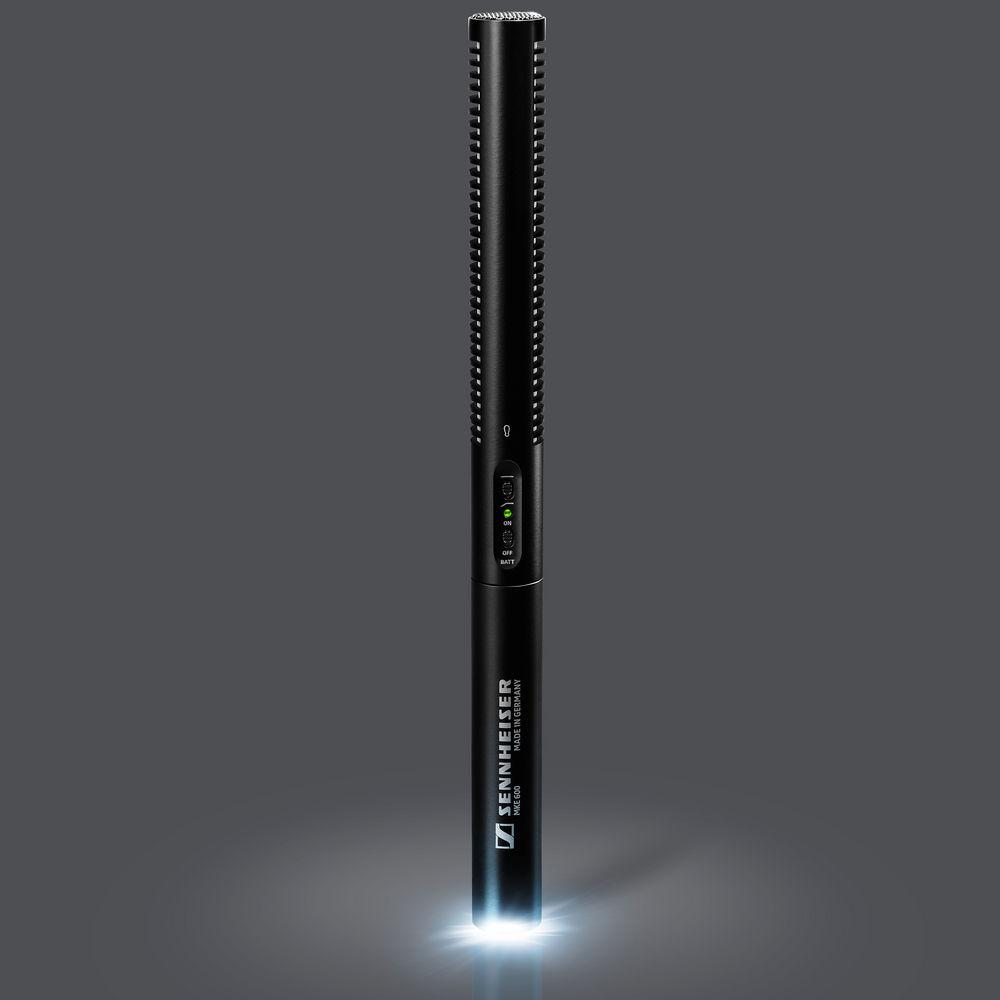

Product description The New Sennheiser MKE 600 Shotgun Microphone Read More The MKE 600 from Sennheiser is a shotgun microphone designed for use with a camcorder or video DSLR. Building on the company's extensive expertise in designing shotgun microphones, it is able to take on even the toughest video sound challenges, while still being compact and short relative to previous models. With its high level of directivity, the microphone focuses on the sounds in front of the camera, while attenuating unwanted sound coming from the sides and rear.
An included foam windshield reduces the effect of wind noise, while a switchable low-cut filter adds additional wind and handling noise attenuation. The MKE 600 can be phantom powered or operated on an AA battery for about 150 hours. An integrated camera shoe and shock mount provides convenient on camera mounting. The rugged and all metal housing means the microphone will function perfectly in outdoor recording situations. - Flexible use on any camera due to compact form
- Maximum rejection of side noise
- Switchable low-cut filter
- Phantom or battery powering
- Battery switch with "Low Batt" indicator
- Very good suppression of structure-borne noise
- Minimizes wind and handling noise
- Supplied with foam windshield and shock mount
- Effective wind noise suppression with optional blimp
UPC: 615104223493 In the Box Sennheiser MKE 600 Shotgun Microphone Shock Mount for Camera Light-Shoe Foam Windshield Carry Pouch Limited 1-Year Warranty User Manual PDF 7.5mbczfcdeuxwydb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKE 600 Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKE 600 Specs | Polar Pattern | Super-cardioid/Lobar | | Frequency Response | 40 Hz to 20 kHz | | Sensitivity | -21 mV/Pa with 48 V powering
-19 mV/Pa with battery powering | | Maximum Sound Pressure Level (SPL) | 132 dB with 48 V powering
126 dB with battery powering | | EIN | 15 dB(A) with 48 V powering
16 dB(A) with battery powering | | Low Frequency Roll-Off | Yes | | Power Requirements | 48 V +/-4 V (P48, IEC 61938) via XLR-3 or AA size battery/rechargeable battery (1.5/1.2 V) | | Current Consumption | 4.4 mA with P48 powering | | Battery Operation Times | Approximately 150 hours
"Low Batt" Indicator: <1.05 V with approximately 8 hours of remaining operating time after initial display | | Output Connectors | 1 x XLR | | Operating Temperature | -14 to 140°F / -10 to 60°C | | Dimensions | Diameter: 0.8" / 20 mm
Length: 10.1" / 256 mm | | Weight | 4.5 oz / 128 g (without battery) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 13.0 x 5.4 x 3.4" |
