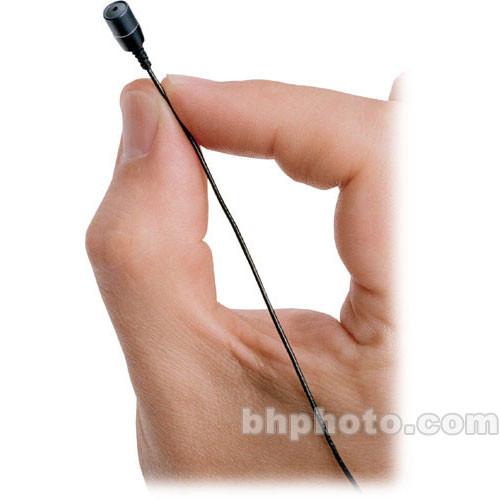

User Manual for Sennheiser MKE2-60 K6P Omni Lavalier Sub-Miniature Mic with Phantom-Only Power Module Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser MKE2-60 K6P Omni Lavalier Sub-Miniature
- Product category: Lavalier Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Lavalier Microphones
|
User manual for the Sennheiser MKE2-60 K6P Omni Lavalier Sub-Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More The black MKE2-60/K6P Omni Lavalier Sub-Miniature Microphone with Phantom-Only Powering Module Kit from Sennheiser is a high-quality, sub-miniature clip-on lavalier microphone. It can be used, when paired with the K6P power module, for capturing audio in a variety of applications where other clip-on microphones prove too obtrusive because of their larger size. The MKE2-60 fulfills the most stringent sound quality demands, is extremely robust, and is suitable for both speech and instrument miking.The K6P powering module is the heart of this Sennheiser professional modular microphone system, and is powered by 48V phantom power only, which is compatible with different condenser microphone modules for a wider variety of polar patterns. The MKE2-60/K6P omni lavalier, sub-miniature microphone with phantom-only powering module kit is a flexible tool for all recording and sound reinforcement work. - Sennheiser MKE2-60GOLD Omnidirectional Lavalier Microphone (Black) The black MKE2-60GOLD from Sennheiser is a high-quality, sub-miniature clip-on lavalier microphone. It can be used, when paired with a K6 power module (sold separately), to capture audio in a variety of applications where other clip-on microphones prove too obtrusive because of their larger size. It fulfills the most stringent sound quality demands, is extremely robust, and is suitable for both speech and instrument miking.
- Good suppression of handling noise
UPC: 615104047334 - Sennheiser K6P Powering Module (Phantom Only) The Sennheiser K6P is the mic body and power supply for Sennheiser's professional condenser modular microphone system. You can assemble a complete microphone, with your choice of pick-up pattern, by combining the K6P with one of five different K6-series microphone heads (not included).
The K6P features a black, anodized, scratch-resistant finish. It's designed for use in situations where phantom power is present. Users who need a battery-powered mic can purchase Sennheiser's K6, instead. The K6P features a switchable bass roll-off filter to help reduce low end rumble, handling noise, wind noise, and pops. It also features an On/Off switch, and a transformerless balanced output on a 3-pin XLR connector. - Transformerless balanced output on 3-pin XLR connector
- Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
UPC: 615104185722 In the Box - MKE2-60GOLD Omnidirectional Lavalier Microphone (Black) byfvbadqavysdtsyvqaysb
- MZC 2-1 Cap (Short)
- MZC 2-2 Cap (Long)
- Limited 1-Year Warranty
- K6P Powering Module (Phantom Only) byfvbadqavysdtsyvqaysb
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKE2-60 K6P Omni Lavalier Sub-Miniature Mic with Phantom-Only Power Module Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser MKE2-60GOLD Omnidirectional Lavalier Microphone (Black)
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz - 20 kHz (+/-3 dB) | | Dynamic Range (Typical) | 103 dB | | Signal-to-Noise Ratio | 67 dB | | Maximum Input Sound Level | 130 dB, (@ 1 kHz) | | Power Requirements | 12 - 48 V phantom power, derived by the K6 or K6P power supplies only | | Output Impedance | 50 Ohms | | Output Connectors | Proprietary connector (screws onto K6 or K6P power supplies only). Both K6 and K6P terminate to XLR-3M connectors | | Pad | None | | Low Frequency Roll-Off | Switchable bass roll-off filter found on K6 power module | | Applications | Television, broadcast, and theatrical usage | | Dimensions (L x Diam) | 0.28 x 0.16" (7 x 4 mm) | | Weight | 0.04 oz. (1 g) | | | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 1.0" | - Sennheiser K6P Powering Module (Phantom Only)
| Transducer Type | Pre-polarized condenser microphone | | Frequency Response | 30 to 20,000 Hz (+/- 1 dB) | | Impedance | Nominal: 200 Ohms
Min. Terminating: 1 kOhm | | Gain | 0 dB | | Power | Phantom Power: 12 - 48 VDC
Current Consumption: 2.2 mA
Output Voltage: 2 V (1 kHz) | | Diameter | 0.9 x 2" / 22 x 52 mm | | Weight | Approx 1.1 oz / 30 g | | | | Box Dimensions (LxWxH) | 7.3 x 1.7 x 1.7" |
