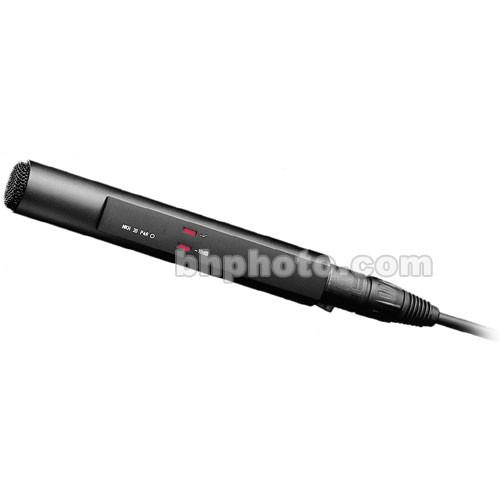

User Manual for Sennheiser MKH 20 P48 Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 20 P48 Microphone
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser MKH 20 P48 Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The MKH 20 P48 Microphone from Sennheiser is a versatile, professional omnidirectional condenser microphone designed for spot instrument, group or ambiance capturing. The 12 Hz to 20 kHz frequency response eliminates noise and rumble associated with natural acoustics. The sensitivity and SPL response makes it a favorite as a main microphone for capturing orchestras and solo instruments. An attenuator switch allows an additional 10 dB of headroom when using in close proximity to signals high in transients. A pressure build-up ring is included and is used to accentuate high-frequency response. The microphone is powered via +48V phantom power source. - An omnidirectional condenser type mic for spot instruments, group capture, and general ambience
- Excellent for orchestral and solo instrument capture
- Omnidirectional polar pattern yields generous sonic pickup at off-axis sections of capsule
- Attenuator switch allows additional 10dB of headroom when used in close proximity to high transient signals
- 12 Hz to 20 kHz Frequency response, with included pressure build-up ring for capturing accentuated high frequencies
UPC: 615104028579 In the Box Sennheiser MKH 20 P48 Microphone MZ-Q40 Quick Release Stand Adapter aqbarqycwaezvzes MZW-41 Foam Windscreen Pressure Build-Up Ring Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 20 P48 Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 20 Specs | | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 10 dB A-Weighted
20 dB CCIR | | Maximum SPL | 134 dB SPL
142 dB SPL | | Pad | -10 dB | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 5.91" / 150 mm | | Diameter | 0.98" / 25 mm | | Weight | 3.53 oz / 100 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 14.0 x 5.4 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
