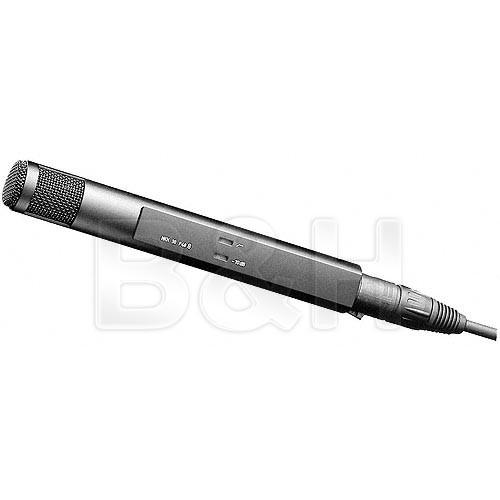

User Manual for Sennheiser MKH 30 Bi-Directional Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 30 Bi-Directional Microphone
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser MKH 30 Bi-Directional Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The symmetrical transducer design of the MKH-30 Microphone from Sennheiser produces an unusually wide and smooth frequency response. Particularly suited to soloists and small instrumental groups, the MKH-30 can also serve as an "S" or side microphone in MS stereo applications. As a general support microphone, it is particularly useful in the effective suppression of sounds from adjacent sound sources. The MKH-30's transformerless output has inherently low noise and distortion, and it also features switchable roll-off filtering and pre-attenuation. The MKH-30 uses +48V Phantom Power, and is finished in a black anodized metal casing. - Bidirectional condenser microphone
- Particularly suited to soloists, small instrumental groups, or as an "S" side mic in MS stereo applications
- High rejection of lateral sounds
- Exceptionally low inherent self-noise
- Symmetrical transducer technology ensures extremely low distortion
- Transformerless and fully floating balanced output
- Switchable roll-off filter to compensate for proximity effects at a distance of approximately 0.5 m
- Switchable pre-attenuation
- Black, anodized light metal casing
UPC: 615104028722 In the Box Sennheiser MKH 30 Bi-Directional Microphone Microphone Shock Mount wwtbqbrzqaxuvwydsqaatvadsdxvcqcvy MZW 40 Windscreen MZQ 31 Double Jointed Stand Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 30 Bi-Directional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 30 Specs | | | Transducer | Condenser | | Polar Pattern | Figure-8 | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 13 dB A-Weighted
22 dB CCIR | | Maximum SPL | 134 dB SPL
142 dB SPL | | Pad | -10 dB | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Low-Cut Filter | 12 dB/Octave @ 30 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 5.91" / 150 mm | | Diameter | 0.98" / 25 mm | | Weight | 3.88 oz / 110 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
