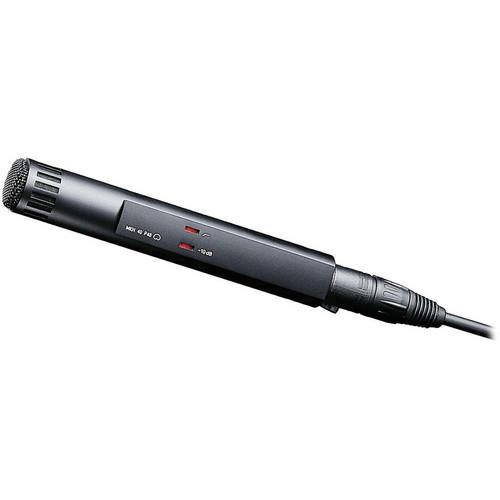

User Manual for Sennheiser MKH 40 P48 Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 40 P48 Microphone
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser MKH 40 P48 Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The MKH 40 P 48 Microphone from Sennheiser is a pressure gradient condenser microphone designed for remote recording, sound reinforcement, instrument capturing, group and choir capturing and speech. The MKH 40's capsule features symmetrical transducer technology that ensures extremely low distortion, and its wide-angle cardioid polar pattern provides balanced sound reproduction. Reverse attenuation ensures maximum rejection of off-axis sound, providing exceptional control of the captured ambiance. The MKH 40 P48 features a low frequency roll-off switch, to minimize rumble and noise. Switchable pre-attenuation provides an additional 10 dB of headroom, preventing distortion and overload caused by transient signals at close proximity. - A pressure gradient condenser mic for remote recording, sound reinforcement, instrument capture, or group and choir recording
- Wide-angle cardioid polar pattern to provide balanced reproduction
- Symmetrical transducer technology ensures extremely low distortion
- Low frequency roll-off switch to minimize rumble and noise
- Switchable pre-attenuation provides an additional 10 dB of headroom to prevent distortion from close-proximity transient signals
UPC: 615104026452 In the Box Sennheiser MKH 40 P48 Microphone MZS40 Elastic Suspension Mount ewaxrfavcfwydaabywtbaubarszsryyycqzu MZW-41 Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 40 P48 Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 40 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Wide-Angle Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 12 dB A-Weighted
21 dB CCIR | | Maximum SPL | 134 dB SPL
142 dB SPL | | Pad | -10 dB | | Impedance | 150 Ohms | | Load Impedance | 1000 Ohms | | Low-Cut Filter | 12 dB/Octave @ 30 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 5.91" / 150 mm | | Diameter | 0.98" / 25 mm | | Weight | 3.88 oz / 110 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 14.0 x 5.4 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
