Sennheiser MKH-416 Deluxe Shotgun Microphone and

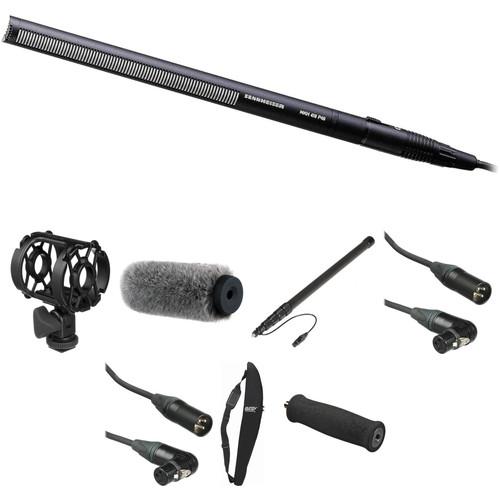

User Manual for Sennheiser MKH-416 Deluxe Shotgun Microphone and Cable Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
  • Pressure gradient receiver with short interference tube
  • Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
  • The RF-design yields low noise levels and high immunity to humidity and moisture
  • The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
  • Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
  • Very low inherent self-noise
  • High sensitivity
  • Transformerless and fully floating balanced output
  • Rugged, suitable for adverse climatic conditions
  • Matt black all-metal body
  • Increased directivity
  UPC: 615104015111
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2018 Professional Windshield has an inside depth of 18cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2018 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Rode, Sennheiser, Sanken, Sony and others.

  The WSS-2018 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • AKG C 568 EB, CK 68 ULS C460B Red
  • Azden SG(M)-1X
  • BeyerDynamic MC 716, 726, 736, 836, MCE 86 II, 87vs
  • ClockAudio C850E
  • DPA 4017
  • JVC DY-70U
  • Røde NTG-3
  • Sanken CS 3
  • Sennheiser ME 66 K6, ME 80 K3U, MKH 416, 418
  • Sony ECM 670, 678, 680S
  UPC: 847628552685
• K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable The K-Tek KEG-100CC Avalon Series Graphite Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy graphite design is tough enough to endure the rigors of road use while remaining lightweight and travel worthy. This pole features an internally coiled cable and an XLR connection at the base of the pole. A total of 5 sections telescope between 2.2 to 8.8', and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
  • Designed to fit in any standard equipment case for ENG, EFP, and DV location production work
  • The KEG-100CC features a bottom-mounted, 3-pin XLR connection at the base
  • Jam-resistant collar coupling
  • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
  UPC: 791090331876
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738

• MKH-416 Short Shotgun Interference Tube Microphone csbwsfzufzrxyr
• MZW-415 - Foam Windscreen
• MZQ100 Quick Release for K3U, MD409 and MKH-416
• Case
• Limited 1-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles csbwsfzufzrxyr

• Auray - WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

• K-Tek - KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie csbwsfzufzrxyr

• Auray - Universal Microphone Pistol Grip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKH-416 Short Shotgun Interference Tube Microphone

  Transducer	Pressure Gradient/Interference Receiver Condenser
  Polar Pattern	Low, Mid: Hypercardioid Above 2 kHz: Lobar
  Frequency Response	40 to 20,000 Hz
  Dynamic Range (Typical)	117 dB
  Signal-to-Noise Ratio	81 dB
  Maximum Input Sound Level	130 dB (@ 1 KHz) Sensitivity 25 mV/Pa +/- 1dB
  Power Requirements	Phantom Power 48 V (± 12 v)
  Output Impedance	Nominal Impedance: 25 Ohms Minimum Terminating Impedance: 800 Ohms
  Output Connectors	XLR-3M Type
  Pad	None
  Low Frequency Roll-Off	None
  Applications	Film, Radio and Television, Especially for Outside Broadcast Applications.
  Dimensions (L x Diam)	9.84 x 0.74" / 250 x 19 mm
  Weight	5.82 oz / 175 g

  Box Dimensions (LxWxH)	13.9 x 5.4 x 2.6"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	7.1" / 18 cm
  Maximum Noise Attenuation	40 dB in 25 mph / 40 km/h Wind

  Box Dimensions (LxWxH)	11.6 x 4.2 x 3.3"

• K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable

  Material	Graphite
  Sections	5
  Minimum Length	2.2 to 8.8' (65.8 to 267 cm)
  Maximum Length	2.2 to 8.8' (65.8 to 267 cm)
  Weight	1.26 lb (572 g)
  Load Capacity	Not specified by manufacturer

  Box Dimensions (LxWxH)	32.0 x 3.0 x 2.5"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"
