Sennheiser MKH 416-P48 Short Shotgun Interference

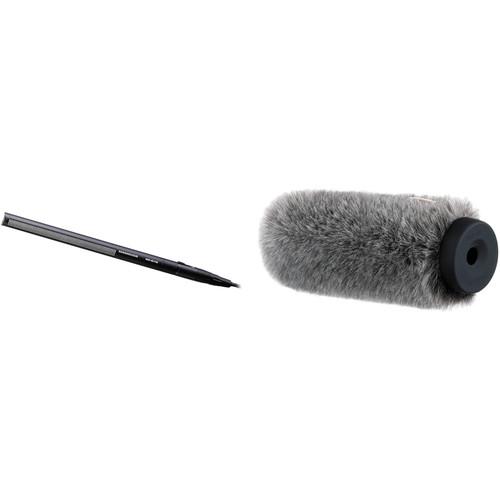

User Manual for Sennheiser MKH 416-P48 Short Shotgun Interference Tube Mic & Auray Fur Windshield Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
  • Pressure gradient receiver with short interference tube
  • Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
  • The RF-design yields low noise levels and high immunity to humidity and moisture
  • The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
  • Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
  • Very low inherent self-noise
  • High sensitivity
  • Transformerless and fully floating balanced output
  • Rugged, suitable for adverse climatic conditions
  • Matt black all-metal body
  • Increased directivity
  UPC: 615104015111
• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2018 Professional Windshield has an inside depth of 18cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2018 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Rode, Sennheiser, Sanken, Sony and others.

  The WSS-2018 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • AKG C 568 EB, CK 68 ULS C460B Red
  • Azden SG(M)-1X
  • BeyerDynamic MC 716, 726, 736, 836, MCE 86 II, 87vs
  • ClockAudio C850E
  • DPA 4017
  • JVC DY-70U
  • Røde NTG-3
  • Sanken CS 3
  • Sennheiser ME 66 K6, ME 80 K3U, MKH 416, 418
  • Sony ECM 670, 678, 680S
  UPC: 847628552685

• MKH-416 Short Shotgun Interference Tube Microphone tddewywzsuaretyeubxdrtywyvaqzqfc
• MZW-415 - Foam Windscreen
• MZQ100 Quick Release for K3U, MD409 and MKH-416
• Case
• Limited 1-Year Warranty

• Auray - WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKH-416 Short Shotgun Interference Tube Microphone

  Transducer	Pressure Gradient/Interference Receiver Condenser
  Polar Pattern	Low, Mid: Hypercardioid Above 2 kHz: Lobar
  Frequency Response	40 to 20,000 Hz
  Dynamic Range (Typical)	117 dB
  Signal-to-Noise Ratio	81 dB
  Maximum Input Sound Level	130 dB (@ 1 KHz) Sensitivity 25 mV/Pa +/- 1dB
  Power Requirements	Phantom Power 48 V (± 12 v)
  Output Impedance	Nominal Impedance: 25 Ohms Minimum Terminating Impedance: 800 Ohms
  Output Connectors	XLR-3M Type
  Pad	None
  Low Frequency Roll-Off	None
  Applications	Film, Radio and Television, Especially for Outside Broadcast Applications.
  Dimensions (L x Diam)	9.84 x 0.74" / 250 x 19 mm
  Weight	5.82 oz / 175 g

  Box Dimensions (LxWxH)	13.9 x 5.4 x 2.6"

• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	7.1" / 18 cm
  Maximum Noise Attenuation	40 dB in 25 mph / 40 km/h Wind

  Box Dimensions (LxWxH)	11.6 x 4.2 x 3.3"
