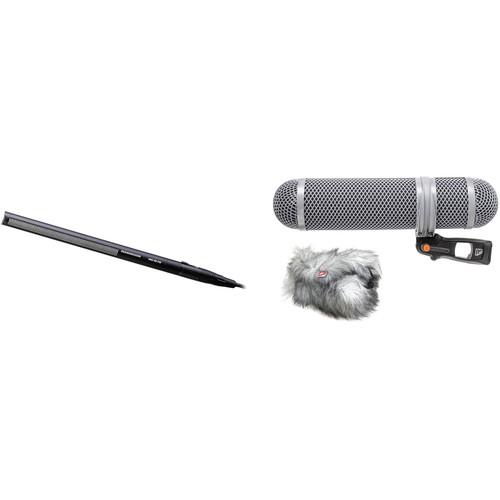

User Manual for Sennheiser MKH 416-P48 Short Shotgun Mic and Rycote Super-Shield Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 416-P48 Short Shotgun Mic
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH 416-P48 Short Shotgun Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Containing all the elements necessary for capturing audio in outdoor environments, the Sennheiser MKH 416-P48 Short Shotgun Microphone and Rycote Super-Shield Kit from B&H features the MKH 416 shotgun microphone and MZW 415 windshield, along with an MZQ 100 microphone clamp. Also included in the kit are a super-shield suspension chassis with front and rear pod (medium size) windshield, a windjammer, a pistol grip, one 18" XLR cable, and a fur maintenance brush.This B&H kit is a cost-effective solution for recording audio in the field, offering excellent wind protection with minimal high-frequency loss, and providing almost perfect transparency wherever the next broadcast, sports, or news event takes you. - Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
- Pressure gradient receiver with short interference tube
- Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
- The RF-design yields low noise levels and high immunity to humidity and moisture
- The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
- Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
- Very low inherent self-noise
- Transformerless and fully floating balanced output
- Rugged, suitable for adverse climatic conditions
- Matt black all-metal body
UPC: 615104015111 - Rycote Super-Shield Kit for Shotgun Mics (Medium) The medium Super-Shield Kit for Shotgun Mics from Rycote is a complete windshield and shock mounting system for shotgun microphones 20-25cm in length. The kit contains the Super-Shield Suspension which provides your microphone isolation from shocks and vibrations, the Super-Shield Windshield which provides wind-noise reduction with minimal high-frequency loss, and the Windjammer, a high-quality synthetic fur cover which provides protection against extreme wind noise.
The Super-Shield Suspension features patented Lyre technology, which provides your microphone isolation from shocks and vibrations without the use of rubbers or elastic. The chassis fits microphones 19mm (3/4") to 25mm (1") in diameter, using two snap-in, pinch-release Lyre suspensions that can be used in any of six positions to achieve the optimal balance and fit. The suspension comes with an 18" (450mm) high flexibility microphone cable.
Made up of two lightweight, durable baskets made from flexible grey plastic netting with a screening material attached, the Super-Shield Windshield connects to the Super-Shield Suspension. The windshield completely surrounds and creates a still volume of air around the microphone, which is designed to provide wind-noise reduction, with minimal high-frequency loss.
The Super-Shield Windjammer is a synthetic fur cover which provides another layer of protection to be used to combat extreme wind noise. Like the Super-Shield Windshield, it is designed to protect from wind without substantial high-frequency loss. - Fits these and similar sized mics:
-
- Audio-Technica AT 4073a (BP4073)
- DPA 4017
- Neumann KMR 81i
- Neumann KMR-81D
- RODE NTG-1
- RODE NTG-3
- RODE NTG4
- Sanken CS 2
- Schoeps CMIT 5U
- Sennheiser MKH 416
- Shure VP82
- Shure VP89S
- Sony ECM 670
- Sony ECM 678
In the Box - MKH-416 Short Shotgun Interference Tube Microphone cetuwbucrccvfesfazdfvebcfae
- MZW-415 - Foam Windscreen
- MZQ100 Quick Release for K3U, MD409 and MKH-416
- Case
- Limited 1-Year Warranty
- Rycote - Super-Shield Kit for Shotgun Mics (Medium)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 416-P48 Short Shotgun Mic and Rycote Super-Shield Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser MKH-416 Short Shotgun Interference Tube Microphone
| Transducer | Pressure Gradient/Interference Receiver Condenser | | Polar Pattern | Low, Mid: Hypercardioid Above 2 kHz: Lobar | | Frequency Response | 40 to 20,000 Hz | | Dynamic Range (Typical) | 117 dB | | Signal-to-Noise Ratio | 81 dB | | Maximum Input Sound Level | 130 dB (@ 1 KHz)
Sensitivity 25 mV/Pa +/- 1dB | | Power Requirements | Phantom Power 48 V (± 12 v) | | Output Impedance | Nominal Impedance: 25 Ohms
Minimum Terminating Impedance: 800 Ohms | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Film, Radio and Television, Especially for Outside Broadcast Applications. | | Dimensions (L x Diam) | 9.84 x 0.74" / 250 x 19 mm | | Weight | 5.82 oz / 175 g | | | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.6" | - Rycote Super-Shield Kit for Shotgun Mics (Medium)
| Compatible Mic Diameter | 0.748 to 0.98" / 19 to 25 mm | | Outer Diameter | 3.9" / 100 mm | | Length | 15.75" / 400 mm | | Weight | 23.35 oz / 662 g | | | | Box Dimensions (LxWxH) | 19.1 x 8.3 x 4.5" |
