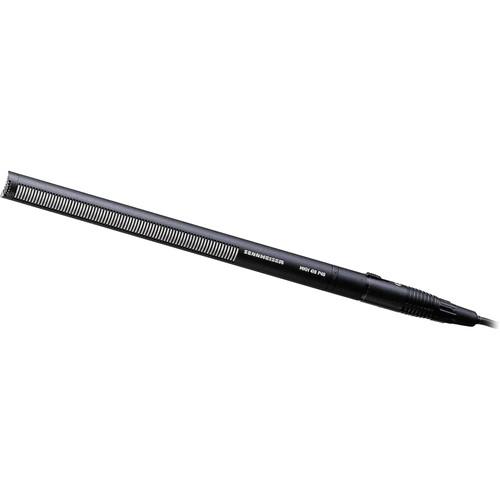

User Manual for Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH-416 Short Shotgun Interference Tube
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH-416 Short Shotgun Interference Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The New Sennheiser MKH 8060 and 8070 Shotguns: A Complete and Uncompromising Mic System Read More Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz. - Pressure gradient receiver with short interference tube
- Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
- The RF-design yields low noise levels and high immunity to humidity and moisture
- The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
- Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
- Very low inherent self-noise
- Transformerless and fully floating balanced output
- Rugged, suitable for adverse climatic conditions
- Matt black all-metal body
UPC: 615104015111 In the Box Sennheiser MKH-416 Short Shotgun Interference Tube Microphone MZW-415 - Foam Windscreen ewaxrfavcfwydaabywtbaubarszsryyycqzu MZQ100 Quick Release for K3U, MD409 and MKH-416 Case Limited 1-Year Warranty User Manual PDF 6.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH-416 Short Shotgun Interference Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH-416 Specs | Transducer | Pressure Gradient/Interference Receiver Condenser | | Polar Pattern | Low, Mid: Hypercardioid Above 2 kHz: Lobar | | Frequency Response | 40 to 20,000 Hz | | Dynamic Range (Typical) | 117 dB | | Signal-to-Noise Ratio | 81 dB | | Maximum Input Sound Level | 130 dB (@ 1 KHz)
Sensitivity 25 mV/Pa +/- 1dB | | Power Requirements | Phantom Power 48 V (± 12 v) | | Output Impedance | Nominal Impedance: 25 Ohms
Minimum Terminating Impedance: 800 Ohms | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Film, Radio and Television, Especially for Outside Broadcast Applications. | | Dimensions (L x Diam) | 9.84 x 0.74" / 250 x 19 mm | | Weight | 5.82 oz / 175 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.6" |
