Sennheiser MKH-416 Shotgun Microphone Deluxe Boompole

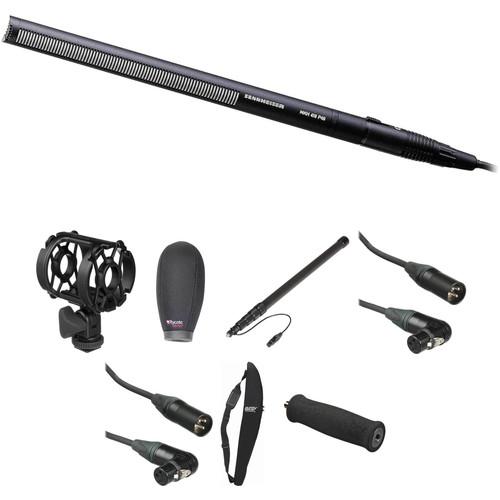

User Manual for Sennheiser MKH-416 Shotgun Microphone Deluxe Boompole Kit with Rycote Super Softie

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
  • Pressure gradient receiver with short interference tube
  • Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
  • The RF-design yields low noise levels and high immunity to humidity and moisture
  • The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
  • Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
  • Very low inherent self-noise
  • High sensitivity
  • Transformerless and fully floating balanced output
  • Rugged, suitable for adverse climatic conditions
  • Matt black all-metal body
  • Increased directivity
  UPC: 615104015111
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Rycote 18cm Super-Softie Wind Shield for Shotgun Mics (Standard Hole) The standard hole Rycote 18cm Super-Softie Wind Shield for Shotgun Mics features an aerodynamic shape and surface structure made from the company's 3D-Tex material, which allows for attenuation of wind noise with acoustic transparency. It is ideal for a variety of sound recording applications including video, ENG and more.

  The 18cm Super-Softie has no rigid internal structure, thus it causes virtually no polar pattern distortion. It's robust design has been engineered for use in challenging environments, and if it becomes rain-soaked, it can be squeezed out and shaken dry quickly. Also, if it becomes coated with dust it can be rinsed quickly without affecting its performance.
  Fits these and similar sized mics:
  • • AKG C 568 EB
    • AKG CK 68 ULS C460B Full
    • AKG CK 68 ULS C460B Red
    • BeyerDynamic MCE 86 N (C) S
    • BeyerDynamic MCE 87vs
    • RODE NTG-3
    • Sanken CS-3e
    • Sennheiser ME 66 K6
    • Sennheiser ME 80 K3U
    • Sennheiser MKH 416
    • Sennheiser MKH 418
    • Sony ECM 670
    • Sony ECM 678
    • Sony ECM 680S
  • K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable The K-Tek KEG-100CC Avalon Series Graphite Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy graphite design is tough enough to endure the rigors of road use while remaining lightweight and travel worthy. This pole features an internally coiled cable and an XLR connection at the base of the pole. A total of 5 sections telescope between 2.2 to 8.8', and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
    • Designed to fit in any standard equipment case for ENG, EFP, and DV location production work
    • The KEG-100CC features a bottom-mounted, 3-pin XLR connection at the base
    • Jam-resistant collar coupling
    • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
    UPC: 791090331876
  • Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

    Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
    • 95% dual-spiral shielding offers protection from EMI and RFI noise.
    • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
    • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
    • Cotton yarn reduces electrostatic and microphonic noise.
    • All solder points shrink-wrapped for protection.
    • Neutrik XX silver connectors offer high conductivity.
    • Caged type contact and improved ground contact.
    UPC: 847628558298
  • Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

    Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
    • 95% dual-spiral shielding offers protection from EMI and RFI noise.
    • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
    • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
    • Cotton yarn reduces electrostatic and microphonic noise.
    • All solder points shrink-wrapped for protection.
    • Neutrik XX silver connectors offer high conductivity.
    • Caged type contact and improved ground contact.
    UPC: 847628558229
  • Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
  • Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

    In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738
  In the Box
  • MKH-416 Short Shotgun Interference Tube Microphone feqquyxvdywaesyusdebrwsw
  • MZW-415 - Foam Windscreen
  • MZQ100 Quick Release for K3U, MD409 and MKH-416
  • Case
  • Limited 1-Year Warranty
  • Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Rycote - 18cm Super-Softie Wind Shield for Shotgun Mics (Standard Hole)
  • K-Tek - KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable
  • Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black
  • Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
  • Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie
  • Auray - Universal Microphone Pistol Grip
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKH-416 Short Shotgun Interference Tube Microphone

  Transducer	Pressure Gradient/Interference Receiver Condenser
  Polar Pattern	Low, Mid: Hypercardioid Above 2 kHz: Lobar
  Frequency Response	40 to 20,000 Hz
  Dynamic Range (Typical)	117 dB
  Signal-to-Noise Ratio	81 dB
  Maximum Input Sound Level	130 dB (@ 1 KHz) Sensitivity 25 mV/Pa +/- 1dB
  Power Requirements	Phantom Power 48 V (± 12 v)
  Output Impedance	Nominal Impedance: 25 Ohms Minimum Terminating Impedance: 800 Ohms
  Output Connectors	XLR-3M Type
  Pad	None
  Low Frequency Roll-Off	None
  Applications	Film, Radio and Television, Especially for Outside Broadcast Applications.
  Dimensions (L x Diam)	9.84 x 0.74" / 250 x 19 mm
  Weight	5.82 oz / 175 g

  Box Dimensions (LxWxH)	13.9 x 5.4 x 2.6"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Rycote 18cm Super-Softie Wind Shield for Shotgun Mics (Standard Hole)

  Compatible Mic Diameter	0.748 to 0.87" / 19 to 22 mm
  Inner Depth	7" / 17.8 cm
  Outer Diameter	2.8 to 3.9" / 70 to 100 mm
  Length	9.5" / 240 mm
  Weight	3.7 oz / 105 g

  Box Dimensions (LxWxH)	11.2 x 4.4 x 4.4"

• K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable

  Material	Graphite
  Sections	5
  Minimum Length	2.2 to 8.8' (65.8 to 267 cm)
  Maximum Length	2.2 to 8.8' (65.8 to 267 cm)
  Weight	1.26 lb (572 g)
  Load Capacity	Not specified by manufacturer

  Box Dimensions (LxWxH)	32.0 x 3.0 x 2.5"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"
