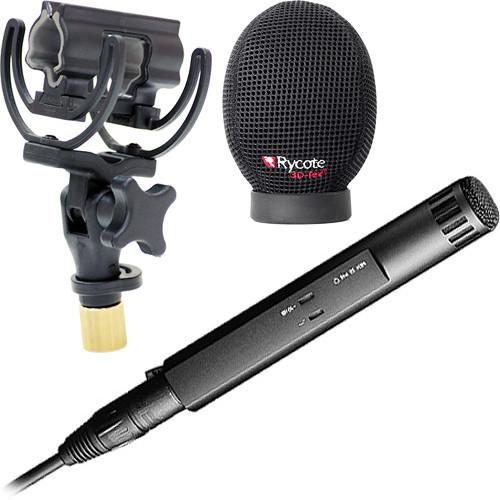

Sennheiser MKH 50 Supercardioid Microphone Kit

User Manual for Sennheiser MKH 50 Supercardioid Microphone Kit

• Product category: Small Diaphragm Condenser Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Small Diaphragm Condenser

Product description

• Sennheiser MKH 50 P48 Microphone The MKH 50 P48 Microphone from Sennheiser is a high quality, professional condenser microphone specifically designed for spot capturing in recording and sound reinforcement applications. The MKH 50 offers exceptional attenuation at the lateral sections of the capsule, for a focused pick up without off-axis noise. Its wide frequency response and high sensitivity result in pristine audio fidelity, no matter the source. It also has a low-frequency roll-off switch to minimize rumble/noise, and a pre-attenuation switch in case you'll mount the microphone near to high transients. The MKH 50 requires +48V phantom power, and is more than suitable for capturing vocals or instruments.
  • A pressure-gradient condenser mic specifically created for spot recording
  • Supercardioid polar pattern to provide focused capture and extreme off-axis rejection
  • Low-frequency roll-off switch to minimize rumble and noise
  • Switchable pre-attenuation provides an additional 10 dB of headroom to prevent distortion from close-proximity transient signals
  • Uses +48V phantom power
  UPC: 615104031098
• Rycote Super-Softie Windshield for Shotgun Mics (5cm, 24/25) The Rycote Super-Softie Windshield (5cm, 24/25) features 3D-Tex material and open-cell foam. It is suitable for shotgun microphones with slots no further than 5cm from the front of the mic, and a diameter of 24 to 25mm. The 3D-Tex material provides increased wind attenuation compared to conventional slip-on designs. It also achieves improved attenuation in extreme low frequencies and infrasonic frequencies, protecting captured audio where wind noise is at its greatest. The Super-Softie can be quickly squeezed and shaken dry when rain-soaked, or rinsed when dust-coated, without affecting its performance. This robust design will sustain its performance for years of use in challenging environments, such as news-gathering events.
  • • Novel shape and 3D-Tex give greatly improved wind noise reduction compared to conventional "soft" windshields
    • A true cavity design, with superb performance at extreme low frequencies (where wind noise is worst)
    • A rough-service windshield, robust enough for the most challenging news-gathering situations
    • High immunity to rain-soaking, maintaining excellent acoustic transparency in almost all situations
    • Compatible with the following microphones: Beyerdynamic MCE 72; Sennheiser MKH 20/30/40/50
• Rycote InVision INV-HG mkIII Microphone Suspension - Lyre Shockmount The Rycote InVision INV-HG mkIII Microphone Suspension addresses the demand for a heavy-duty shockmount to secure shotgun microphones. The INV-HG mkIII will minimalize handling noise, rumble, and vibration in all speech-capturing applications.

  The InVision Lyre cradle accommodates most microphones measuring 19 to 34mm in diameter, like the Sennheiser MKH416 or MKH60. The cradle stabilizes even heavy microphones and allows the use of windscreens without sagging. A heavy duty swivel with a star knob fastens your mic tightly in place. The Lyre cradle rests on a miniature bar with a 3/8" threaded base and includes a 5/8" adapter.

  The INV-HG mkIII base features an integrated cable clamp for securing excess cable and minimizing noise. The unique Lyre suspension and cable clamp are engineered with Hytrel for a virtually indestructible design that maximizes shock and noise absorbtion.
  Large Lyre Suspension for Boom Operation
  • The Patented Rycote Lyre suspension cradle measures 70mm high and 40mm wide to accommodate heavier microphones. This is ideal for static stand mounting as well as boom placement.
  19 to 34mm Mounting Cradle
  • The cradle included with this system accommodates microphone diameters measuring between 19 to 34mm. The interior is treated with a soft-grip surface for a perfect, non-slip fitting.
  Hytrel Construction
  • The unique Lyre suspension is engineered with Hytrel for a virtually indestructible design that maximizes shock and noise absorbtion.
  Integrated 3/8" Threaded Base with 5/8" Stand Adapter
  • A 3/8" threaded base and a 5/8" threaded stand adapter is featured at the base for microphone boom pole and stand mounting.

• MKH 50 P48 Microphone ytzadbufrcfxryufwsvztfxxdfy
• MZS40 Elastic Suspension Mount
• MZW-41 Foam Windscreen
• Limited 2-Year Warranty

• Rycote - Super-Softie Windshield for Shotgun Mics (5cm, 24/25)

• Rycote - InVision INV-HG mkIII Microphone Suspension - Lyre Shockmount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKH 50 P48 Microphone

  Operating Principle	Pressure Gradient
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	12 dB A-Weighted 21 dB CCIR
  Maximum SPL	134 dB SPL 142 dB SPL
  Pad	-10 dB
  Impedance	150 Ohms
  Load Impedance	1000 Ohms
  Low-Cut Filter	12 dB/Octave @ 30 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2 mA
  Operating Voltage	48 V ± 4 V
  Length	5.91" / 150 mm
  Diameter	0.98" / 25 mm
  Weight	3.88 oz / 110 g

  Box Dimensions (LxWxH)	13.858 x 5.433 x 2.677"

• Rycote Super-Softie Windshield for Shotgun Mics (5cm, 24/25)

  Compatible Mic Diameter	0.83" / 21 mm
  Material	Foam
  Length	2" / 50 mm

  Box Dimensions (LxWxH)	11.0 x 4.5 x 4.4"

• Rycote InVision INV-HG mkIII Microphone Suspension - Lyre Shockmount

  Threaded Mount	3/8" with 5/8" adapter
  Diameter	Mic Cradle: 0.74 to 1.3" (19 to 34 mm)
  Dimensions (W x H)	2.75 x 1.57" (70 x 40 mm)

  Box Dimensions (LxWxH)	5.2 x 3.2 x 3.1"
