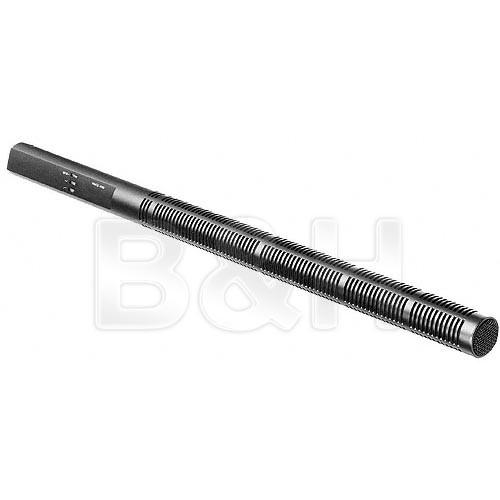

User Manual for Sennheiser MKH-70 - Super-Cardioid Shotgun Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH-70 - Super-Cardioid Shotgun Condenser
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH-70 - Super-Cardioid Shotgun Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The MKH 70 is a lightweight long shotgun microphone. Its excellent directivity is particularly suited to applications undertaken in difficult conditions, such as high background noise and distance microphone positioning. Its frequency-independent directivity prevents sound colouration from off-axis sound sources. - Exceptionally low inherent self-noise
- Transformerless and fully floating balanced output
- Infra-sonic cut-off filter
- Symmetrical transducer technology ensures extremely low distortion
- Switchable pre-attenuation, switchable roll-off filter and switchable treble emphasis
- Black, anodised light metal casing
UPC: 615104031494 In the Box Sennheiser MKH-70 - (P48) Super-Cardioid Shotgun Condenser Microphone Limited 1-Year Warranty User Manual PDF 880.7kbyfexwbwffwdcdxybxu Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH-70 - Super-Cardioid Shotgun Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 70 Specs | Transducer | Interference Tube Condenser | | Polar Pattern | Supercardioid/Lobar | | Frequency Response | 50 Hz - 20 kHz, (-3 dB) | | Dynamic Range (Typical) | 119 dB | | Signal-to-Noise Ratio | 88 dB | | Maximum Input Sound Level | 124 dB, (@ 1 kHz) | | Power Requirements | Phantom 48v, (+/- 4v) | | Output Impedance | 150 Ohms | | Output Connectors | XLR-3M Type | | Pad | Yes, -10 dB Pre-Attenuation Switch | | Low Frequency Roll-Off | Yes, -5 dB/Octave @ 100 Hz
High Frequency Emphasis: +5 dB/Octave @ 10 kHz | | Applications | Film, Video and Broadcast Production. | | Dimensions | 16.1 x 1" (410 x 25mm) LxDiameter | | Weight | 6.35 oz. (190 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 18.6 x 4.4 x 2.3" |
