User Manual for Sennheiser MKH 800 TWIN - Variable Polar Pattern Universal Studio Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 800 TWIN - Variable
- Product category: Stereo & Specialty Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Stereo & Specialty Microphones
|
User manual for the Sennheiser MKH 800 TWIN - Variable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

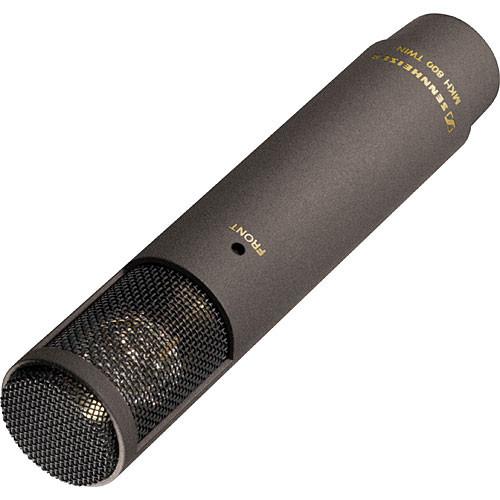

Product description The Sennheiser MKH 800 TWIN Universal Studio Microphone features two symmetrical push-pull transducers with high linearity and cardioid polar patterns mounted for "side fire" signal capturing.This revolutionary design redefines microphone flexibility as the signals remain isolated and are separated on output using the included splitter cable. With the signals remaining on separate channels; unlimited variations of cardioid, omnidirectional and figure eight polar patterns may be achieved.The microphone's tonal characteristics and signal response makes it well suited for vocals, instruments and ambient signals in any crucial recording application. The MKH 800 TWIN features a slim, low-profile design that makes it unobtrusive and easily mountable. - Remote Pattern Variations
- The remote adjustability and the variable pick-up patterns make the MKH 800 TWIN a universal main microphone, soloist microphone or supporting microphone. Saving of the microphone signals in two channels also allows an unlimited range of mixes to be realised at a later date.
- Flexible Settings
- The pick-up patterns can be set and optimised under monitoring conditions. In other words, it is not necessary to fix the pick-up patterns definitively before recording. A wide range of mixes for stereo and surround are possible (including in parallel).
- Pristine Signal Reproduction
- The high sensitivity ensures interference-free signal paths as a result of high signal levels. The inherent noise of downstream microphone amplifiers is thus of minor importance. Very low inherent noise prevents the masking of filigree sound structures. The depth of the acoustic can be heard more clearly too.
UPC: 615104131378 In the Box Sennheiser MKH 800 TWIN - Variable Polar Pattern Universal Studio Microphone (Black) MKH 800 TWIN (Black) MZQ 80 Microphone Clamp MZS80 Shock Mount AC 20 Adaptor Cable (1 x XLR-5 socket to 2 x XLR-3 connector) Aluminum Transport Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 800 TWIN - Variable Polar Pattern Universal Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 800 TWIN Specs | Transducer | Dual Condenser Capsules | | Polar Pattern | Variable | | Frequency Response | 30Hz - 50kHz | | Dynamic Range (Typical) | 122 dB(A), 114 dB (CCIR) | | Signal-to-Noise Ratio | 12dB (A) | | Maximum Input Sound Level | 134dB SPL | | Power Requirements | Phantom Power 48V +/- 4V | | Output Impedance | 100 Ohms | | Output Connectors | Custom 5-pin to dual 3-pin XLR output cable (included) | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 5.35 x 1.06" (136 x 27mm) | | Weight | 172g | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 14.5 x 6.6 x 3.8" |
