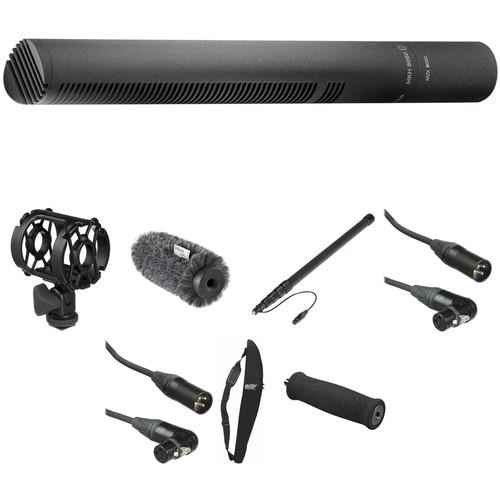

Sennheiser MKH 8060 Deluxe Shotgun Microphone

User Manual for Sennheiser MKH 8060 Deluxe Shotgun Microphone Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser MKH 8060 - Short Shotgun Microphone
  • Sennheiser MKH 8060/8070 Demo
  The MKH 8060 from Sennheiser is a lightweight and rugged short shotgun microphone that offers true and natural sound. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.

  The enhanced short interference tube yields a pleasing supercardioid/lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. Due to its compact design, it is ideal for boom or camera mounting.

  The microphone ships with an analog output module with an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module.
  • Lightweight and rugged short shotgun microphone
  • Immune to failure caused by dampness and humidity
  • Symmetrical RF transducer
  • High sensitivity
  • Low distortion
  • Excellent transient response
  • Suppresses off-axis sound without coloration
  • Ship with analog output module
  • Will interface directly with digital systems when used with the optional MZD 8000 digital module
  UPC: 615104183711
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Sennheiser MKH 8060/8070 Demo
  The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Rycote Standard Hole Softie Windscreen with 19-22mm (0.74-0.87") Hole Size
  • Sennheiser MKH 8060/8070 Demo
  Rycote Softies provide optimum wind diffusion and noise rejection while remaining cost effective. This softie features a standard size hole and measures 12cm (4.72") in length. The softie will fit microphones with diameters from 19-22mm (0.74-0.87"). This Softie is also a perfect fit for the Schoeps CMIT 5U.
• K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable
  • Sennheiser MKH 8060/8070 Demo
  The K-Tek KEG-100CC Avalon Series Graphite Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy graphite design is tough enough to endure the rigors of road use while remaining lightweight and travel worthy. This pole features an internally coiled cable and an XLR connection at the base of the pole. A total of 5 sections telescope between 2.2 to 8.8', and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
  • Designed to fit in any standard equipment case for ENG, EFP, and DV location production work
  • The KEG-100CC features a bottom-mounted, 3-pin XLR connection at the base
  • Jam-resistant collar coupling
  • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
  UPC: 791090331876
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black
  • Sennheiser MKH 8060/8070 Demo
  The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
  • Sennheiser MKH 8060/8070 Demo
  The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie
  • Sennheiser MKH 8060/8070 Demo
  The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray Universal Microphone Pistol Grip
  • Sennheiser MKH 8060/8070 Demo
  The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738

• MKH 8060 - Short Shotgun Microphone wdavrdtbustrbxfbuavdbyxvebfesswt
• MKH 8060 Microphone Body
• MZX 8000 Analog Output Module (XLR)
• MZQ 8060 Microphone Clip
• MZW 8060 Foam Windshield
• Threaded Transport Tube
• Frequency Response Sheet
• Limited 1-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles wdavrdtbustrbxfbuavdbyxvebfesswt

• Rycote - Standard Hole Softie Windscreen with 19-22mm (0.74-0.87") Hole Size

• K-Tek - KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black wdavrdtbustrbxfbuavdbyxvebfesswt

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Auray - Universal Microphone Pistol Grip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKH 8060 - Short Shotgun Microphone

  Transducer	Symmetrical RF
  Polar Pattern	Supercardioid/Lobar
  Frequency Response	50Hz to 25kHz
  Sensitivity	-24 dBV/Pa (63mV/Pa)
  Noise	EIN: 11dB (A) (DIN-IEC 651), 23dB (CCIR 268-3)
  Maximum Sound Pressure Level (SPL)	129dB
  Impedance	Nominal: 25Ω Minimum Terminating: 2kΩ
  Output Connectors	1 x XLR (as supplied)
  Pad	No
  Low Frequency Roll-Off	No
  Power Requirements	48V, +/-4V phantom (P48, IEC 61938) 3.3mA current consumption
  Operating Temperature	-14°F to 140°F (-10°C to 60°C)
  Dimensions	Diameter: 0.75" (19mm) Length (Microphone): 5.7" (145mm) Length (with MZX 8000 Module): 7.0" (178mm)
  Weight	Microphone: 2.8 oz (79g) With MZX 8000 Module: 3.9 oz (111g)

  Box Dimensions (LxWxH)	9.7 x 6.9 x 3.6"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Rycote Standard Hole Softie Windscreen with 19-22mm (0.74-0.87") Hole Size

  Compatible Mic Diameter	0.748 to 0.87" / 19 to 22 mm
  Inner Depth	4" / 10.16 cm

  Box Dimensions (LxWxH)	10.63 x 4.252 x 3.386"

• K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable

  Material	Graphite
  Sections	5
  Minimum Length	2.2 to 8.8' (65.8 to 267 cm)
  Maximum Length	2.2 to 8.8' (65.8 to 267 cm)
  Weight	1.26 lb (572 g)
  Load Capacity	Not specified by manufacturer

  Box Dimensions (LxWxH)	32.0 x 3.0 x 2.5"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"
