Product description The New Sennheiser MKH 8060 and 8070 Shotguns: A Complete and Uncompromising Mic System Read More - Sennheiser MKH 8060/8070 Demo

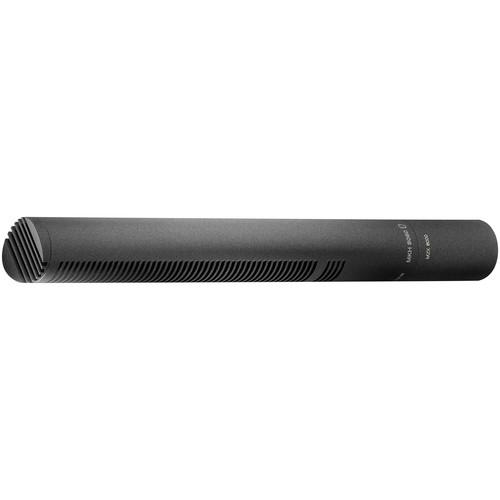

The MKH 8060 from Sennheiser is a lightweight and rugged short shotgun microphone that offers true and natural sound. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.
The enhanced short interference tube yields a pleasing supercardioid/lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. Due to its compact design, it is ideal for boom or camera mounting.
The microphone ships with an analog output module with an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module. - Lightweight and rugged short shotgun microphone
- Immune to failure caused by dampness and humidity
- Symmetrical RF transducer
- Excellent transient response
- Suppresses off-axis sound without coloration
- Ship with analog output module
- Will interface directly with digital systems when used with the optional MZD 8000 digital module
UPC: 615104183711 In the Box Sennheiser MKH 8060 - Short Shotgun Microphone MKH 8060 Microphone Body MZX 8000 Analog Output Module (XLR) MZQ 8060 Microphone Clip MZW 8060 Foam Windshield Threaded Transport Tube Frequency Response Sheet Limited 1-Year Warranty User Manual PDF 1.2mbdttaxycdtavtbsxzfaybtdbysfsbeuvb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 8060 - Short Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 8060 Specs | Transducer | Symmetrical RF | | Polar Pattern | Supercardioid/Lobar | | Frequency Response | 50Hz to 25kHz | | Sensitivity | -24 dBV/Pa (63mV/Pa) | | Noise | EIN: 11dB (A) (DIN-IEC 651), 23dB (CCIR 268-3) | | Maximum Sound Pressure Level (SPL) | 129dB | | Impedance | Nominal: 25Ω
Minimum Terminating: 2kΩ | | Output Connectors | 1 x XLR (as supplied) | | Pad | No | | Low Frequency Roll-Off | No | | Power Requirements | 48V, +/-4V phantom (P48, IEC 61938)
3.3mA current consumption | | Operating Temperature | -14°F to 140°F (-10°C to 60°C) | | Dimensions | Diameter: 0.75" (19mm)
Length (Microphone): 5.7" (145mm)
Length (with MZX 8000 Module): 7.0" (178mm) | | Weight | Microphone: 2.8 oz (79g)
With MZX 8000 Module: 3.9 oz (111g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 3.6" |
