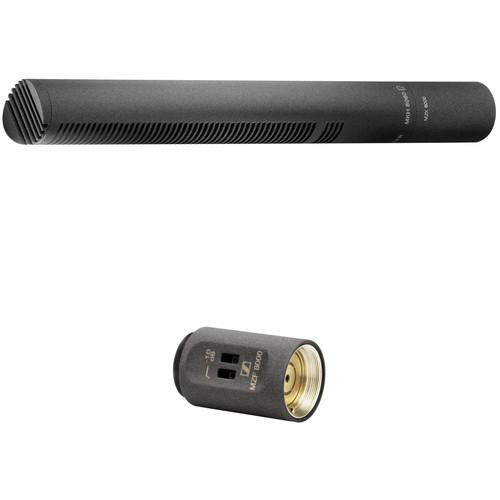

User Manual for Sennheiser MKH 8060 Shotgun Microphone and Filter Module Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 8060 Shotgun Microphone and
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH 8060 Shotgun Microphone and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The New Sennheiser MKH 8060 and 8070 Shotguns: A Complete and Uncompromising Mic System Read More The MKH 8060 Shotgun Microphone and Filter Module Kit from features the lightweight and rugged MKH 8060 shotgun microphone from Sennheiser which, due to its short interference tube, yields a pleasing supercardioid/lobar pickup pattern.
The microphone is complemented by the MZF 8000 filter designed especially for the broadcast and film industries. The filter effectively blocks interference caused by infrasound, such as low-frequency noises caused by wind and handling. - Sennheiser MKH 8060 - Short Shotgun Microphone
- Sennheiser MKH 8060/8070 Demo
The MKH 8060 from Sennheiser is a lightweight and rugged short shotgun microphone that offers true and natural sound. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.
The enhanced short interference tube yields a pleasing supercardioid/lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. Due to its compact design, it is ideal for boom or camera mounting.
The microphone ships with an analog output module with an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module. - Lightweight and rugged short shotgun microphone
- Immune to failure caused by dampness and humidity
- Symmetrical RF transducer
- Excellent transient response
- Suppresses off-axis sound without coloration
- Ship with analog output module
- Will interface directly with digital systems when used with the optional MZD 8000 digital module
UPC: 615104183711 - Sennheiser MZF 8000 Filter Module for MKH 8000 Series
- Sennheiser MKH 8060/8070 Demo
The MZF 8000 from Sennheiser is a filter module designed for use with the MKH 8000 series of RF condenser microphones. The filter blocks interference caused by wind and handling noise, while still preserving acoustic detail.
The filter has a switchable roll-off filter, a fixed low-cut filter, and a -10dB pad, allowing you to adjust the response of your mic. The filter has a balanced output for wide compatibility. - Works with MKH 8000 series RF condenser microphones
- Blocks interference caused by wind and handling noise, while still preserving acoustic detail
- A switchable roll-off filter, a fixed low-cut filter, and a -10dB pad allow you to adjust the response of your mic
- Balanced output for wide compatibility
UPC: 615104136083 In the Box - MKH 8060 - Short Shotgun Microphone zyfzyrcrrvxrbyzfxxsrye
- MKH 8060 Microphone Body
- MZX 8000 Analog Output Module (XLR)
- MZQ 8060 Microphone Clip
- MZW 8060 Foam Windshield
- Threaded Transport Tube
- Frequency Response Sheet
- Limited 1-Year Warranty
- MZF 8000 Filter Module for MKH 8000 Series
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 8060 Shotgun Microphone and Filter Module Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser MKH 8060 - Short Shotgun Microphone
| Transducer | Symmetrical RF | | Polar Pattern | Supercardioid/Lobar | | Frequency Response | 50Hz to 25kHz | | Sensitivity | -24 dBV/Pa (63mV/Pa) | | Noise | EIN: 11dB (A) (DIN-IEC 651), 23dB (CCIR 268-3) | | Maximum Sound Pressure Level (SPL) | 129dB | | Impedance | Nominal: 25Ω
Minimum Terminating: 2kΩ | | Output Connectors | 1 x XLR (as supplied) | | Pad | No | | Low Frequency Roll-Off | No | | Power Requirements | 48V, +/-4V phantom (P48, IEC 61938)
3.3mA current consumption | | Operating Temperature | -14°F to 140°F (-10°C to 60°C) | | Dimensions | Diameter: 0.75" (19mm)
Length (Microphone): 5.7" (145mm)
Length (with MZX 8000 Module): 7.0" (178mm) | | Weight | Microphone: 2.8 oz (79g)
With MZX 8000 Module: 3.9 oz (111g) | | | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 3.6" | - Sennheiser MZF 8000 Filter Module for MKH 8000 Series
| Low Frequency Cut | -3dB @ 160Hz (Switchable)
-3dB @ 16Hz (Fixed) | | Pad | -10dB (Switchable) | | Impedance | 50 Ohms | | EIN | 1dBA @ 0dB
4dBA @ -10dB | | Input Voltage | 14dBV @ 0dB
9dBV @ -10dB | | Output Voltage | 14dBV @ 0dB
-1dBV @ -10dB | | Power | 44-52V Phantom | | Operating Temperature | -10°C to 60°C | | Dimensions (LxDiameter) | 1.1 x 0.7" (29 x 19mm) | | Weight | 0.9 oz (26g) | | | | Box Dimensions (LxWxH) | 6.0 x 4.4 x 1.6" |
