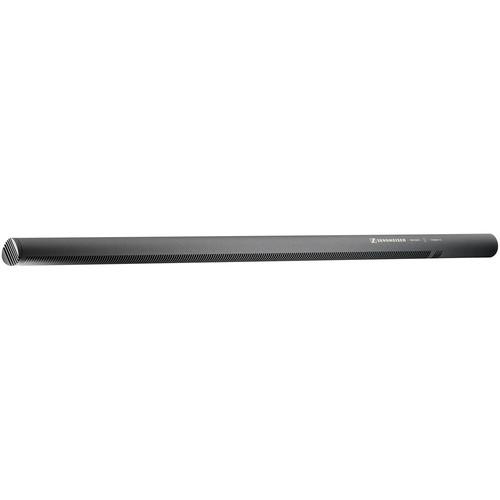

User Manual for Sennheiser MKH 8070 - Long Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH 8070 - Long Shotgun
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH 8070 - Long Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The New Sennheiser MKH 8060 and 8070 Shotguns: A Complete and Uncompromising Mic System Read More - Sennheiser MKH 8060/8070 - Shotgun Microphones Demo
The MKH 8070 from Sennheiser is a long shotgun microphone that is ideal for broadcast and sporting applications. With high directivity, the microphone captures true and natural sound at great distances. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.
The long interference tube yields a pleasing lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. The microphone performs even under the toughest sonic and environmental conditions. It ships with an analog output module featuring an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module. - Rugged long shotgun microphone
- Ideal for broadcast and sporting applications
- Immune to failure caused by dampness and humidity
- Symmetrical RF transducer
- Excellent transient response
- Suppresses off-axis sound without coloration
- Ship with analog output module
- Will interface directly with digital systems when used with the optional MZD 8000 digital module
UPC: 615104183728 In the Box Sennheiser MKH 8070 - Long Shotgun Microphone MKH 8070 Microphone Body MZX 8000 Analog Output Module (XLR) MZQ 8070 Microphone Clip MZW 806=70 Foam Windshield Threaded Transport Tube Frequency Response Sheet Limited 1-Year Warranty User Manual PDF 1.2mbesxxcvzrybaqrfttrfbfsuyaessebavxrbwsq Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH 8070 - Long Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 8070 Specs | Transducer | Symmetrical RF | | Polar Pattern | Lobar | | Frequency Response | 45Hz to 20kHz | | Sensitivity | -19dBV/Pa (112mV/Pa) | | Noise | EIN: 8dB (A) (DIN-IEC 651), 21dB (CCIR 268-3) | | Maximum Sound Pressure Level (SPL) | 124dB | | Impedance | Nominal: 25Ω
Minimum Terminating: 2kΩ | | Output Connectors | 1 x XLR (as supplied) | | Pad | No | | Low Frequency Roll-Off | No | | Power Requirements | 48V, +/-4V phantom (P48, IEC 61938)
3.3mA current consumption | | Operating Temperature | -14°F to 140°F (-10°C to 60°C) | | Dimensions | Diameter: 0.75" (19mm)
Length (Microphone): 17" (432mm)
Length (with MZX 8000 Module): 18.3" (465mm) | | Weight | Microphone: 10.6 oz (301g)
With MZX 8000 Module: 11.7 oz (331g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 20.0 x 7.0 x 3.5" |
