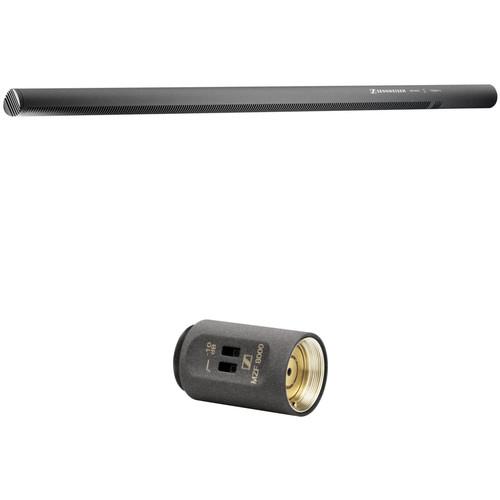

User Manual for Sennheiser MKH 8070 Shotgun Microphone and Filter Module Kit

• Product category: Shotgun Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Shotgun Microphones

Product description

• Sennheiser MKH 8070 - Long Shotgun Microphone
  • Sennheiser MKH 8060/8070 - Shotgun Microphones Demo
  The MKH 8070 from Sennheiser is a long shotgun microphone that is ideal for broadcast and sporting applications. With high directivity, the microphone captures true and natural sound at great distances. Reliable under the toughest climatic conditions, the microphone's symmetrical RF transducer design produces high sensitivity, low distortion and excellent transient response.

  The long interference tube yields a pleasing lobar pickup pattern, suppressing off-axis sound without coloration to create extremely natural and detailed results. The microphone performs even under the toughest sonic and environmental conditions. It ships with an analog output module featuring an XLR connector, but with the appropriate accessory, the body can to interface directly into digital systems via the optional MZD 8000 digital module.
  • Rugged long shotgun microphone
  • Ideal for broadcast and sporting applications
  • Immune to failure caused by dampness and humidity
  • Symmetrical RF transducer
  • High sensitivity
  • Low distortion
  • Excellent transient response
  • Suppresses off-axis sound without coloration
  • Ship with analog output module
  • Will interface directly with digital systems when used with the optional MZD 8000 digital module
  UPC: 615104183728
• Sennheiser MZF 8000 Filter Module for MKH 8000 Series
  • Sennheiser MKH 8060/8070 - Shotgun Microphones Demo
  The MZF 8000 from Sennheiser is a filter module designed for use with the MKH 8000 series of RF condenser microphones. The filter blocks interference caused by wind and handling noise, while still preserving acoustic detail.

  The filter has a switchable roll-off filter, a fixed low-cut filter, and a -10dB pad, allowing you to adjust the response of your mic. The filter has a balanced output for wide compatibility.
  • Works with MKH 8000 series RF condenser microphones
  • Blocks interference caused by wind and handling noise, while still preserving acoustic detail
  • A switchable roll-off filter, a fixed low-cut filter, and a -10dB pad allow you to adjust the response of your mic
  • Balanced output for wide compatibility
  UPC: 615104136083

• MKH 8070 - Long Shotgun Microphone zyfzyrcrrvxrbyzfxxsrye
• MKH 8070 Microphone Body
• MZX 8000 Analog Output Module (XLR)
• MZQ 8070 Microphone Clip
• MZW 806=70 Foam Windshield
• Threaded Transport Tube
• Frequency Response Sheet
• Limited 1-Year Warranty

• MZF 8000 Filter Module for MKH 8000 Series

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser MKH 8070 - Long Shotgun Microphone

  Transducer	Symmetrical RF
  Polar Pattern	Lobar
  Frequency Response	45Hz to 20kHz
  Sensitivity	-19dBV/Pa (112mV/Pa)
  Noise	EIN: 8dB (A) (DIN-IEC 651), 21dB (CCIR 268-3)
  Maximum Sound Pressure Level (SPL)	124dB
  Impedance	Nominal: 25Ω Minimum Terminating: 2kΩ
  Output Connectors	1 x XLR (as supplied)
  Pad	No
  Low Frequency Roll-Off	No
  Power Requirements	48V, +/-4V phantom (P48, IEC 61938) 3.3mA current consumption
  Operating Temperature	-14°F to 140°F (-10°C to 60°C)
  Dimensions	Diameter: 0.75" (19mm) Length (Microphone): 17" (432mm) Length (with MZX 8000 Module): 18.3" (465mm)
  Weight	Microphone: 10.6 oz (301g) With MZX 8000 Module: 11.7 oz (331g)

  Box Dimensions (LxWxH)	20.0 x 7.0 x 3.5"

• Sennheiser MZF 8000 Filter Module for MKH 8000 Series

  Low Frequency Cut	-3dB @ 160Hz (Switchable) -3dB @ 16Hz (Fixed)
  Pad	-10dB (Switchable)
  Impedance	50 Ohms
  EIN	1dBA @ 0dB 4dBA @ -10dB
  Input Voltage	14dBV @ 0dB 9dBV @ -10dB
  Output Voltage	14dBV @ 0dB -1dBV @ -10dB
  Power	44-52V Phantom
  Operating Temperature	-10°C to 60°C
  Dimensions (LxDiameter)	1.1 x 0.7" (29 x 19mm)
  Weight	0.9 oz (26g)

  Box Dimensions (LxWxH)	6.0 x 4.4 x 1.6"
