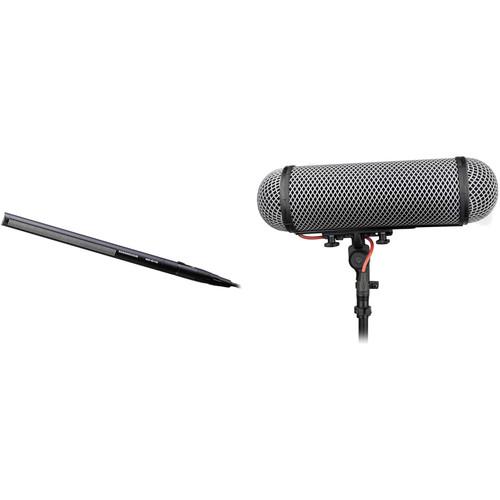

User Manual for Sennheiser MKH416 Shotgun Microphone Kit with Rycote Windshield Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH416 Shotgun Microphone Kit with
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH416 Shotgun Microphone Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Sennheiser MKH416 Shotgun Microphone with a Rycote Windshield to create a professional film and video audio recording system with protection from shock, vibration, and extreme wind noise. Designed for recording audio in film, radio, and television the MKH416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
This Windshield is intended for use with the Sennheiser MKH416 and is a complete modular windshield system including a suspension mount, a windjammer, a windshield, cables, and other essentials. This windshield is a suitable solution for anyone who does not already own a suspension mount or windjammer. - Sennheiser MKH-416 Short Shotgun Interference Tube Microphone Designed for recording audio in film, radio, and television the MKH 416 from Sennheiser is a short shotgun interference microphone optimized for outdoor applications. It offers excellent directional control in a compact design with high consonant articulation and rejection of feedback. The unit is highly immune to humidity because of its RF condenser design. It operates as a hypercardioid at low and medium frequencies with a lobar pattern above 2 kHz.
- Pressure gradient receiver with short interference tube
- Employs RF-technology to control residual microphone noise. Optimizing the transducer's acoustic impedance results in a further improvement in low noise performance
- The RF-design yields low noise levels and high immunity to humidity and moisture
- The comparatively low RF-voltage across the elements of the transducer also eliminates arcing and DC-bias creeping currents
- Hypercardioid at low and medium frequency, above 2 kHz approaches lobar pattern
- Very low inherent self-noise
- Transformerless and fully floating balanced output
- Rugged, suitable for adverse climatic conditions
- Matt black all-metal body
UPC: 615104015111 - Rycote Windshield Kit for Sennheiser MKH416 & Other Select Shotgun Microphones This Windshield Kit from Rycote is intended for use with the Sennheiser MKH416 and other select shotgun microphones. It can be used with a Schoeps CMIT5U or a Rode NTG3 shotgun microphone and is a complete modular windshield system including a suspension mount, a windjammer, a windshield, cables, and other essentials. This kit is a suitable solution for anyone who does not already own a suspension mount or windjammer.
- Compatible Microphones
- The Windshield Kit 416, optimized for the Sennheiser MKH416, is also fully compatible with other top shotgun microphones, such as the Schoeps CMIT 5U, DPA 4017B, Sanken CS-3e and CS-2, Neumann KMR 81i, and Rode NTG3
- Fits Like a Glove
- The 14.5" basket of the Windshield Kit 416 perfectly ensconces the Sennheiser MKH416 and other compatible shotgun microphones, as does the included shock mount
- Lyre Microphone Isolation
- A 72-shore Lyre suspension system isolates the microphone; this, in conjunction with the included and captive cable, minimizes handling noise
- RF-Shielded XLR
- This kit includes the Rycote 90° Shortie XLR inside the basket, which sports a built-in RF Shield to aid in facilitating clean audio capture from condenser microphones in dirty RF environments
- Included Windjammer
- The included Windjammer facilitates wind attenuation while preserving transparent audio transmission
- Boom Adapter and XLR Holder
- An included adapter attaches to boompoles via industry standard female 3/8" UNC brass thread attachment, while an offset Cyclone Series XLR holder sits outside the shield to hold the tail of the XLR cable firmly in place
In the Box - MKH-416 Short Shotgun Interference Tube Microphone srfestrtvybetfce
- MZW-415 - Foam Windscreen
- MZQ100 Quick Release for K3U, MD409 and MKH-416
- Case
- Limited 1-Year Warranty
- Rycote - Windshield Kit for Sennheiser MKH416 & Other Select Shotgun Microphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH416 Shotgun Microphone Kit with Rycote Windshield in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser MKH-416 Short Shotgun Interference Tube Microphone
| Transducer | Pressure Gradient/Interference Receiver Condenser | | Polar Pattern | Low, Mid: Hypercardioid Above 2 kHz: Lobar | | Frequency Response | 40 to 20,000 Hz | | Dynamic Range (Typical) | 117 dB | | Signal-to-Noise Ratio | 81 dB | | Maximum Input Sound Level | 130 dB (@ 1 KHz)
Sensitivity 25 mV/Pa +/- 1dB | | Power Requirements | Phantom Power 48 V (± 12 v) | | Output Impedance | Nominal Impedance: 25 Ohms
Minimum Terminating Impedance: 800 Ohms | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Film, Radio and Television, Especially for Outside Broadcast Applications. | | Dimensions (L x Diam) | 9.84 x 0.74" / 250 x 19 mm | | Weight | 5.82 oz / 175 g | | | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.6" | - Rycote Windshield Kit for Sennheiser MKH416 & Other Select Shotgun Microphones
| Outer Diameter | 4.5" / 11.4 cm | | Length | 14.5" / 36.8 cm | | | | Box Dimensions (LxWxH) | 19.1 x 8.1 x 4.4" |
