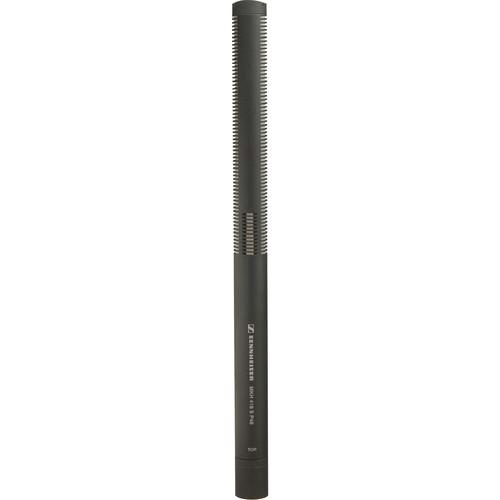

User Manual for Sennheiser MKH418S - Stereo Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser MKH418S - Stereo Shotgun Microphone
- Product category: Shotgun Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Shotgun Microphones
|
User manual for the Sennheiser MKH418S - Stereo Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser MKH 418S professional stereo shotgun microphone incorporates the Mid / Side (M/S) technique, yielding a high degree of directivity and focus while reproducing signals with extreme accuracy to their perspective placement, within the Left / Right Stereo field.The MKH 418S features 2 independent acoustic systems for generating the mid and side signals. The mid (M), or mono signal is generated using an internal shotgun microphone. With its frequency range of 40 Hz to 20 kHz, the shotgun accurately reproduces audio with extreme focus, emphasizing pick up of signals at the direct-axis section (front). The shotgun also rejects signal at the off-axis sections (sides) of the microphone, minimizing noise and further strengthening the pick up area. The Side (S), or stereo signal is generated using a separate, internal microphone system that features a figure-of-eight polar pattern. This system is responsible for reproducing the spacial character needed for accurate placement of signal within the stereo field. It can also handle 130 dB of SPL. The output features a 5-pin XLR male connection, capable of sending the separate signals of each internal microphone system to discrete channels of a console, field mixer, recorder or matrixing system. Each internal microphone requires +48V phantom power, supplied via two Sennheiser MZA 14 P48 battery power supply units, or any mixer capable of supplying at least 2 discrete channels of phantom power. - M/S Technique
- The MKH 418S incorporates the Mid / Side (M/S) technique, yielding a high degree of directivity and focus while reproducing signals with extreme accuracy to their perspective placement.
- Incorporates Dual Microphones
- An internal shotgun microphone is used to capture the "mid" signal, a separate element with a figure-of-eight polar pattern is integrated for the "side" signal.
- Dual Channel Output
- 5-pin XLR male output is capable of sending signals of each internal microphone system to two discrete channels of a console, field mixer, recorder or matrixing system.
UPC: 615104052840 In the Box Sennheiser MKH418S - M/S Stereo Shotgun Microphone Limited 1-Year Warranty User Manual PDF 1.4mbudsrseeycrszvwzacwasdbzcfdwrcy Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MKH418S - Stereo Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser MKH 418-S Specs | Transducer | M: Pressure gradient / interference tube receiver
S: Pressure gradient receiver | | Polar Pattern | M: Super-cardioid / lobar
S: Figure-of-eight | | Frequency Response | 40 Hz to 20 kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | Equivalent Noise Level
M: 14dB-A / 26dB-CCIR
S: 22dB-A / 34dB-CCIR | | Maximum Input Sound Level | 130 dB SPL (63 Pa) | | Power Requirements | +48 V +/- 4 V / 2 x 2.3 mA | | Output Impedance | < 25 Ohms (@ 1000 Hz)
Min. Load Impedance: 1 kOhms | | Output Connectors | 5-pin XLR, male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 11.02 x .75" / 280 x 19 mm (Length x Diameter) | | Weight | 7.8 oz (220 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.9" |
