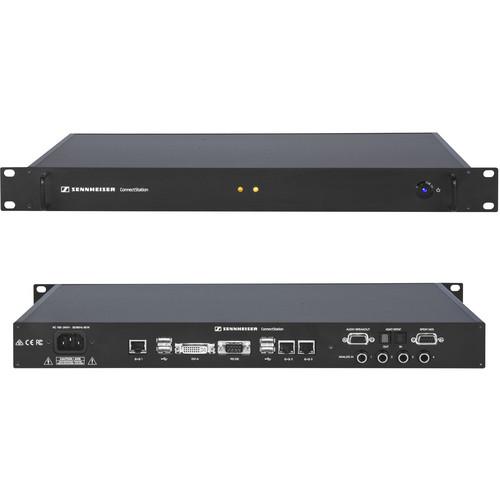

User Manual for Sennheiser MobileConnect Wi-Fi-Based Low-Latency Multi-Channel Audio-Transmission System Click to enlarge the picture
Contents of the user manual for the Sennheiser MobileConnect Wi-Fi-Based Low-Latency Multi-Channel Audio-Transmission
- Product category: Components & Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Components & Accessories
|
User manual for the Sennheiser MobileConnect Wi-Fi-Based Low-Latency Multi-Channel Audio-Transmission contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description - Emotions, accessibly: MobileConnect @ Ernst Deutsch Theatre
The MobileConnect Wi-Fi-Based Low-Latency Multi-Channel Audio-Transmission System from Sennheiser is for streaming audio content from a wide range of audio mixing devices to mobile devices running the Sennheiser MobileConnect app. It can be used as a personal hearing assistant by streaming audio to audiences via their smartphones, and is effective in applications for live theater, operas, houses of worship, language translations, and more.The system is based on the bring-your-own-device (BYOD) principle, which allows users to use their own devices on the MobileConnect Wi-Fi network. Download the free app for iOS or Android devices, select the MobileConnect network, start the App and choose the channel. You can modify sound intuitively with the Personal Hearing Assistant feature.MobileConnect consists of a ConnectStation central unit for transmitting multi-channel audio and the Ruckus ZoneFlex 7372 Wi-Fi Router. It includes a power supply cable and a cable set for connecting the unit to the audio source. In addition, the required MobileConnect app is available for Android and iOS devices running iOS 6.0 or higher. - Personal Hearing Assistant
- The personal hearing assistant allows for truly intuitive sound adjustments. The audio signal can be adjusted easily according to individual hearing needs - not only the volume of the audio signal but also more sophisticated sound parameters that affect speech intelligibility
- Fast Installation
- It integrates easily into any existing audio infrastructure and can be installed within a day. Simply link the ConnectStation to your existing audio system and pair it with the MobileConnect network Wi-Fi Access Point - then, you're all set
- Quickly Amortized
- Benefit from the Bring-Your-Own-Device culture: MobileConnect requires neither maintenance nor operational costs, which means a lower total cost of ownership and faster return on investment. Save yourself the effort of device handling, headphone hygiene, or battery management
- Streams Four Audio Channels
- MobileConnect streams four audio channels via standard Wi-Fi protocol onto smartphones in the audience. All sound parameters can be individually adjusted in the MobileConnect App: The personal hearing assistant, developed in cooperation with Fraunhofer Institute for Digital Media Technology, provides intuitive sound-customization tools
- Totally Inclusive
- MobileConnect accesses new audiences and opens access to arts and culture for everyone. The system can be used for hearing support, audio description, or language translation, thus addressing more and larger target groups than audio systems that exclusively focus on hearing support
In the Box Sennheiser MobileConnect Wi-Fi-Based Low-Latency Multi-Channel Audio-Transmission System ConnectStation CS1-M Central Unit 5.9' Power Supply Cable Ruckus ZoneFlex 7372 Access Point Ruckus Power Supply Adapter for Access Point 15-Pin D-Sub to 4x RCA Analog, 2 x MIDI, 1 x Phone 9-Pin D-Sub to 2 x RCA Digital (SPDIF) Cables 6.6' Toslink Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser MobileConnect Wi-Fi-Based Low-Latency Multi-Channel Audio-Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 506735 Specs | | | Temperature Range | 41 to 113°F (5.0 to 45° (operation)
-4 to 167°F (-20 to 75° (storage) | | Humidity Range | 10% to 90% @ 77°F (25°C) non-condensing (operation)
5% to 95% @ 77°F (25°C) non-condensing (storage) | | Line In | 4 x channels (1/4" mono TRS jack sockets, servo-balanced) | | A/D Resolution | 24-bit | | Signal-to-Noise Ratio | 113 dB RMS unweighted
116 dBA @ 44.1 kHz | | Sampling Rate | 48 kHz | | Total Harmonic Distortion (THD) | < -110 dB, < 0.00032 % | | Total Harmonic Distortion (THD) + N | < -104 dB, < 0.00063 % | | Crosstalk | > 110 dB | | Frequency Response | @ 44.1 kHz, -0.5 dB: 5 Hz to 21.5 kHz | | Input Line Connector | Phono unbalanced | | Input Impedance | 10 kOhms | | Input Sensitivity | Low gain, +4 dBu, -10 dBV | | Input Level | 0 dBFS @ Low Gain: +19 dBu
0 dBFS @ + 4 dBu: +13 dBu
0 dBFS @ -10 dBV: +2 dBV | | Power Consumption | 60 W nominal | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 19 x 9.5 x 1.7" (48 x 24 x 4.3 cm) | | Weight | 6.39 lb (2.9 kg) | | | | Power Supply | DC input: 12 VDC, 1.0 A | | Power Consumption | @ DC Input:
Idle: 1.5 W
Typical: 3.5 W
Peak: 8 W | | Temperature Range (Operation) | 32 to 122°F (0.0 to 50°C) | | Humidity Range Operating | 10% to 95% non-condensing | | Ethernet Ports | 1 x auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45 | | RF Power Output | 26 dBm for 2.4 GHz
24 dBm for 5 GHz
(aggregated) maximum power varies by country | | Frequency Bands | IEEE 802.11 b/g/n: 2.4 to 2.484 GHz
IEEE 802.11a/n: 5.15 to 5.25 GHz;
5.25 to 5.35 GHz; 5.47 to 5.725 GHz; 5.725 to 5.85 GHz | | Operating Channels | US/Canada: 1-11, Europe (ETSI X30): 1-13, Japan X41: 1-13
5 GHz Channels: Country-dependent | | Certifications | U.S., Europe, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, New Zealand, Peru, Philippines, Saudi Arabia, Singapore, South Africa, Taiwan, Thailand, UAE, Vietnam WEEE/RoHS compliance
EN-60601-1-2 (Medical)
Wi-Fi Alliance
EN50121-1 Railway EMC
EN50121-4 Railway Immunity
IEC 61373 Railway Shock & Vibration | | Lock | Hidden Latching Mechanism:
Kensington lock hole
T-bar Torx
Bracket (900108-0000) Torx screw and padlock | | Dimensions (L x W x D) | 6.2 x 6.2 x 1.57" (16 x 16 x 4.0 cm) | | Weight | 0.77 lb (0.35 kg) |
